Chapter 3: BIOS Utilities

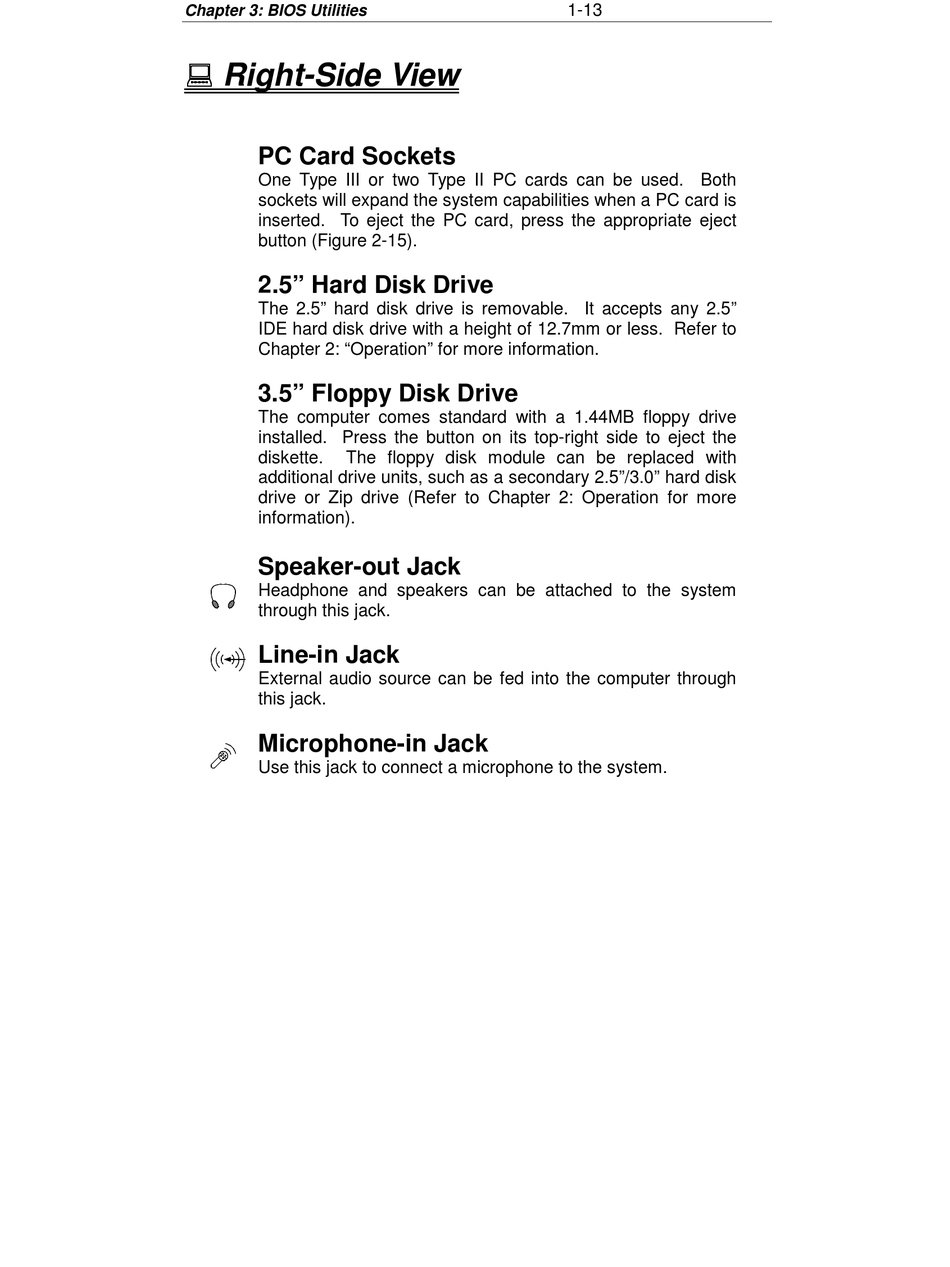

! ! ! ! Right-Side View

PC Card Sockets

One Type III or two Type II PC cards can be used. Both
sockets will expand the system capabilities when a PC card is
inserted. To eject the PC card, press the appropriate eject
button (Figure 2-15).
2.5" Hard Disk Drive
The 2.5" hard disk drive is removable. It accepts any 2.5"
IDE hard disk drive with a height of 12.7mm or less. Refer to
Chapter 2: "Operation" for more information.
3.5" Floppy Disk Drive
The computer comes standard with a 1.44MB floppy drive
installed. Press the button on its top-right side to eject the
diskette. The floppy disk module can be replaced with
additional drive units, such as a secondary 2.5"/3.0" hard disk
drive or Zip drive (Refer to Chapter 2: Operation for more
information).
Speaker-out Jack
Headphone and speakers can be attached to the system
through this jack.
Line-in Jack
External audio source can be fed into the computer through
this jack.
Microphone-in Jack
Use this jack to connect a microphone to the system.
1-13
