[ 4 ] Replacing the white sheet (copyboard screen) and the sheet backup board

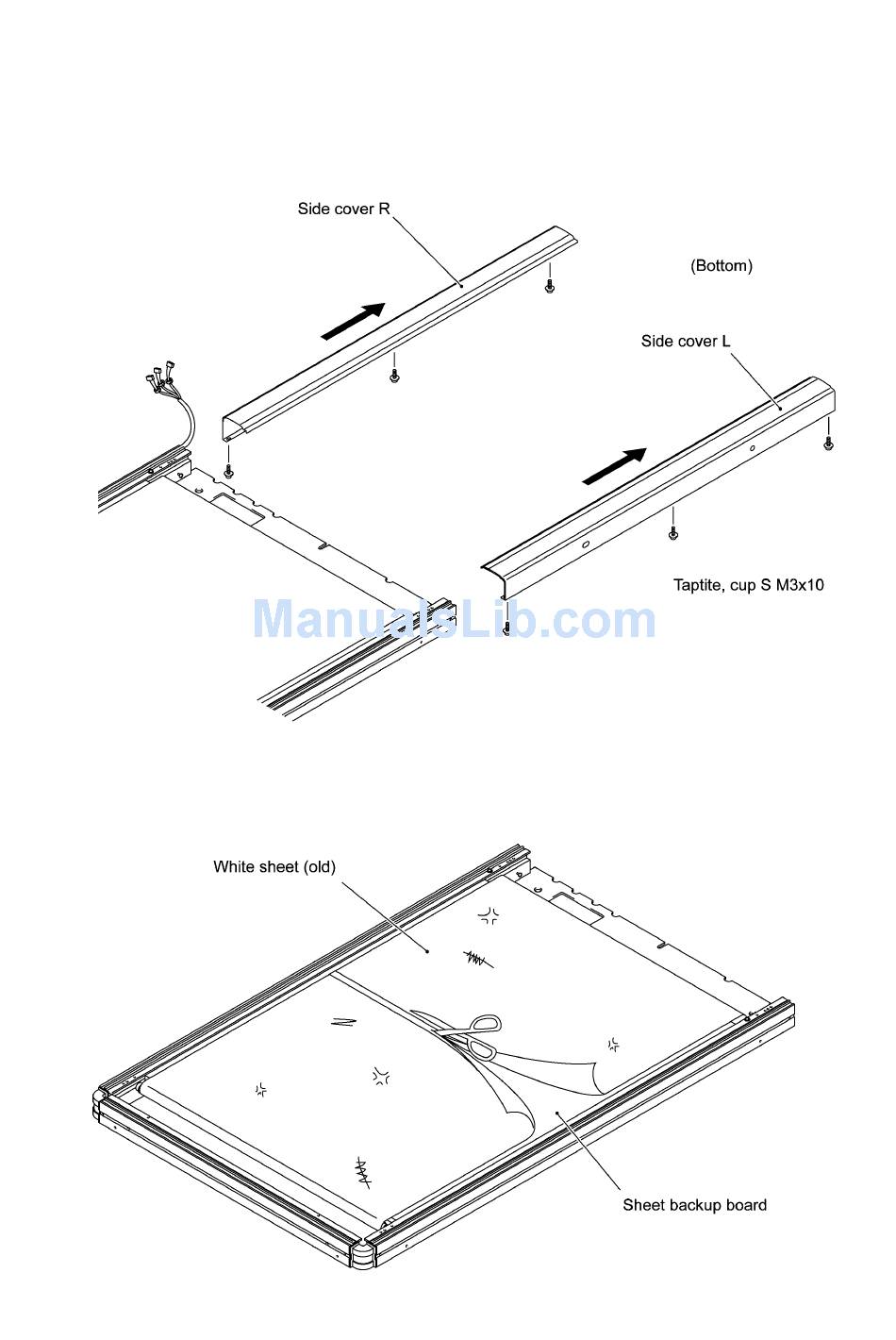

(1) Remove the six screws (three cup S taptite screws, M3x10 from each side cover) from the
side covers and slide them as shown below.
NOTE: When sliding the side covers, take care not to damage the CIS harnesses.
(2) Cut the white sheet to be replaced with scissors.
NOTE: Do not use a cutter or knife which could damage the sheet backup board.
III - 35
