[ 2 ] Removing the relay PCB and printer-copyboard interface cable

Removing the lower cover, corner covers, CIS protector, and lower support frame

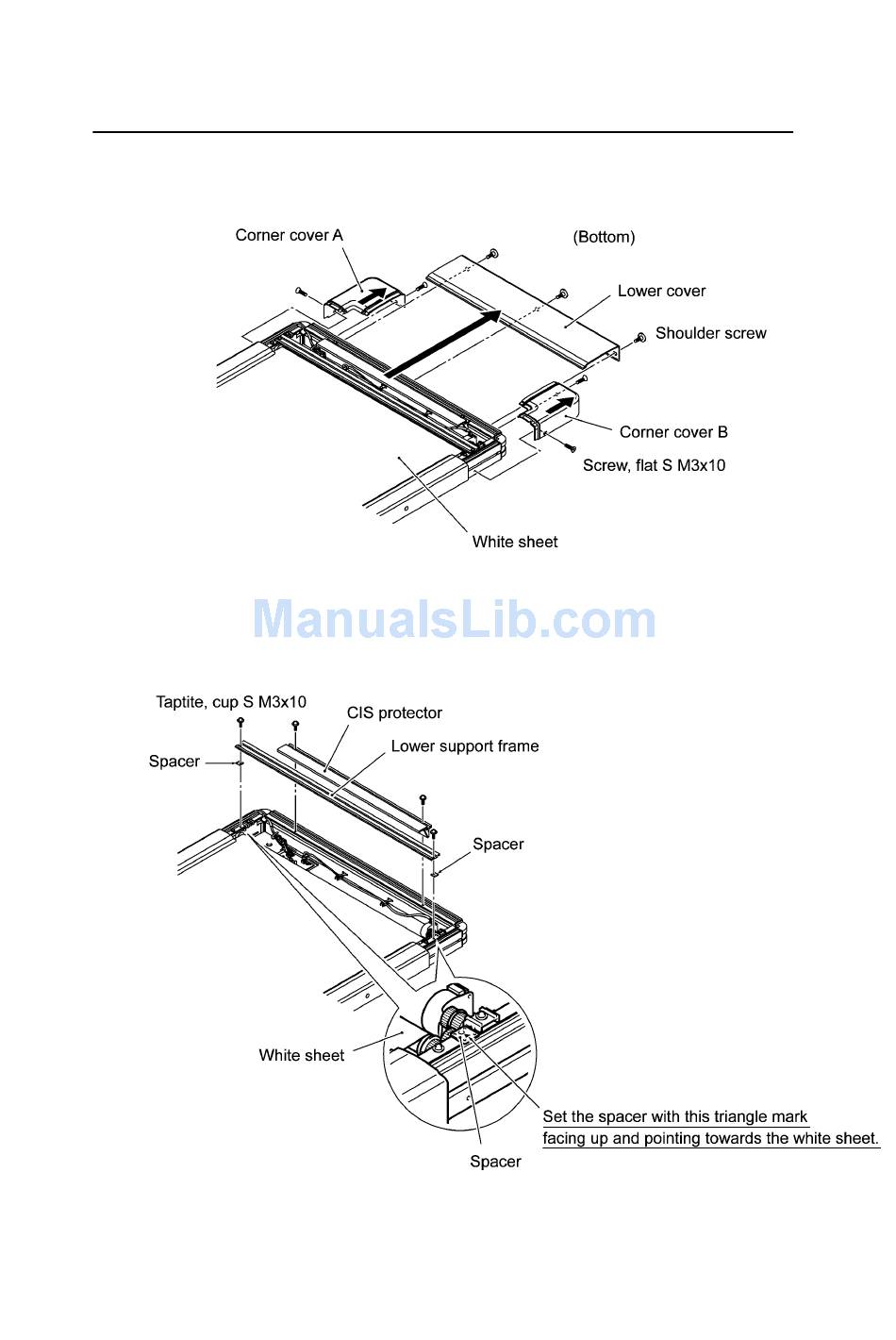

(1) Remove the lower cover (three shoulder screws).
(2) Remove the corner covers A and B (two flat S screws, M3x10 from each cover).
(3) Remove the CIS protector (two cup S taptite screws, M3x10).
(4) Remove the lower support frame (two cup S taptite screws, M3x10).
