n n Reassembling notes
• Before reinstalling the platen frames to the paper compartment cover, assemble the platen
frame R (or L), paper stopper, and stopper spring together as follows:

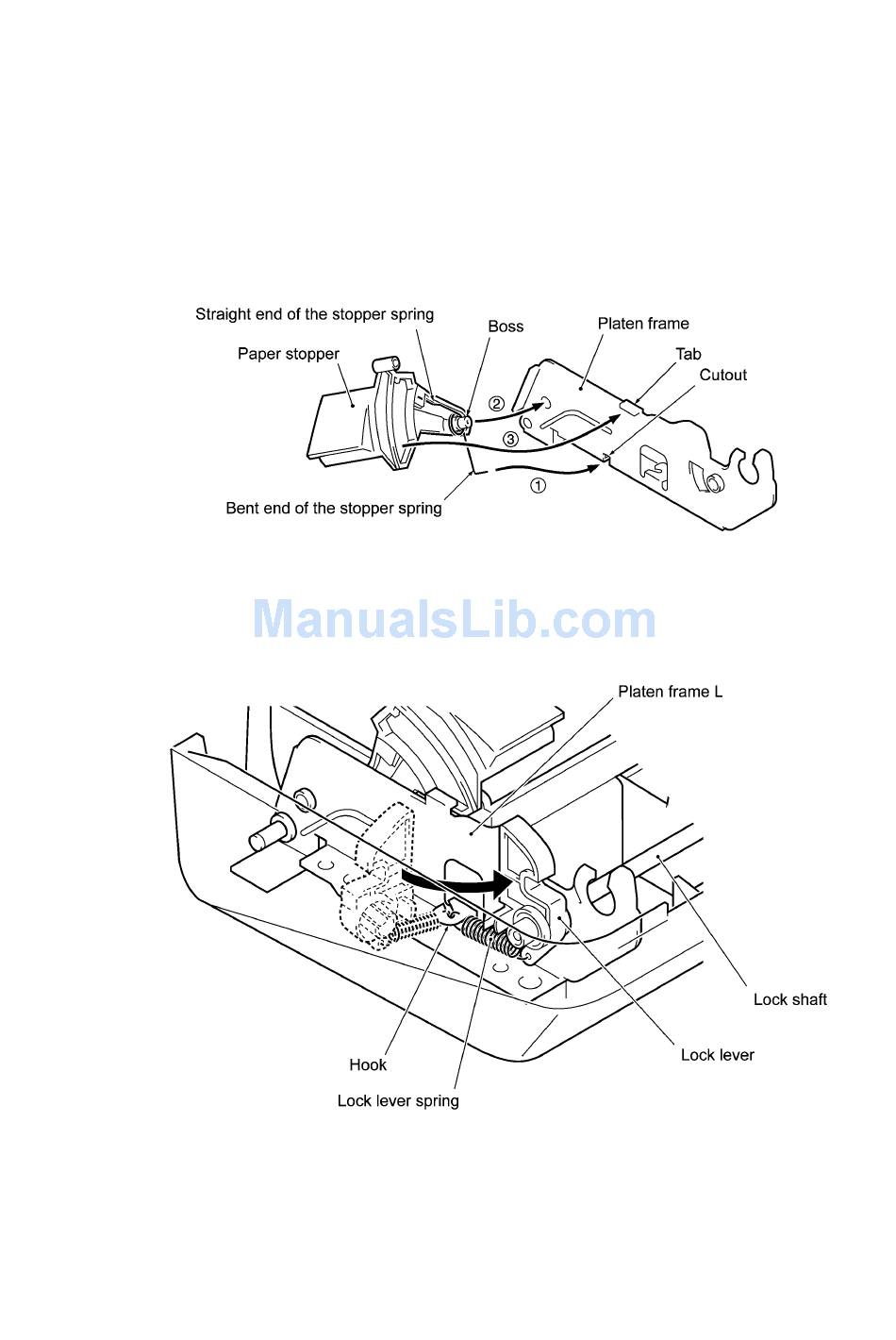

As illustrated below, first fit the stopper spring over the boss of the paper stopper. Insert the
bent end of the stopper spring into the cutout of the platen frame (arrow
paper stopper into the hole of the platen frame (arrow
tab of the platen frame (arrow
For the platen frame R, set the hinge spring on it as shown on the previous page.
• When reinstalling the lock levers, first work at the platen frame L. As shown below with dotted
lines, hold the lock lever and then hook the lock lever spring onto the platen frame L. Next,
work the same way at the platen frame R and then snap the lock lever into the platen frame R.
• When fitting the pawled bushing L and bushing R onto the platen shaft, align each guide boss
with the cutout provided in each of the bushings.
ƒ
).
III - 11
•
), fit the boss of the
‚
), and then fit the paper stopper to the
