3.1.1 Disassembly of Printer

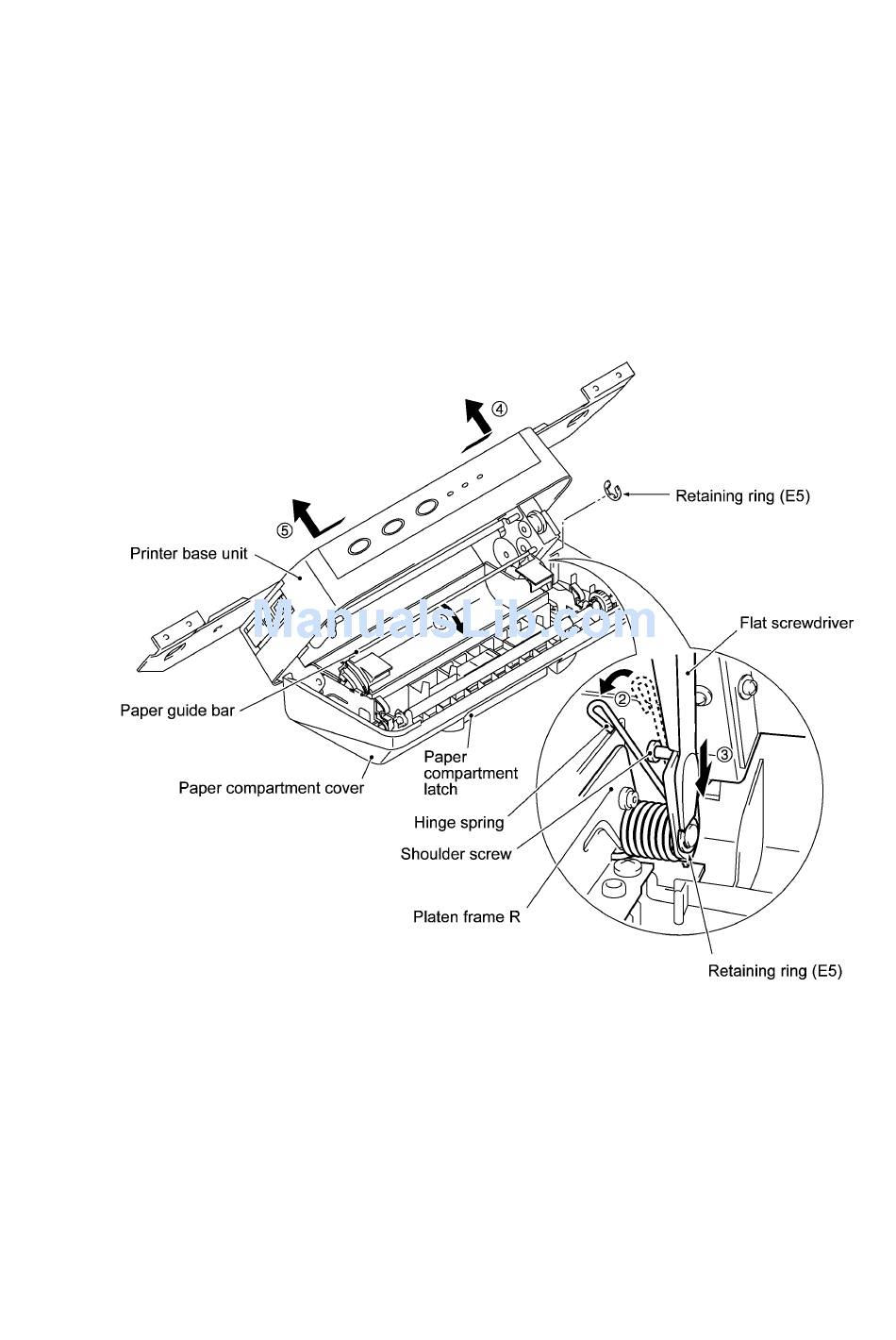

[ 1 ] Separating the paper compartment cover from the printer base unit

(1) Open the paper compartment cover by pulling up its latch.
(2) Pull the paper guide bar in the direction of arrow
shoulder screw (arrow
(3) Remove the retaining ring (E5) (arrow
(4) Shift the printer base unit in the direction of arrows
the platen frame R and L, respectively.
).
ƒ
) from the shaft of the platen frame R.
III - 5
and unhook the hinge spring from the
...
and
to release it from the shafts of
