Power Supply Removal

CAUTION: The power supply may be hot.
1. Turn off the printer and disconnect the power cord at both ends.
2. Remove the top cover. Go to
page 4-8.
3. Remove the print unit. Go to
page 4-28.

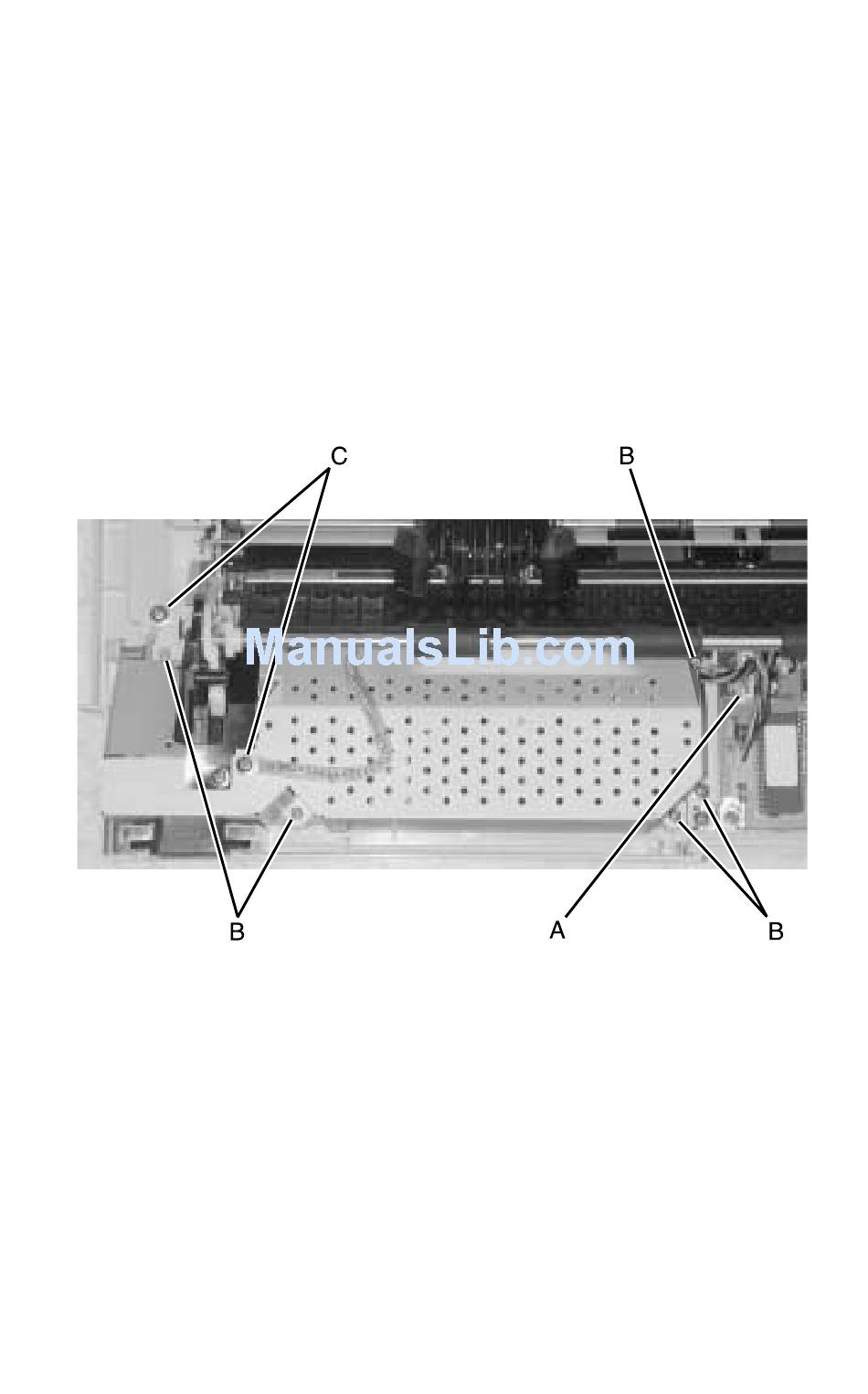

4. Disconnect the power supply cable [A].
5. Remove the five screws [B] securing the power supply to the
bottom cover. Take care not to lose the ground clips which must
be replaced between the ground plate and the board.
6. Remove the two ground wire screws [C].
7. Remove the power supply.
