24xx
Options Removals
Auto Sheet Feeder Gears Removal
1. Remove the right cover.

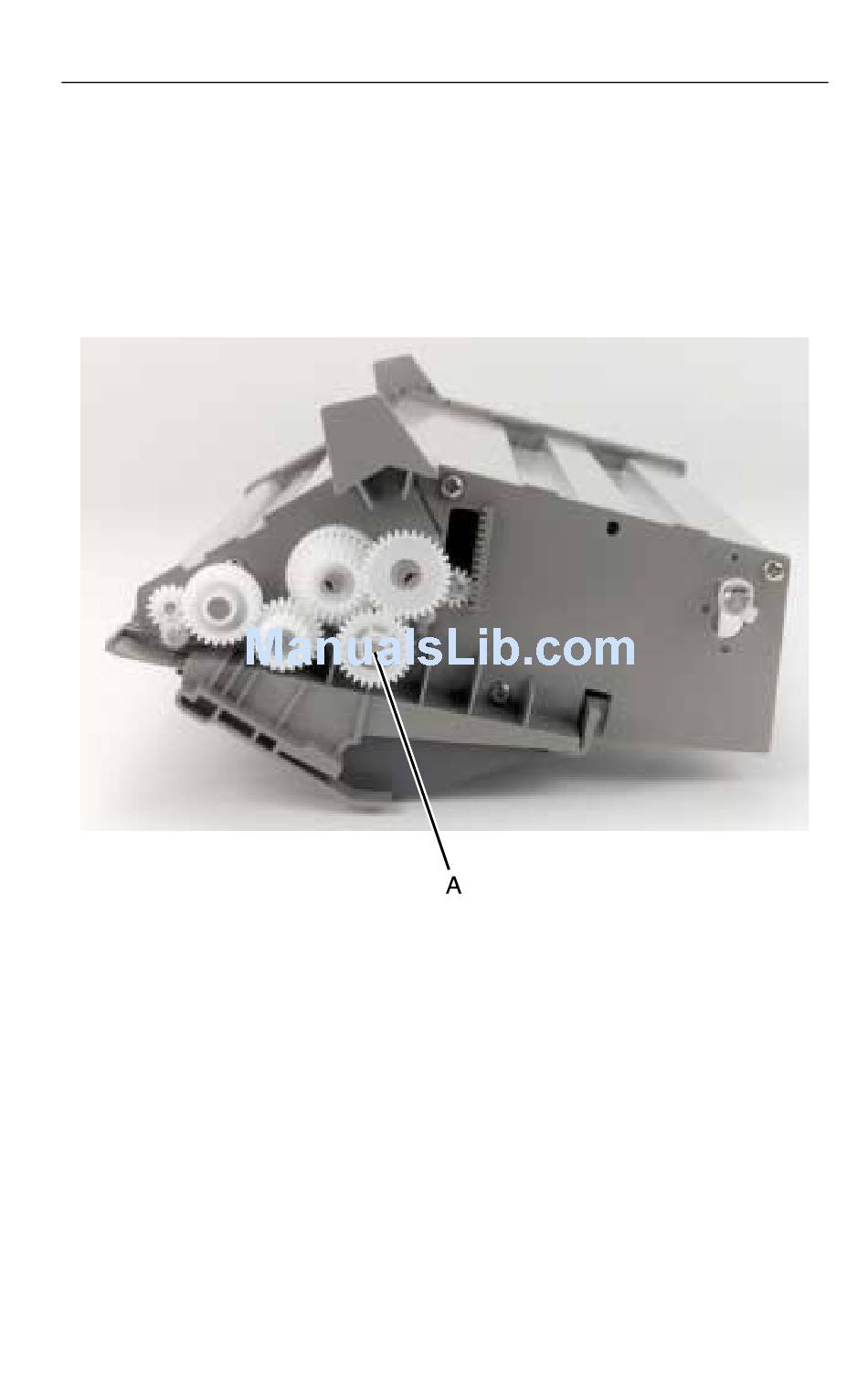

2. Release the joint gear latch [A] and remove the joint gear.
3. Release the idler gear latch and remove the idler gear.
4. Release the pick-up gear latch and remove the gear.
5. Release the combination lock mechanism latch.
6. Remove the tension plate on the locker cam and remove the
cam.
7. Release the lift gear latch and remove the gear.
Repair Information
4-47
