Covers, Front Removal

1. Rotate the front cover out and up about three inches from the
bottom of the printer.
2. Push the front cover up and out of the printer.

Covers, Ribbon Access Removal

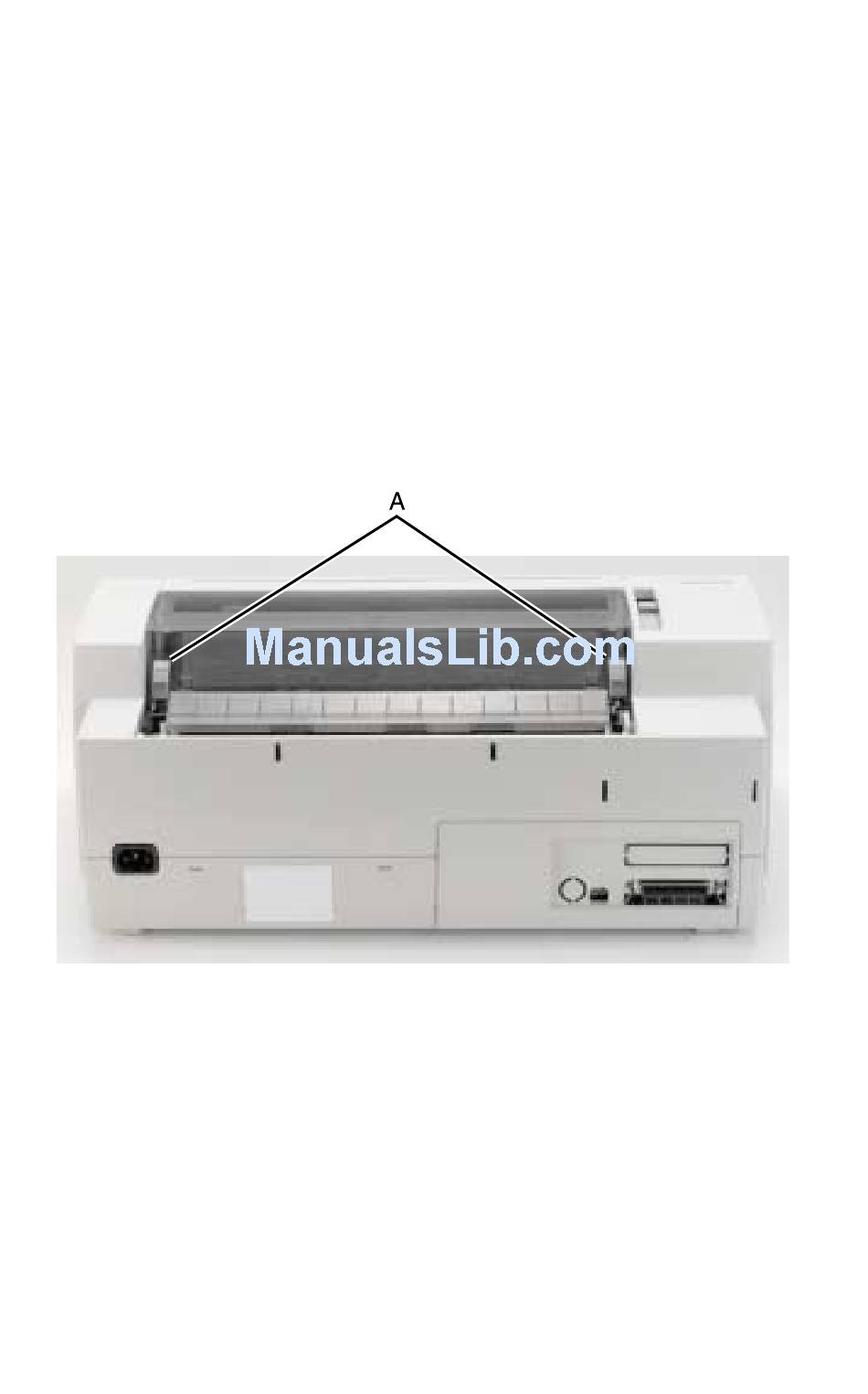

1. Pull both gray spring loaded ribbon access cover release
latches [A], on either side of the ribbon access cover, up toward
the front of the printer.
2. Lift the ribbon access cover up and out of the printer.
Note: When replacing the ribbon access cover, be sure to hook the
front hinge points on either side of the ribbon access cover first and
lower the cover into place. Be sure that both gray spring loaded
ribbon access cover latches snap and lock.
