Auto Sheet Feeder Pick-up Roller Removal
1. Remove the covers and the cut sheet support.

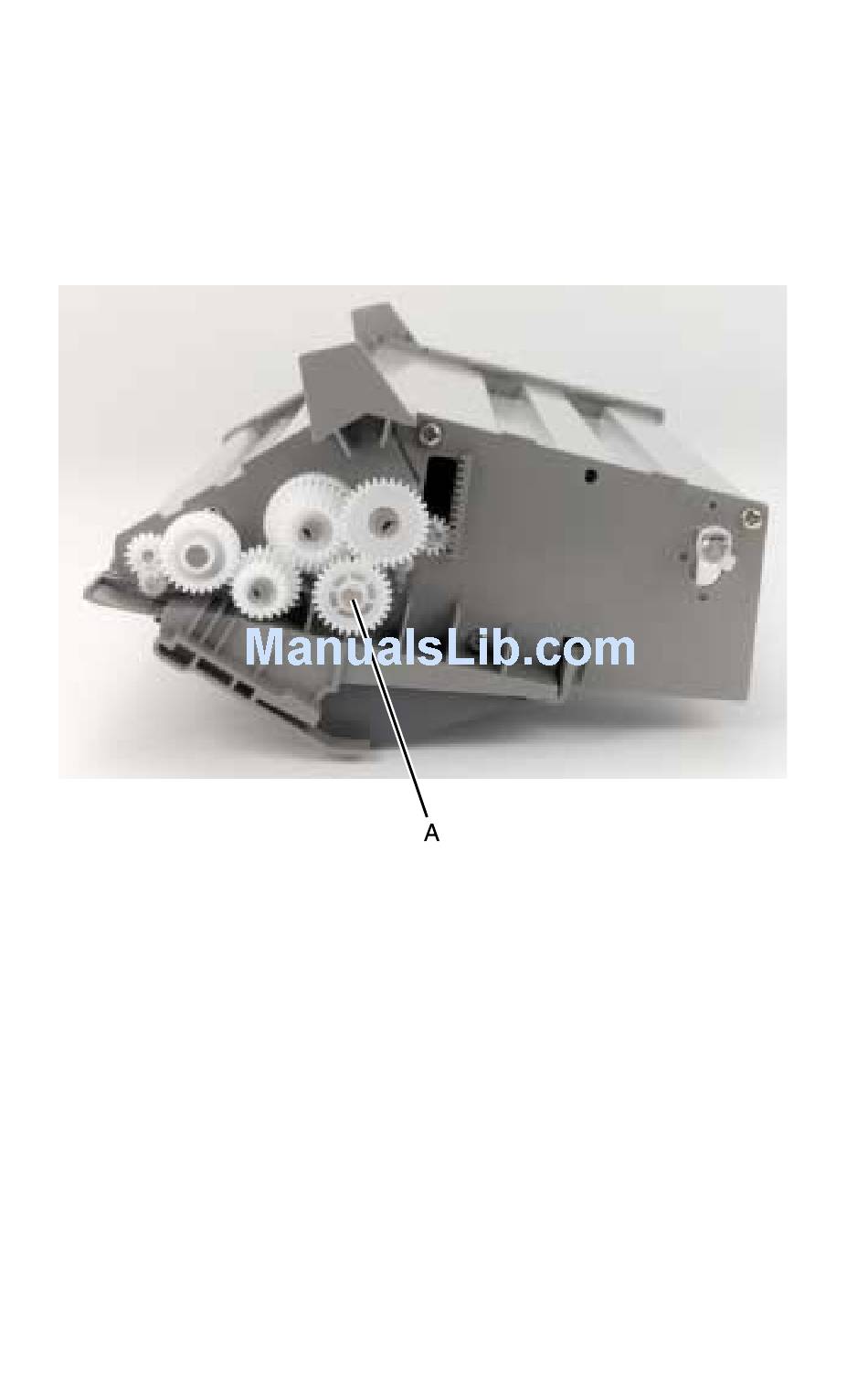

2. Release the joint gear latch [A] and remove the joint gear, idler
gear, and pick-up gear.
3. Remove the left and right roller bushings.
4. Move the pick-up rollers to the ends of the shaft and remove
them.
4-48
Service Manual
