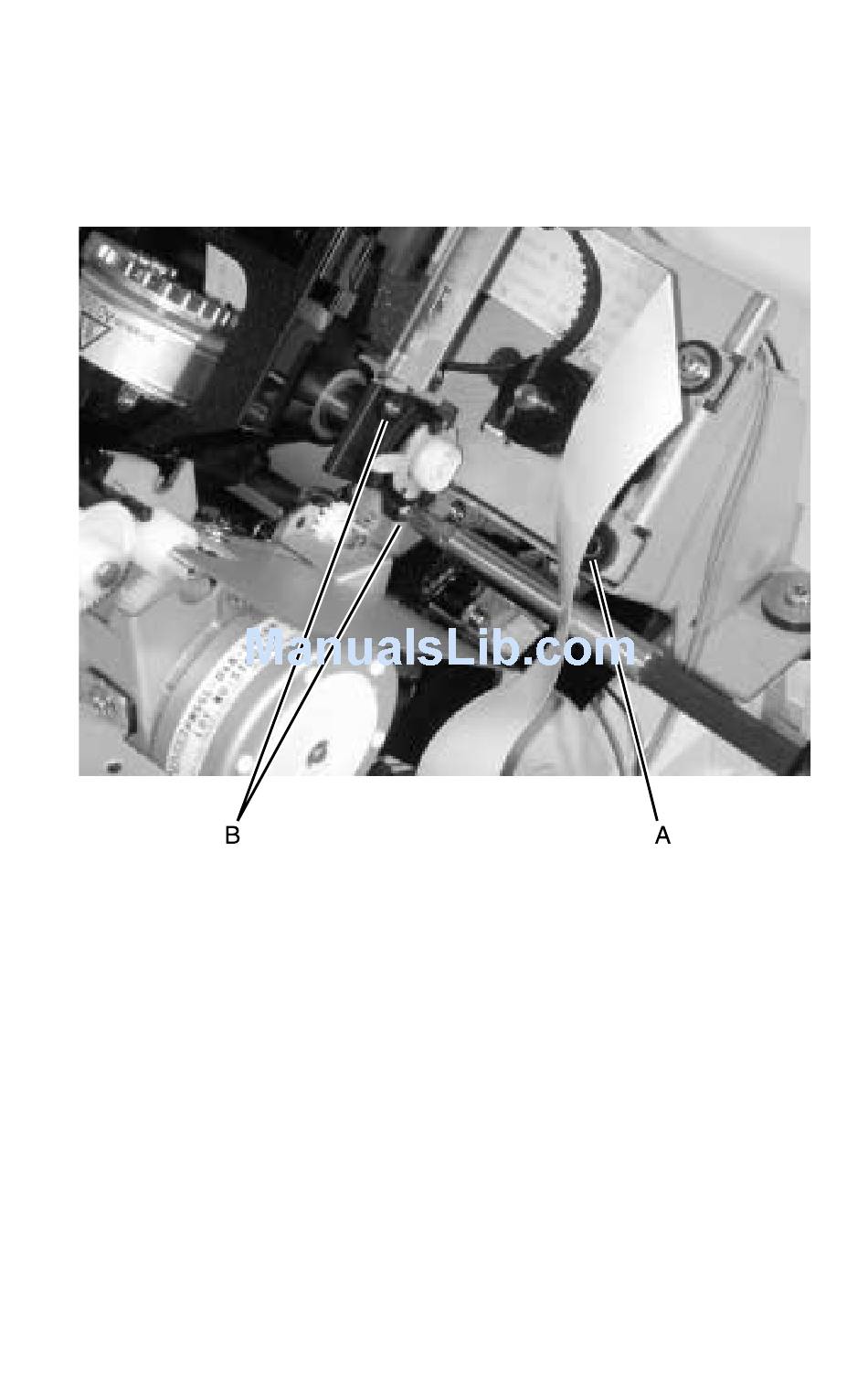

6. Remove the lower carrier motor mount screw [A].
7. Remove the two screws [B] from the carrier shaft bushing
bracket on the left end of the carrier shaft and remove the
bracket.
8. Remove the E-clip from the right side of the carrier shaft.
