Serial Board - Serial Cable (9W & 24W) - Lexmark Forms Printer 2400 Service Manual

2400 series forms printer
Hide thumbs Also See for Forms Printer 2400:
Table of Contents

Advertisement

24xx

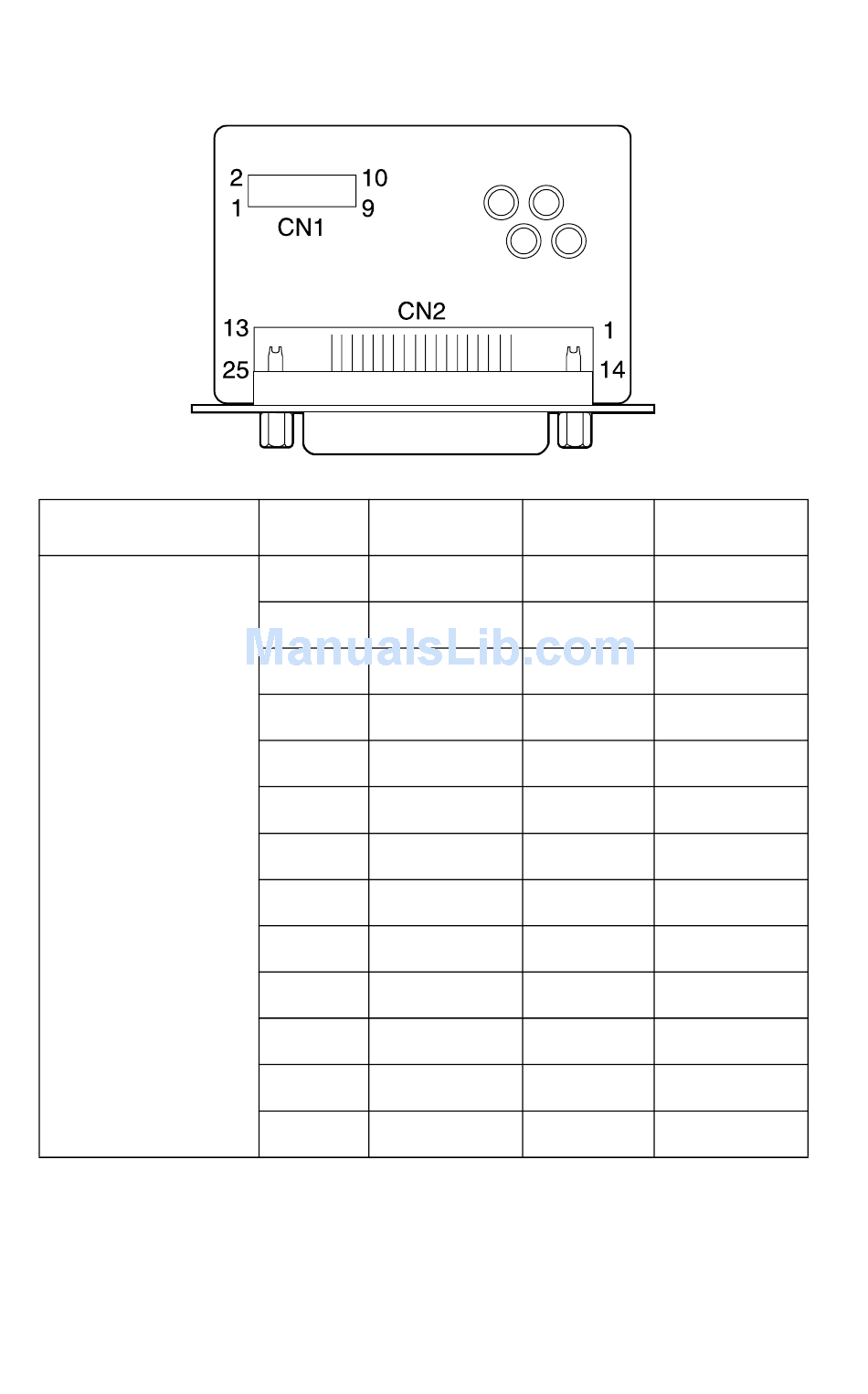

Serial Board - Serial Cable (9w & 24w)
Connector
CN2
5-26
Service Manual
Pin #
Signal
1
Chassis Gnd
2
TXD
3
RXD
4
RTS
5
-CTS
6
DSR
7
Signal Gnd
8
NC
9
NC
10
NC
11
NC
12
NC
Pin #
Signal
13
NC
14
NC
15
NC
16
NC
17
NC
18
NC
19
NC
20
DTR
21
NC
22
NC
23
NC
24
NC
25
NC
