24xx

Gears Removals

Left Side Gears Removal

1. Remove the top cover. Go to
page
4-8.

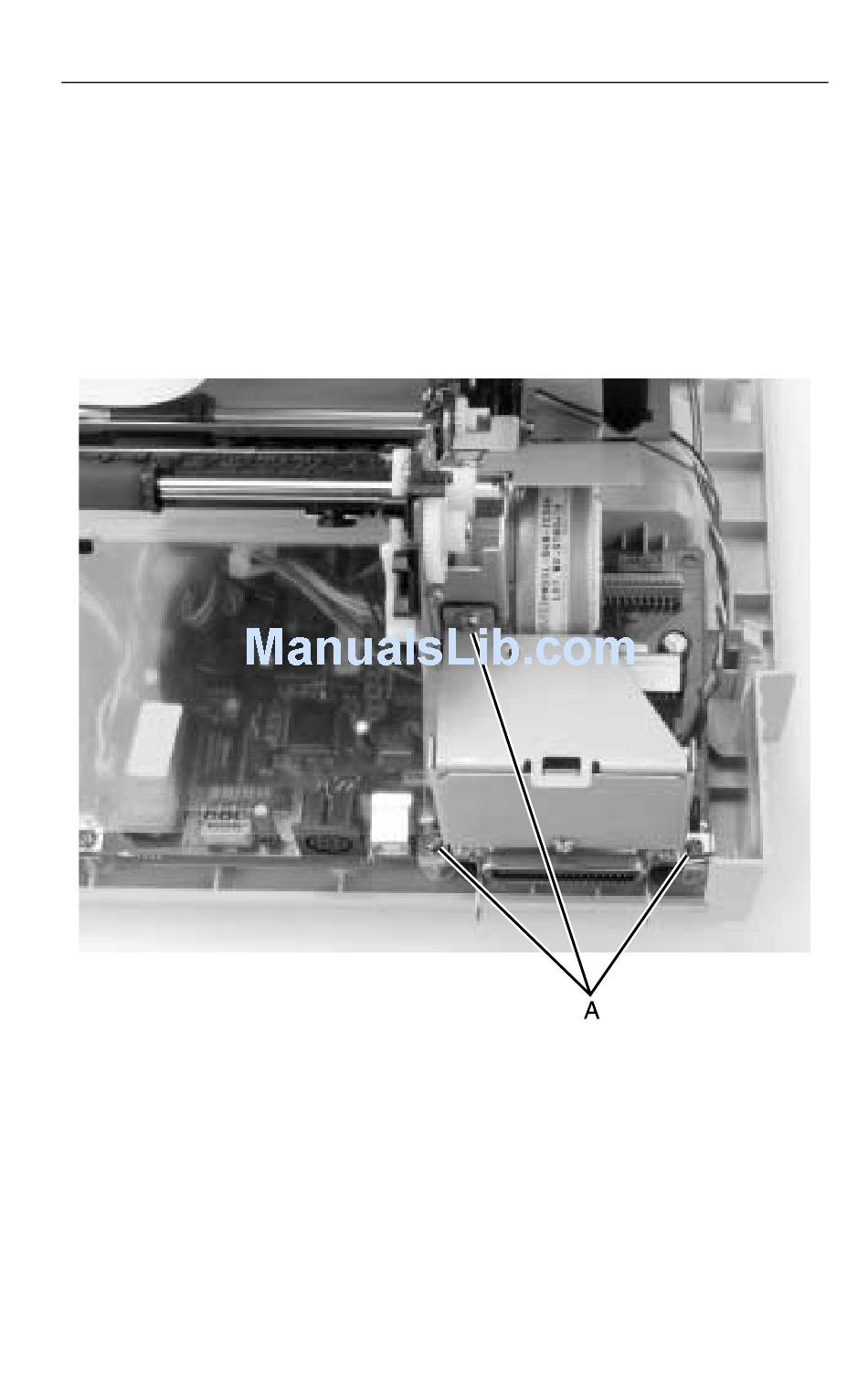

2. Remove the three screws [A] from the serial interface card
bracket.
"Covers, Top Removal" on
Repair Information
4-31
