Right Side Gears, Sub Frame Removal

1. Remove the top cover. Go to
page 4-8.

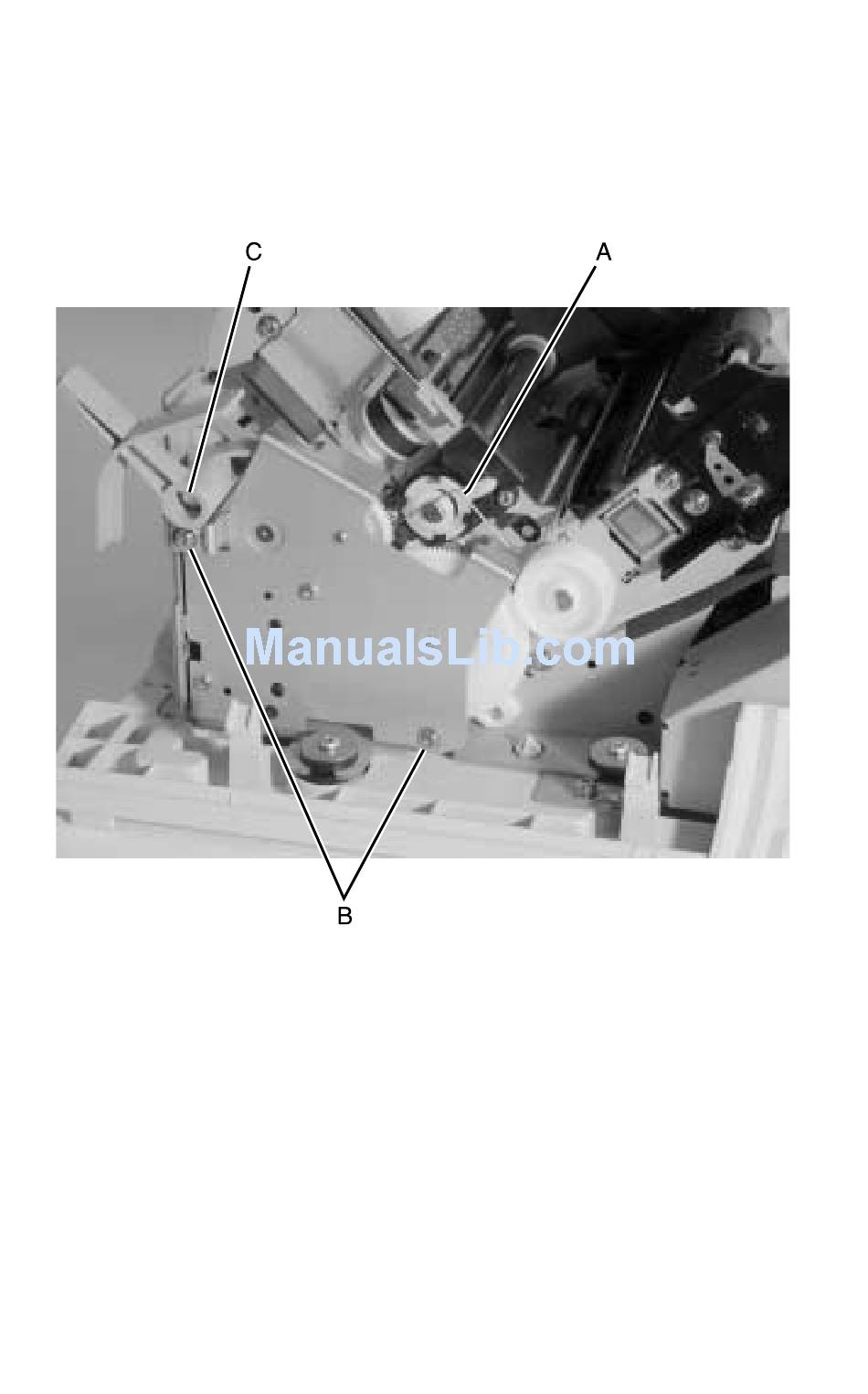

2. Unhook the wire retainer [A] from the carrier shaft.
3. Remove the two screws and washers [B] from the sub frame.
4. Remove the paper select lever [C].
4-34
Service Manual
"Covers, Top Removal" on
