5060-00x
Multipurpose feeder (MPF) removal
See
"Multipurpose Feeder (MPF)" on page 7-21
1.
Open the MPF to the lowest position.
2.

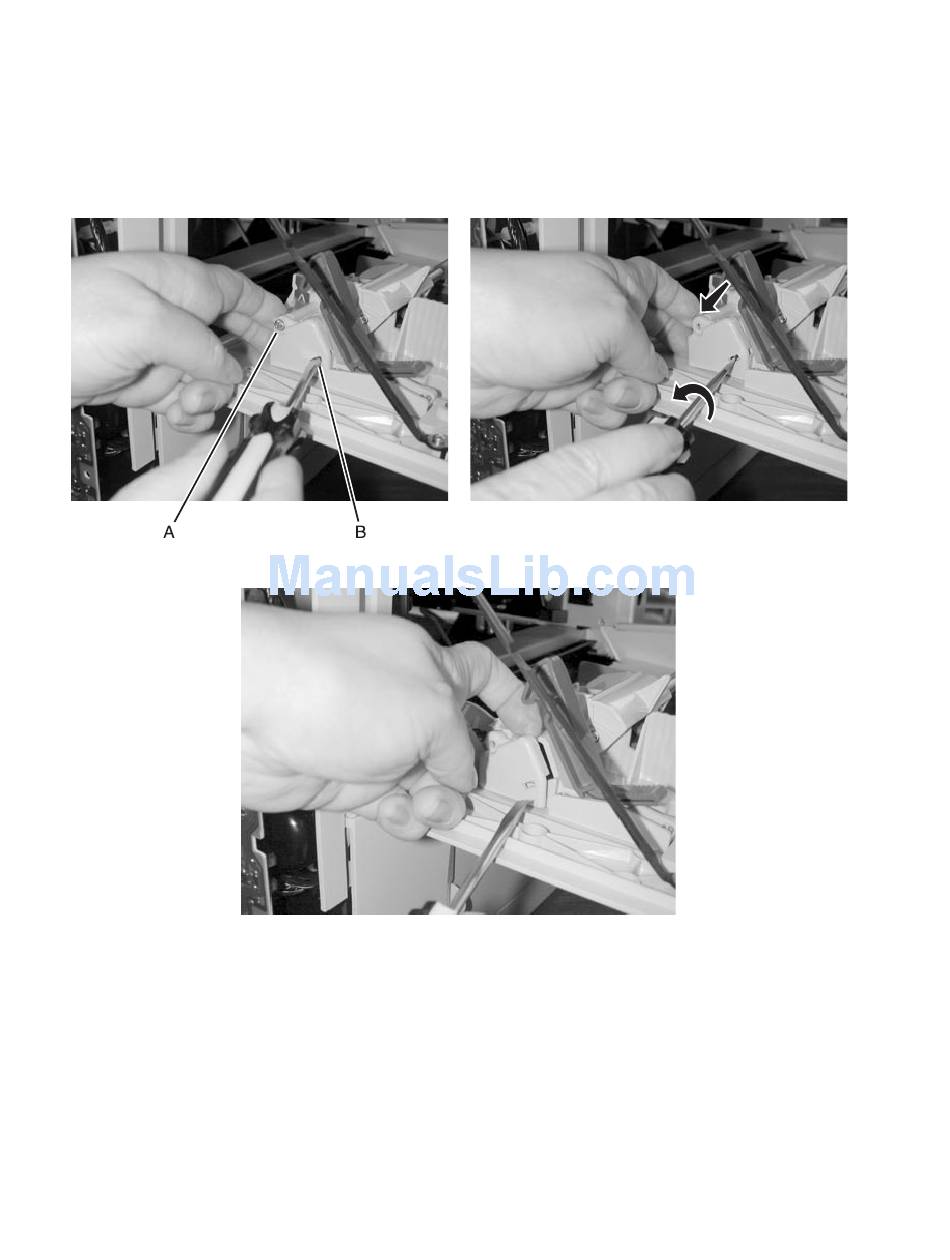

Remove the MPF cable cover screw (A).
3.
Place flatblade screwdriver in the slot (B) on the MPF cable cover and gently pry open the cover.
4-40
Service Manual
for the part number.
