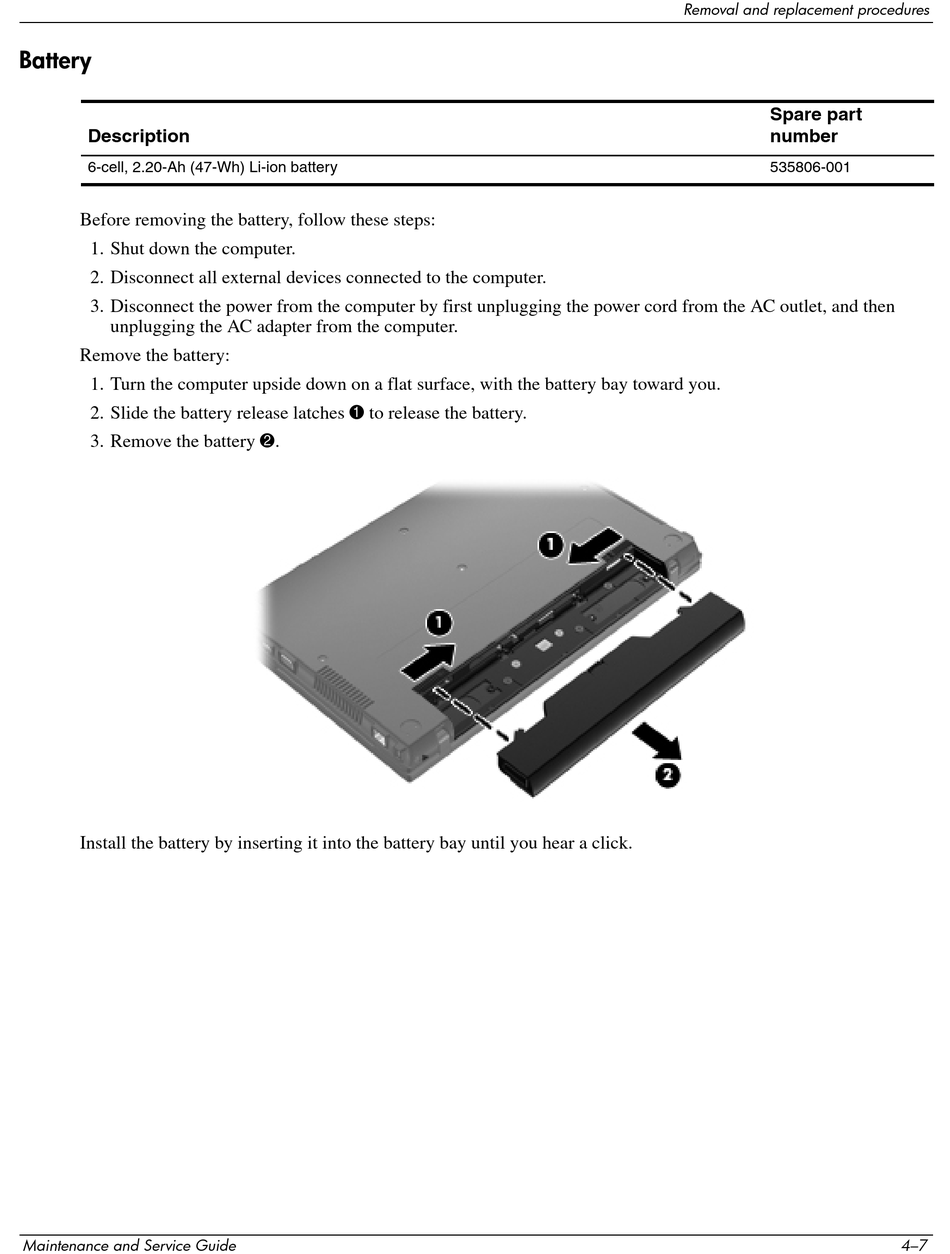

Battery - HP 4410t - Mobile Thin Client Maintenance And Service Manual

Battery

Description
6-cell, 2.20-Ah (47-Wh) Li-ion battery
Before removing the battery, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
Remove the battery:
1. Turn the computer upside down on a flat surface, with the battery bay toward you.
2. Slide the battery release latches 1 to release the battery.
3. Remove the battery 2.
Install the battery by inserting it into the battery bay until you hear a click.
Maintenance and Service Guide
Removal and replacement procedures
Spare part
number
535806-001
4–7
