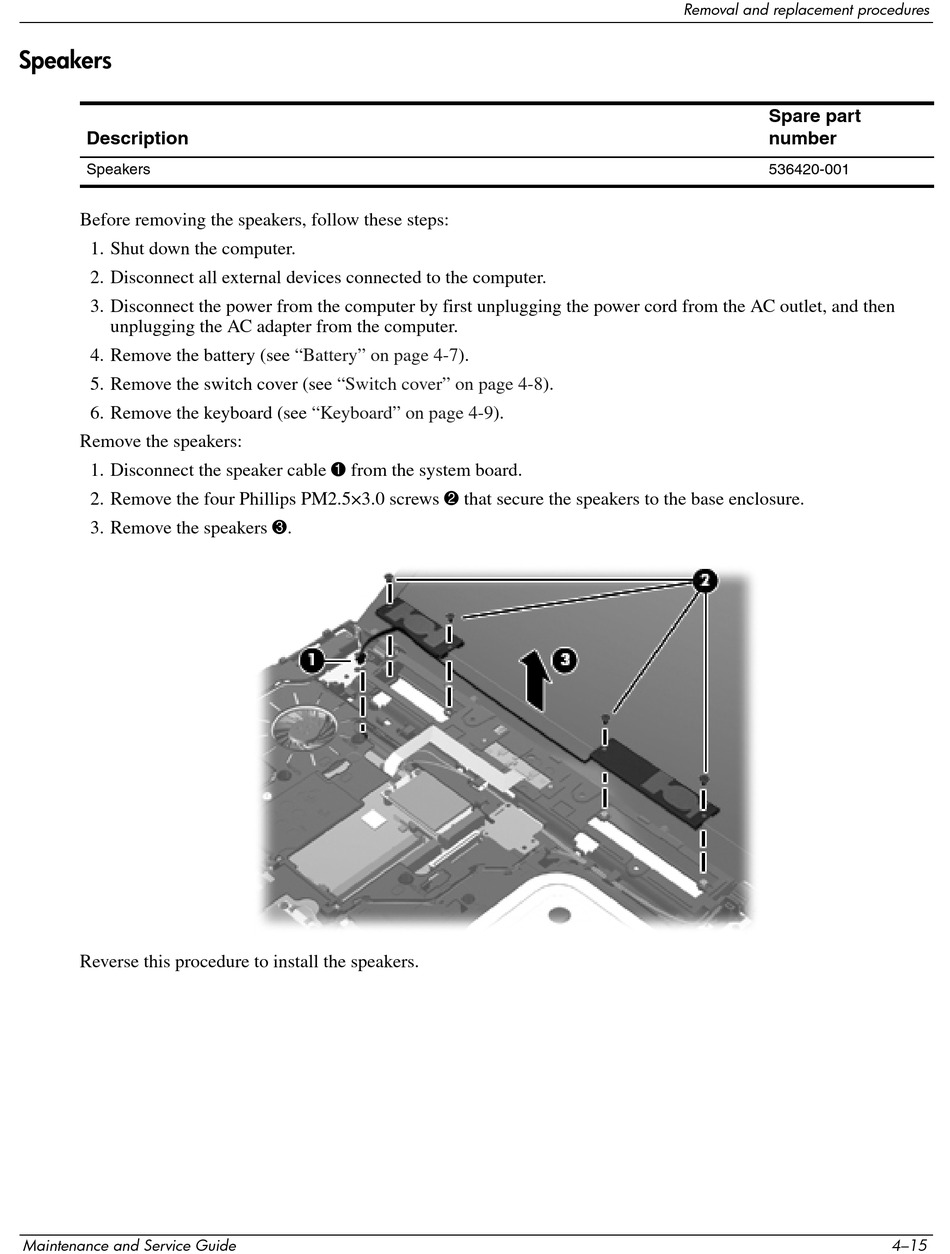

Speakers

Description
Speakers
Before removing the speakers, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the switch cover (see
6. Remove the keyboard (see
Remove the speakers:
1. Disconnect the speaker cable 1 from the system board.
2. Remove the four Phillips PM2.5×3.0 screws 2 that secure the speakers to the base enclosure.
3. Remove the speakers 3.
Reverse this procedure to install the speakers.
Maintenance and Service Guide
"Battery" on page 4-7).
"Switch cover" on page
"Keyboard" on page 4-9).
Removal and replacement procedures
4-8).
Spare part
number
536420-001
4–15
