Removal and replacement procedures

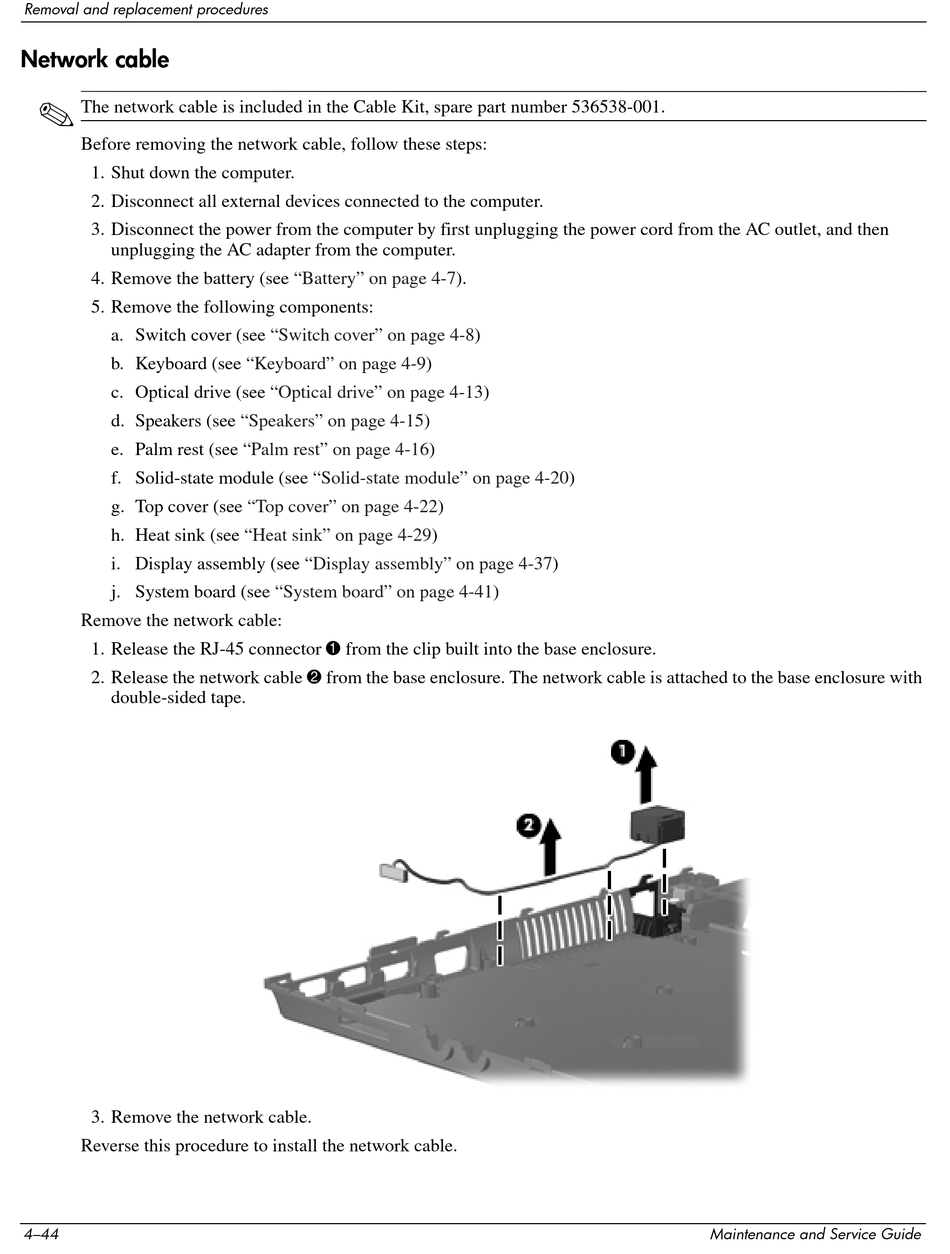

Network cable

✎
The network cable is included in the Cable Kit, spare part number 536538-001.
Before removing the network cable, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a. Switch cover (see
b. Keyboard (see
c. Optical drive (see
d. Speakers (see
e. Palm rest (see
f. Solid-state module (see
g. Top cover (see
h. Heat sink (see
i. Display assembly (see
j. System board (see
Remove the network cable:
1. Release the RJ-45 connector 1 from the clip built into the base enclosure.
2. Release the network cable 2 from the base enclosure. The network cable is attached to the base enclosure with
double-sided tape.
3. Remove the network cable.
Reverse this procedure to install the network cable.
4–44
"Battery" on page
"Switch cover" on page
"Keyboard" on page 4-9)
"Optical drive" on page
"Speakers" on page 4-15)
"Palm rest" on page 4-16)
"Solid-state module" on page
"Top cover" on page 4-22)
"Heat sink" on page 4-29)
"Display assembly" on page
"System board" on page
4-7).
4-8)
4-13)
4-20)
4-37)
4-41)
Maintenance and Service Guide
