Removal and replacement procedures

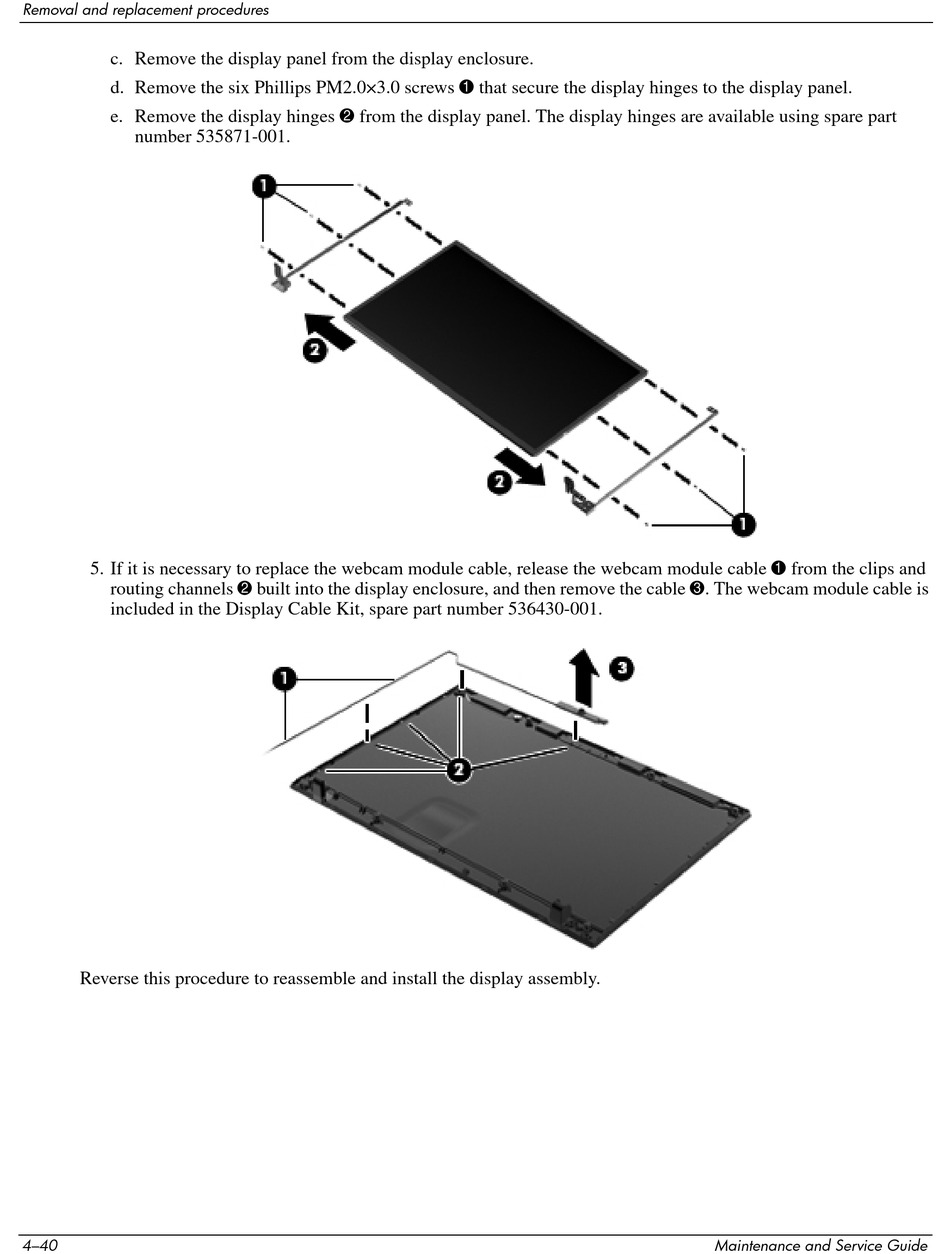

c. Remove the display panel from the display enclosure.
d. Remove the six Phillips PM2.0×3.0 screws 1 that secure the display hinges to the display panel.
e. Remove the display hinges 2 from the display panel. The display hinges are available using spare part
number 535871-001.
5. If it is necessary to replace the webcam module cable, release the webcam module cable 1 from the clips and
routing channels 2 built into the display enclosure, and then remove the cable 3. The webcam module cable is
included in the Display Cable Kit, spare part number 536430-001.
Reverse this procedure to reassemble and install the display assembly.
4–40
Maintenance and Service Guide
