Removal and replacement procedures

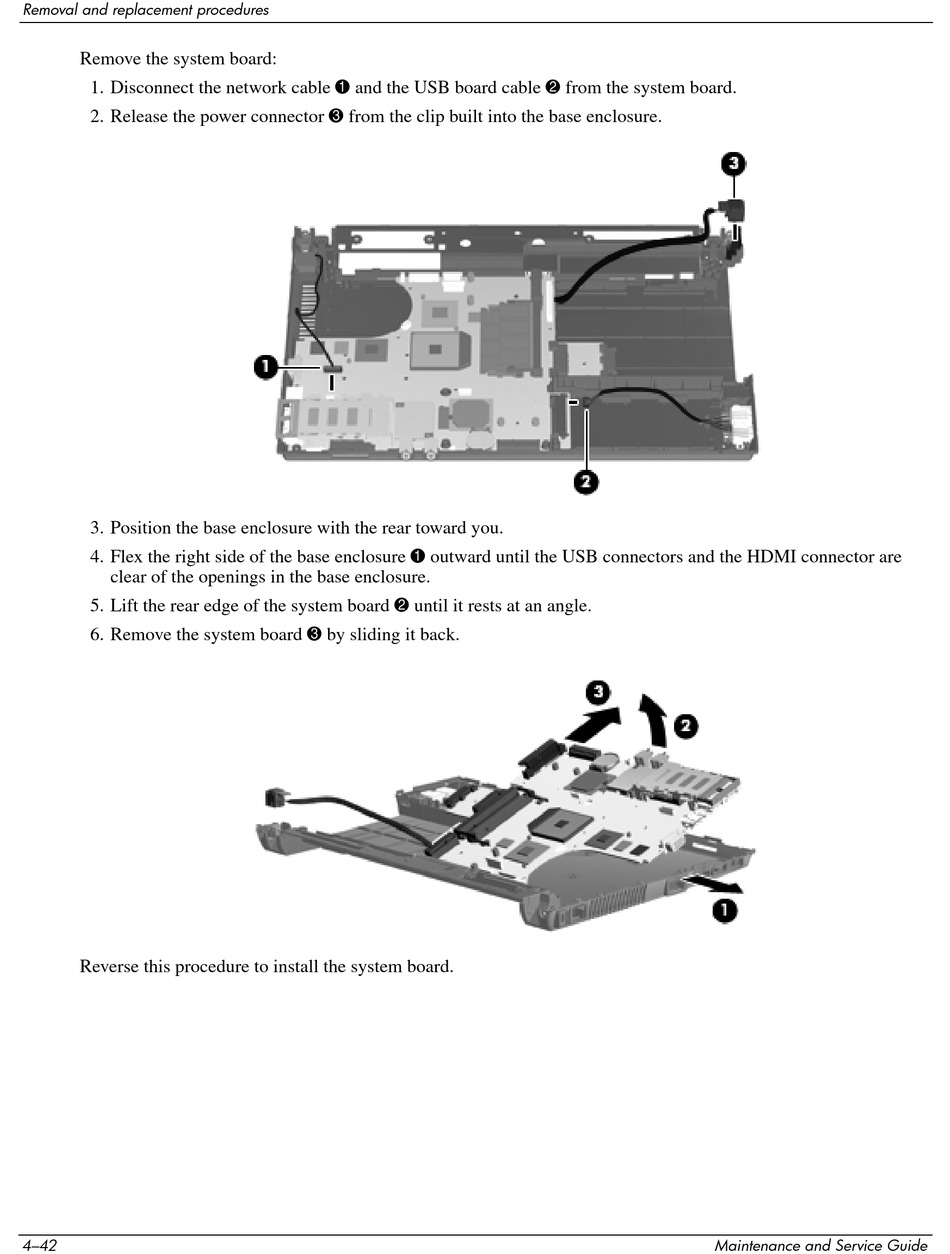

Remove the system board:
1. Disconnect the network cable 1 and the USB board cable 2 from the system board.
2. Release the power connector 3 from the clip built into the base enclosure.
3. Position the base enclosure with the rear toward you.
4. Flex the right side of the base enclosure 1 outward until the USB connectors and the HDMI connector are
clear of the openings in the base enclosure.
5. Lift the rear edge of the system board 2 until it rests at an angle.
6. Remove the system board 3 by sliding it back.
Reverse this procedure to install the system board.
