Solid-State Module - HP 4410t - Mobile Thin Client Maintenance And Service Manual

Removal and replacement procedures

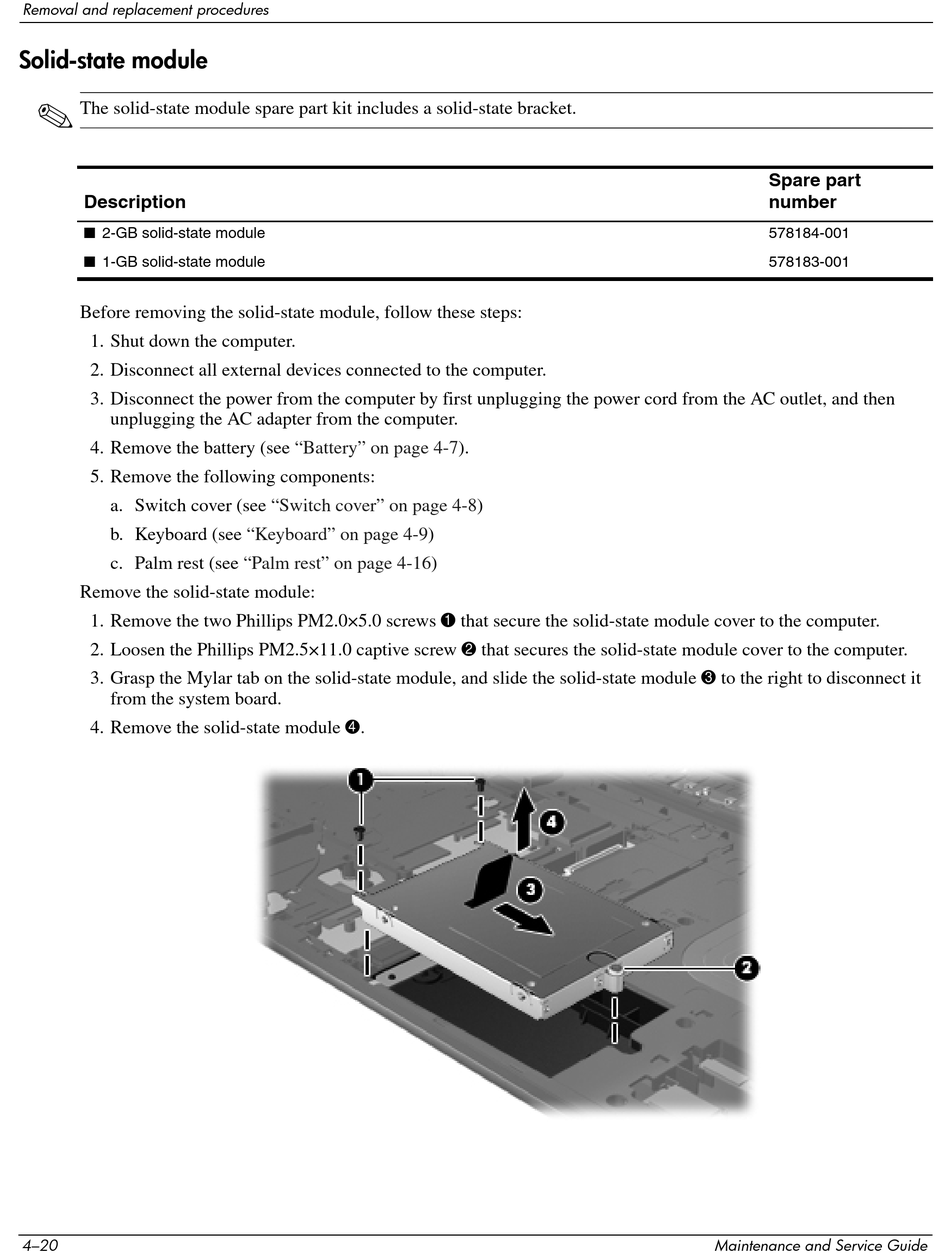

Solid-state module

✎
The solid-state module spare part kit includes a solid-state bracket.
Description
■ 2-GB solid-state module
■ 1-GB solid-state module
Before removing the solid-state module, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a. Switch cover (see
b. Keyboard (see
c. Palm rest (see
Remove the solid-state module:
1. Remove the two Phillips PM2.0×5.0 screws 1 that secure the solid-state module cover to the computer.
2. Loosen the Phillips PM2.5×11.0 captive screw 2 that secures the solid-state module cover to the computer.
3. Grasp the Mylar tab on the solid-state module, and slide the solid-state module 3 to the right to disconnect it
from the system board.
4. Remove the solid-state module 4.
4–20
"Battery" on page
"Switch cover" on page
"Keyboard" on page 4-9)
"Palm rest" on page 4-16)
4-7).
4-8)
Spare part
number
578184-001
578183-001
Maintenance and Service Guide
