Removal and replacement procedures

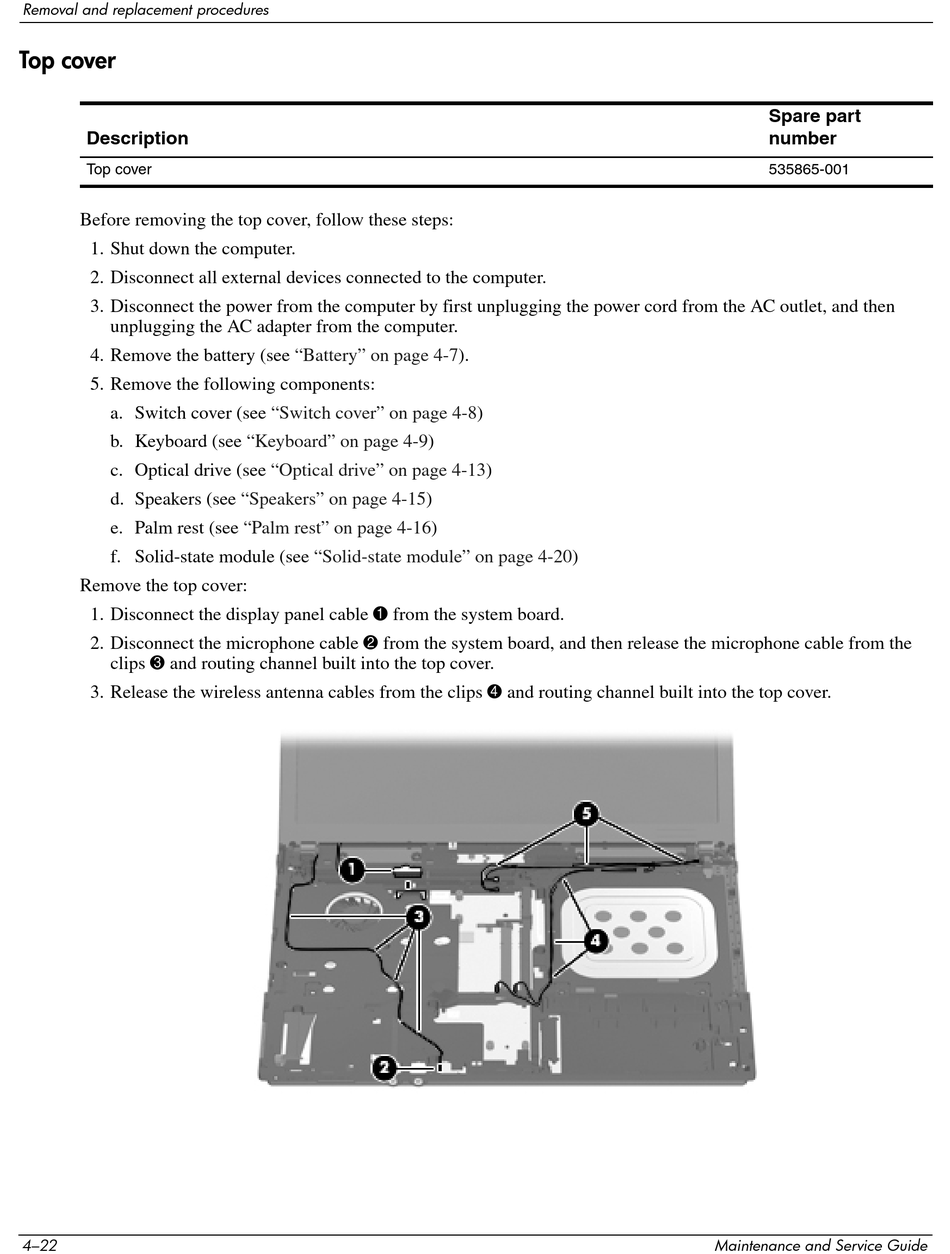

Top cover

Description
Top cover
Before removing the top cover, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a. Switch cover (see
b. Keyboard (see
c. Optical drive (see
d. Speakers (see
e. Palm rest (see
f. Solid-state module (see
Remove the top cover:
1. Disconnect the display panel cable 1 from the system board.
2. Disconnect the microphone cable 2 from the system board, and then release the microphone cable from the
clips 3 and routing channel built into the top cover.
3. Release the wireless antenna cables from the clips 4 and routing channel built into the top cover.
4–22
"Battery" on page
"Switch cover" on page
"Keyboard" on page
4-9)
"Optical drive" on page
"Speakers" on page
4-15)
"Palm rest" on page
4-16)
"Solid-state module" on page
4-7).
4-8)
4-13)
4-20)
Spare part
number
535865-001
Maintenance and Service Guide
