Power connector cable

✎
The power connector cable is included in the Cable Kit, spare part number 536538-001.
Before removing the power connector cable, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a. Switch cover (see
b. Keyboard (see
c. Optical drive (see
d. Speakers (see
e. Palm rest (see
f. Solid-state module (see
g. Top cover (see
h. Heat sink (see
i. Display assembly (see
j. System board (see

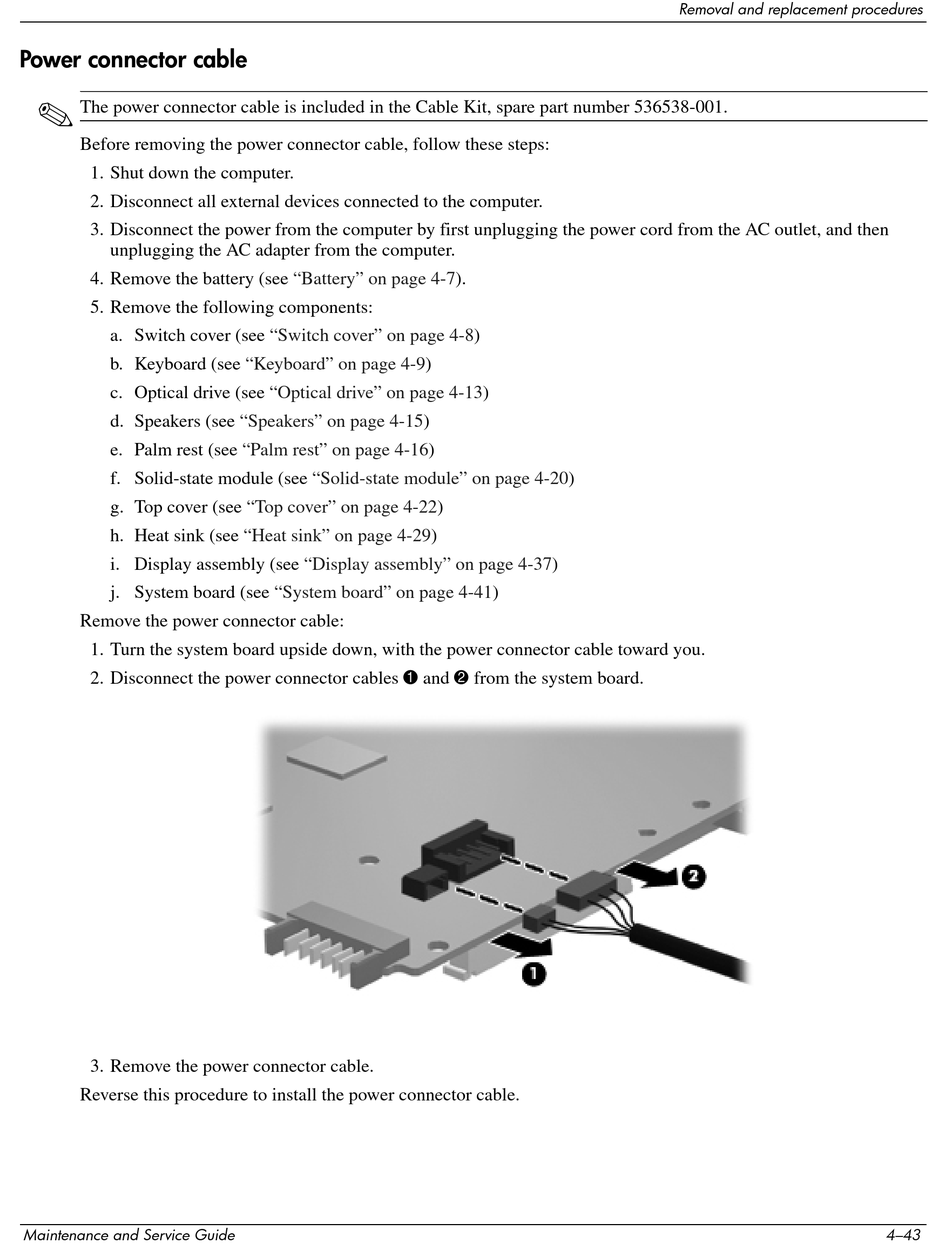

Remove the power connector cable:
1. Turn the system board upside down, with the power connector cable toward you.
2. Disconnect the power connector cables 1 and 2 from the system board.
3. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
