Preparing and Installing the 9A426-01 Module

DIP Switch

An eight-position DIP switch is located on the module's daughterboard as shown

in Figure 2-8. The functions of the switches are listed in Table 2-1.

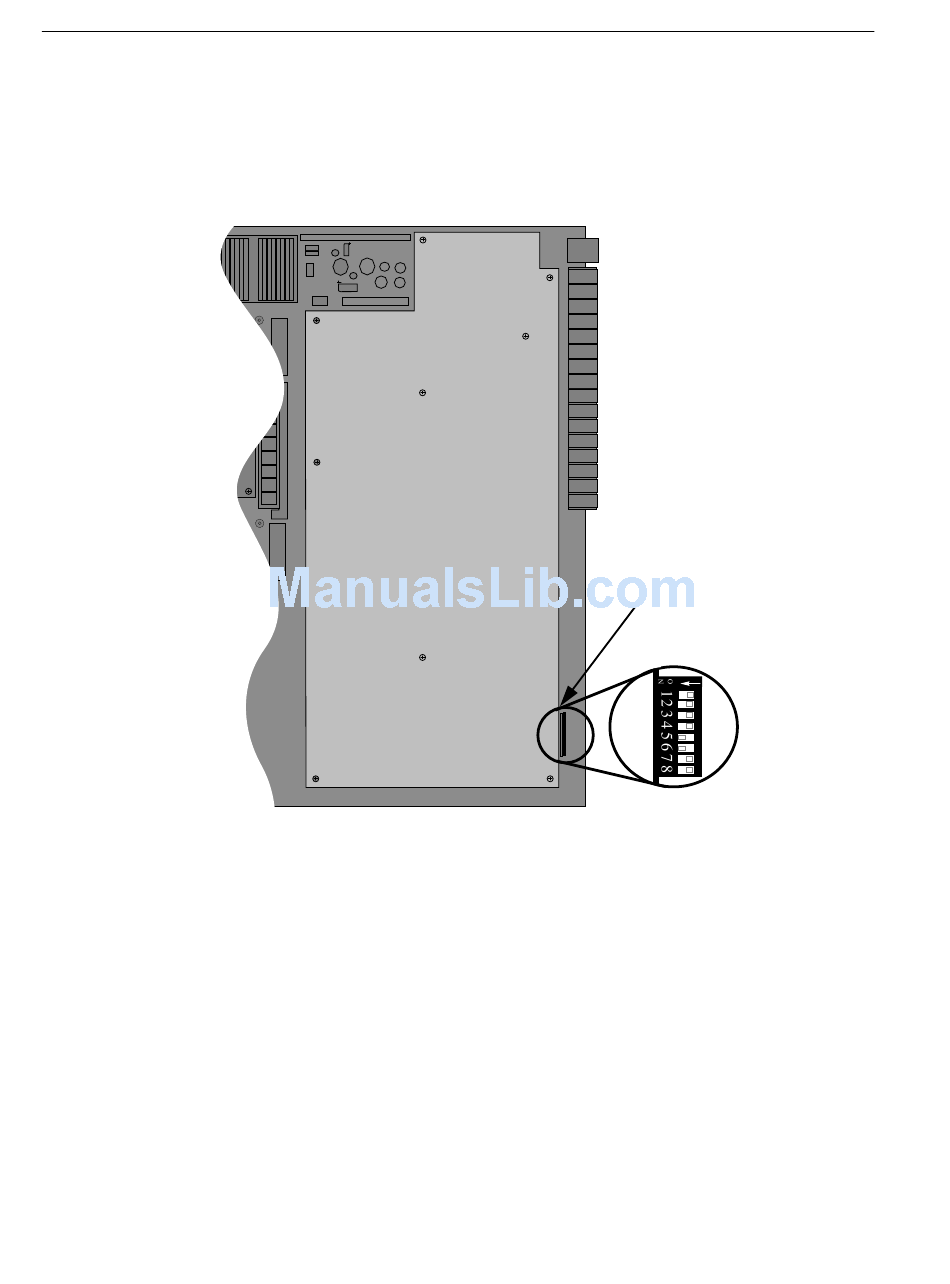

Figure 2-8. Location of DIP Switch on the 9A426-01 Module's Daughterboard

2-10

DIP Switch

(side view in

insert)
