Preparing and Installing the 9A426-01 Module
7. Press down gently on the APIM to lock its female connector into the 9A426-01
Module's male connector.
8. Secure the APIM to the module: Use a phillips head screwdriver to attach four
round-head screws to the four standoffs on the 9A426-01 Module.
9. Attach the 9A426-01 Module's ATM-Port Retaining Plate (see next page).
Attaching the 9A426-01 Module's ATM-Port Retaining Plate
1. Place the module (component side up) on a non-conductive, flat surface.
Position the module so that the module's front (faceplate) is facing you.
2. Locate the area where the ATM-Port Retaining Plate attaches to the faceplate.
3. Place the ATM-Port Retaining Plate on the module (align the retaining plate's
securing holes with the module's securing holes). Make sure the Retaining
Plate's faceplate (its smaller side) is flush with the module's faceplate (see
Figure 2-7).
2-8

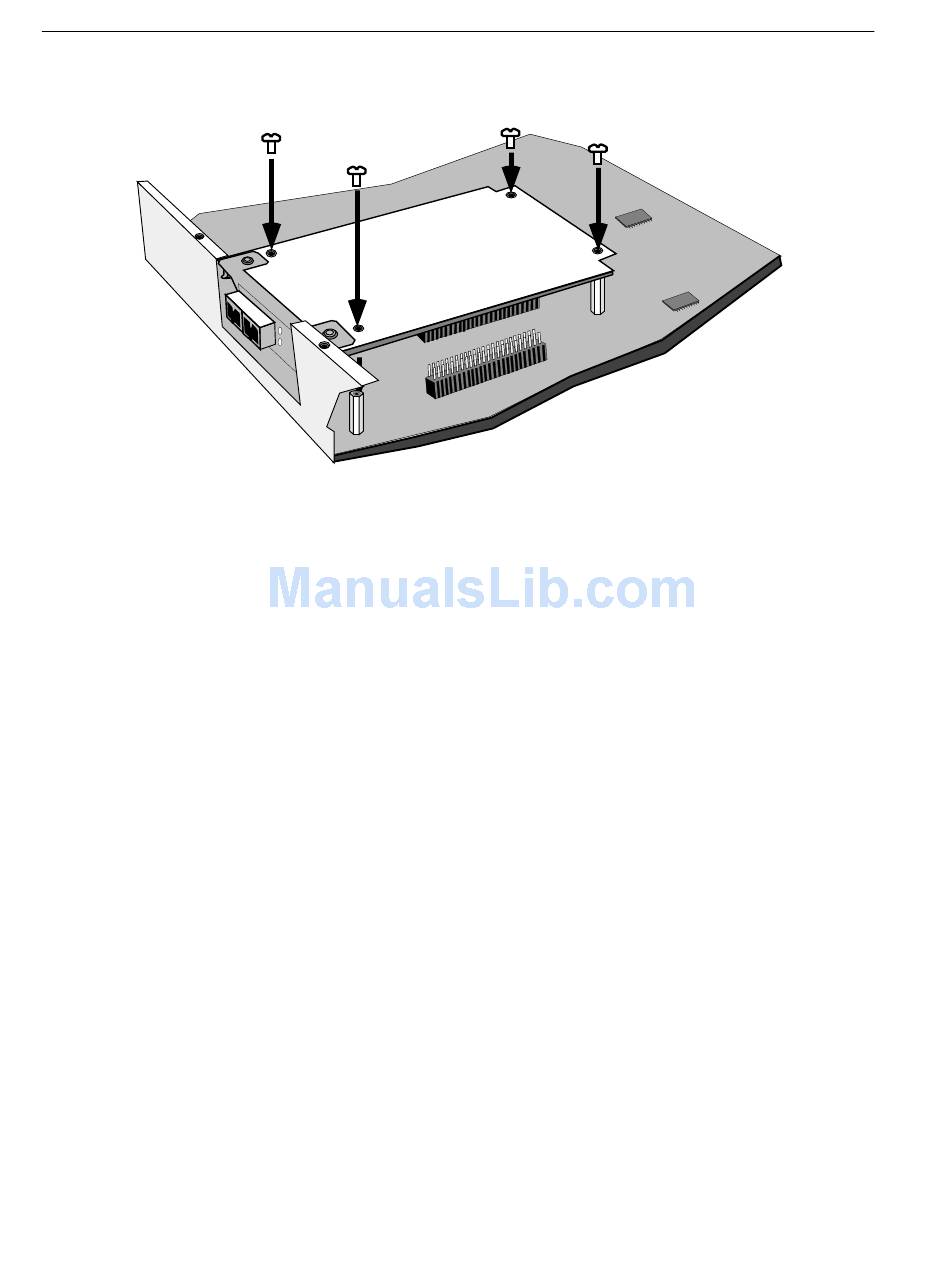

Figure 2-6. Attaching APIM to a 9A426-01 Module
