User-Accessible Components on the Module's

Motherboard

The user-accessible components on the module's motherboard include a Look-Up

Engine, a user-installed ATM Memory Upgrade SRAM SIMM, and a user-

installed ATM Port Interface Module

The User-Accessible Components on the motherboard of a 9A426-01 Module

are positioned in close proximity to one another. Therefore, to attain easier

NOTE

access for removing a desired component, you may opt to remove an additional

component. For example, you may remove an SRAM SIMM to gain better

access for removing a Look-Up Engine.

APIM

Look-Up

Engine

APIM

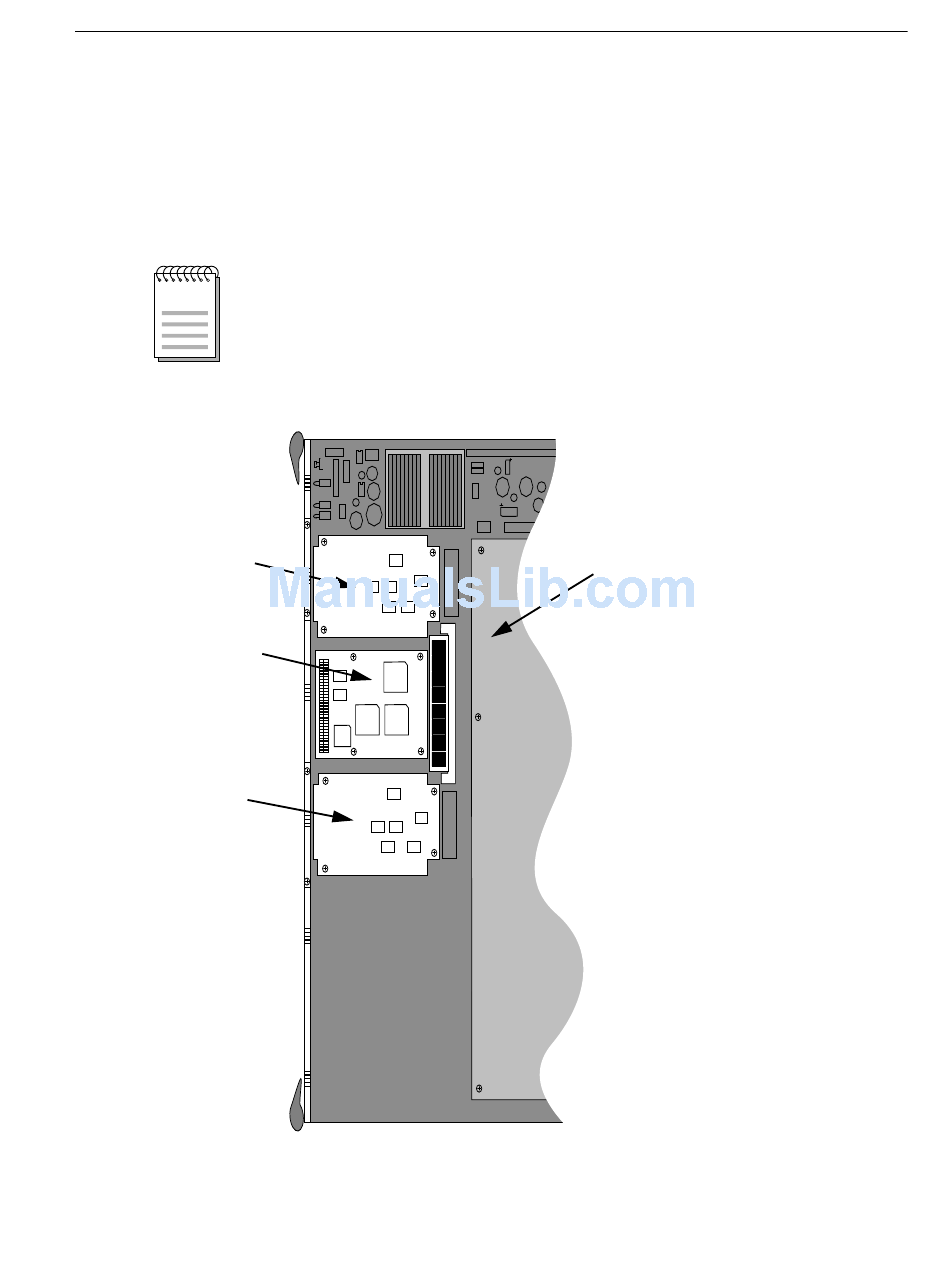

Figure 2-2. User-Accessible Components on the 9A426-01 Module's motherboard

Preparing and Installing the 9A426-01 Module

APIM). See Figure 2-2.

(

SRAM

SIMM

2-3
