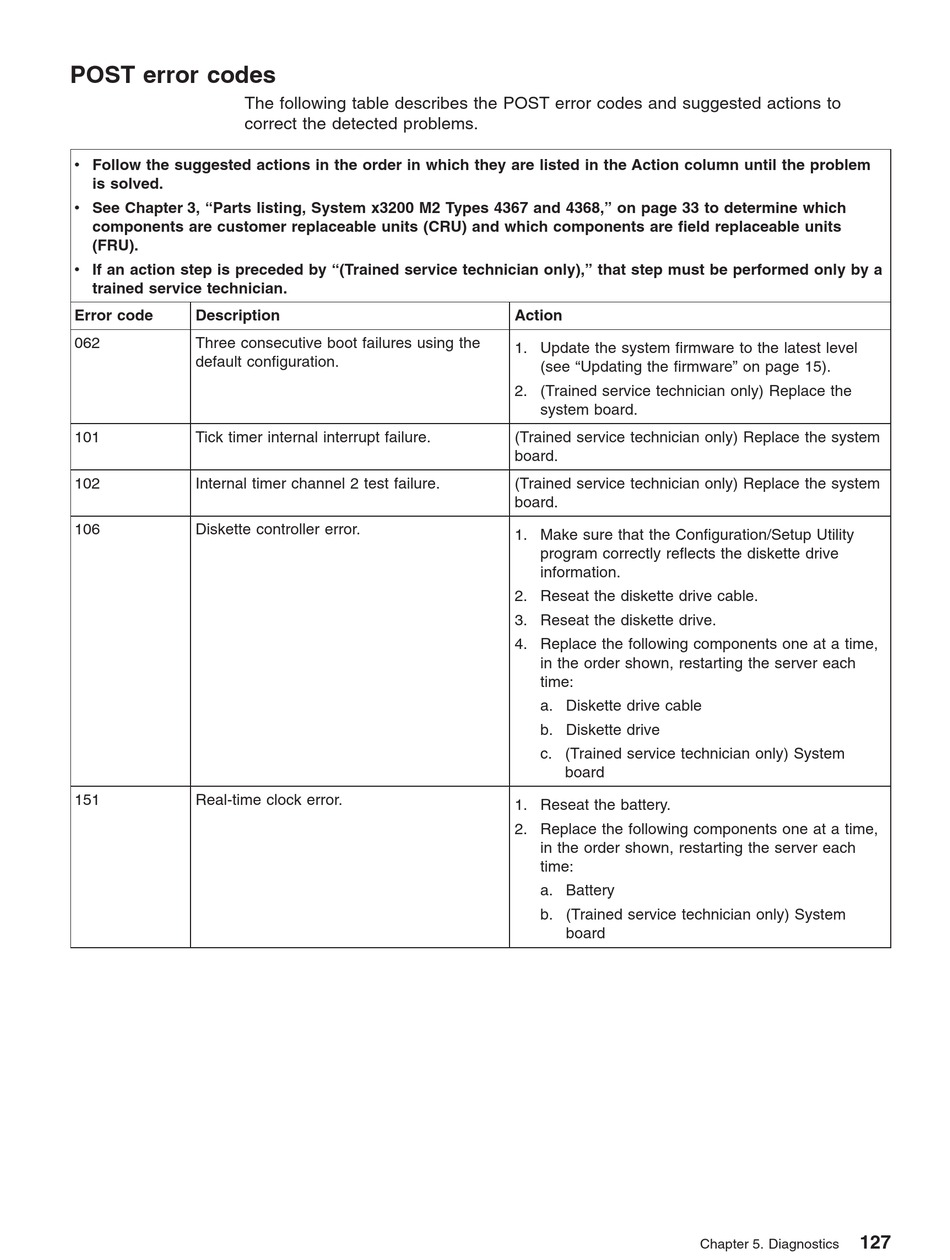

POST error codes

The following table describes the POST error codes and suggested actions to
correct the detected problems.
v Follow the suggested actions in the order in which they are listed in the Action column until the problem
is solved.
v See Chapter 3, "Parts listing, System x3200 M2 Types 4367 and 4368," on page 33 to determine which
components are customer replaceable units (CRU) and which components are field replaceable units
(FRU).
v If an action step is preceded by "(Trained service technician only)," that step must be performed only by a
trained service technician.
Error code Description
062 Three consecutive boot failures using the
default configuration.
101 Tick timer internal interrupt failure.
102 Internal timer channel 2 test failure.
106 Diskette controller error.
151 Real-time clock error.
Action
1. Update the system firmware to the latest level
(see "Updating the firmware" on page 15).
2. (Trained service technician only) Replace the
system board.
(Trained service technician only) Replace the system
board.
(Trained service technician only) Replace the system
board.
1. Make sure that the Configuration/Setup Utility
program correctly reflects the diskette drive
information.
2. Reseat the diskette drive cable.
3. Reseat the diskette drive.
4. Replace the following components one at a time,
in the order shown, restarting the server each
time:
a. Diskette drive cable
b. Diskette drive
c. (Trained service technician only) System
board
1. Reseat the battery.
2. Replace the following components one at a time,
in the order shown, restarting the server each
time:
a. Battery
b. (Trained service technician only) System
board
127
Chapter 5. Diagnostics
