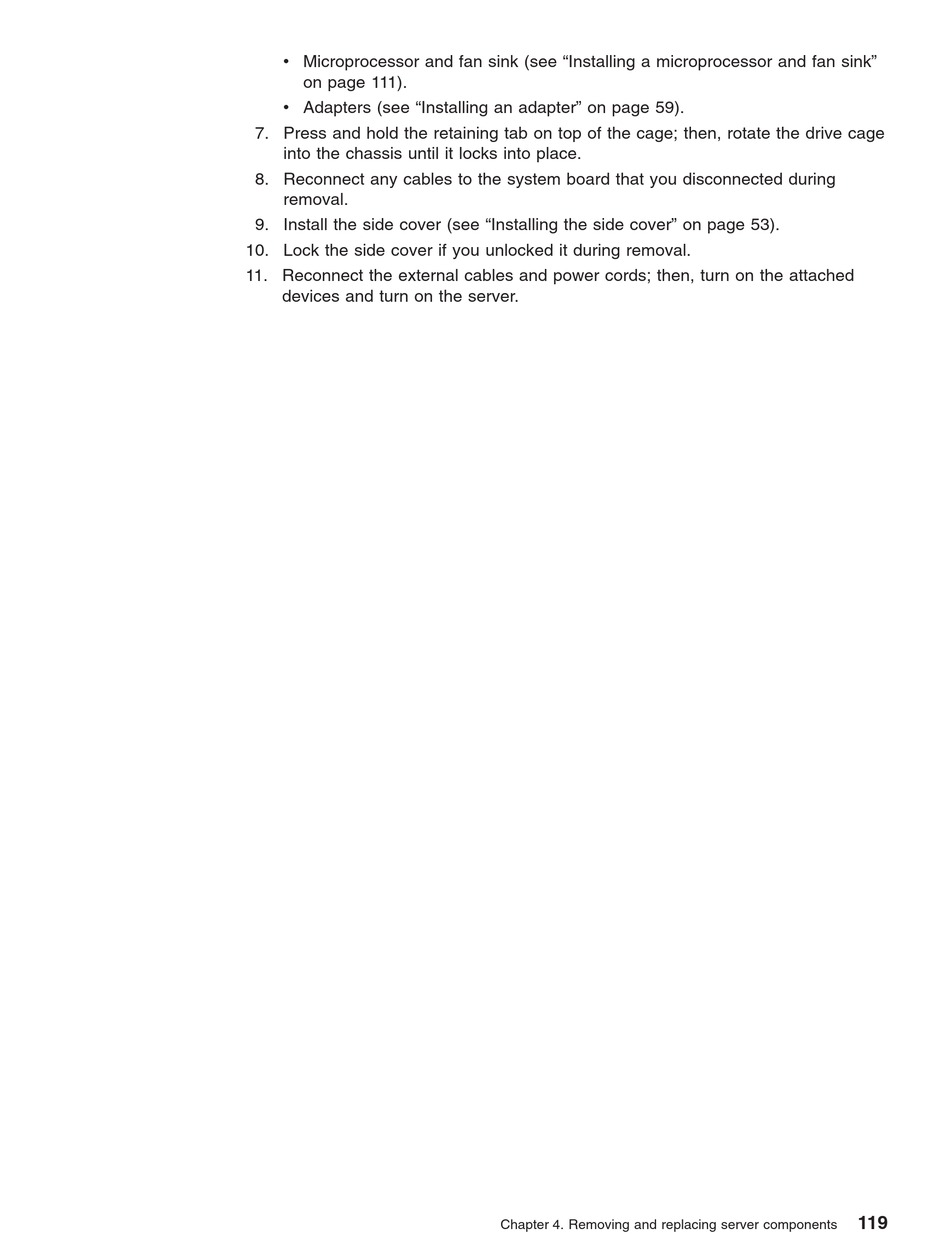

v Microprocessor and fan sink (see "Installing a microprocessor and fan sink"
on page 111).
v Adapters (see "Installing an adapter" on page 59).
7. Press and hold the retaining tab on top of the cage; then, rotate the drive cage
into the chassis until it locks into place.
8. Reconnect any cables to the system board that you disconnected during
removal.
9. Install the side cover (see "Installing the side cover" on page 53).
10. Lock the side cover if you unlocked it during removal.
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Chapter 4. Removing and replacing server components
119
