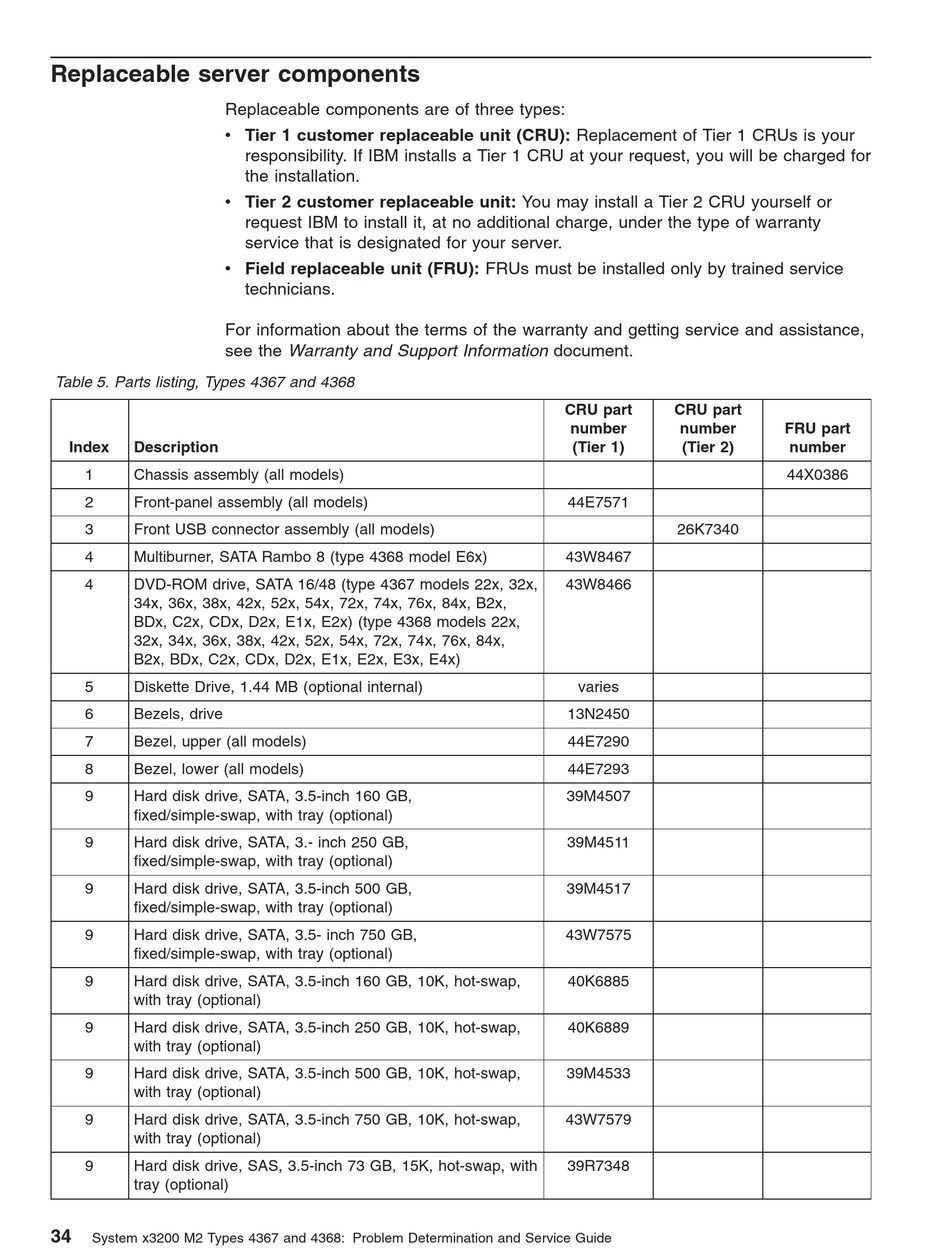

Replaceable server components

Replaceable components are of three types:
v Tier 1 customer replaceable unit (CRU): Replacement of Tier 1 CRUs is your
v Tier 2 customer replaceable unit: You may install a Tier 2 CRU yourself or
v Field replaceable unit (FRU): FRUs must be installed only by trained service
For information about the terms of the warranty and getting service and assistance,
see the Warranty and Support Information document.
Table 5. Parts listing, Types 4367 and 4368
Index Description
1 Chassis assembly (all models)
2 Front-panel assembly (all models)
3 Front USB connector assembly (all models)
4 Multiburner, SATA Rambo 8 (type 4368 model E6x)
4 DVD-ROM drive, SATA 16/48 (type 4367 models 22x, 32x,
34x, 36x, 38x, 42x, 52x, 54x, 72x, 74x, 76x, 84x, B2x,
BDx, C2x, CDx, D2x, E1x, E2x) (type 4368 models 22x,
32x, 34x, 36x, 38x, 42x, 52x, 54x, 72x, 74x, 76x, 84x,
B2x, BDx, C2x, CDx, D2x, E1x, E2x, E3x, E4x)
5 Diskette Drive, 1.44 MB (optional internal)
6 Bezels, drive
7 Bezel, upper (all models)
8 Bezel, lower (all models)
9 Hard disk drive, SATA, 3.5-inch 160 GB,
fixed/simple-swap, with tray (optional)
9 Hard disk drive, SATA, 3.- inch 250 GB,
fixed/simple-swap, with tray (optional)
9 Hard disk drive, SATA, 3.5-inch 500 GB,
fixed/simple-swap, with tray (optional)
9 Hard disk drive, SATA, 3.5- inch 750 GB,
fixed/simple-swap, with tray (optional)
9 Hard disk drive, SATA, 3.5-inch 160 GB, 10K, hot-swap,
with tray (optional)
9 Hard disk drive, SATA, 3.5-inch 250 GB, 10K, hot-swap,
with tray (optional)
9 Hard disk drive, SATA, 3.5-inch 500 GB, 10K, hot-swap,
with tray (optional)
9 Hard disk drive, SATA, 3.5-inch 750 GB, 10K, hot-swap,
with tray (optional)
9 Hard disk drive, SAS, 3.5-inch 73 GB, 15K, hot-swap, with
tray (optional)
34
System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
responsibility. If IBM installs a Tier 1 CRU at your request, you will be charged for
the installation.
request IBM to install it, at no additional charge, under the type of warranty
service that is designated for your server.
technicians.
CRU part CRU part
number number
(Tier 1) (Tier 2)
44E7571
26K7340
43W8467
43W8466
varies
13N2450
44E7290
44E7293
39M4507
39M4511
39M4517
43W7575
40K6885
40K6889
39M4533
43W7579
39R7348
FRU part
number
44X0386
