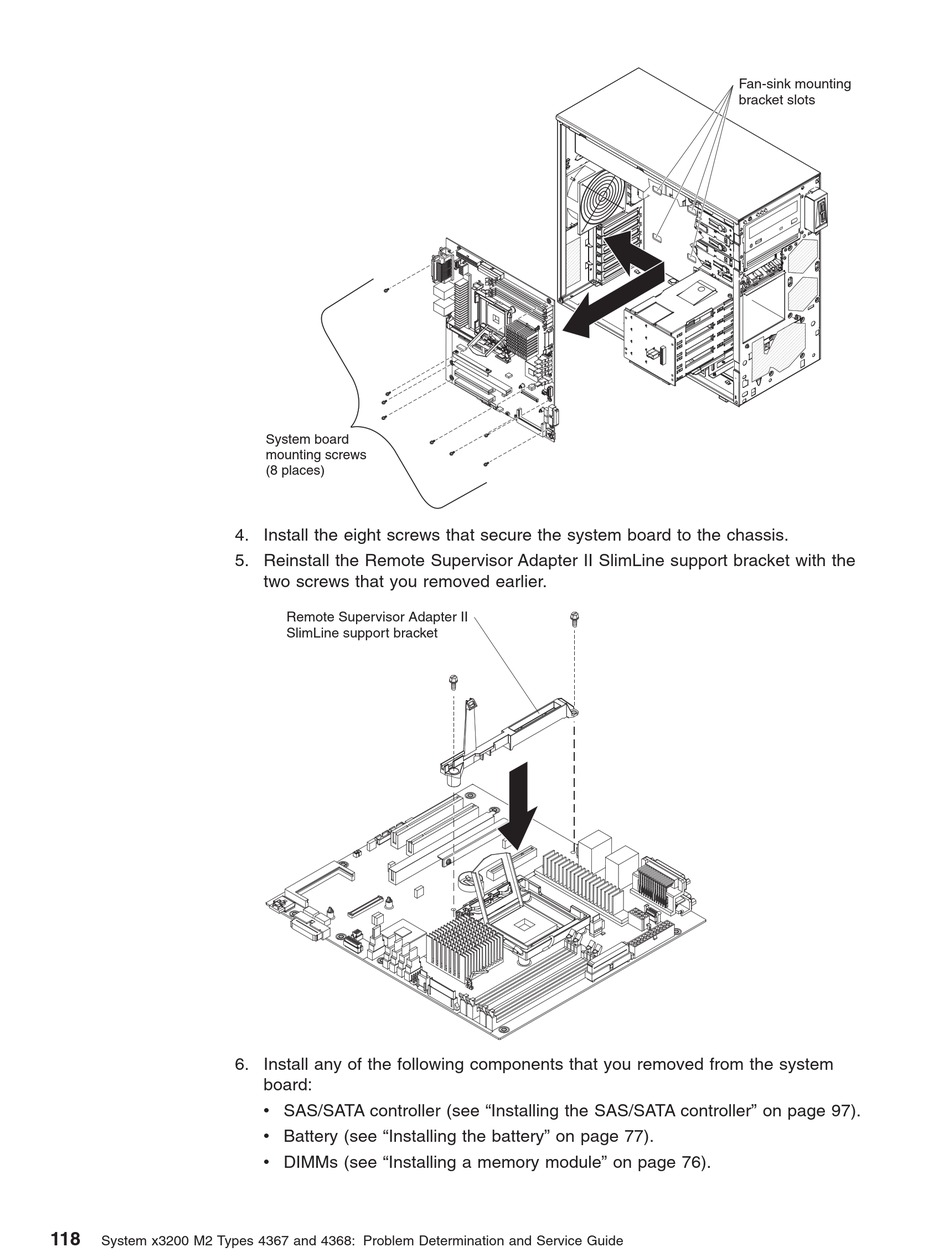

System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
System board
mounting screws
(8 places)
4. Install the eight screws that secure the system board to the chassis.
5. Reinstall the Remote Supervisor Adapter II SlimLine support bracket with the
two screws that you removed earlier.
Remote Supervisor Adapter II
SlimLine support bracket
6. Install any of the following components that you removed from the system
board:
v SAS/SATA controller (see "Installing the SAS/SATA controller" on page 97).
v Battery (see "Installing the battery" on page 77).
v DIMMs (see "Installing a memory module" on page 76).
Fan-sink mounting
bracket slots
