If you choose
Once the energy meter pages are finished, the instrument
will display some pages related to the variables connected
to the alarm.
The scrolling of the measuring pages is cyclic, at the end of the
cycle, you go back to the first page (see page 4).
Index
3
To begin with
"tot-Prd"
4
the instrument displays:

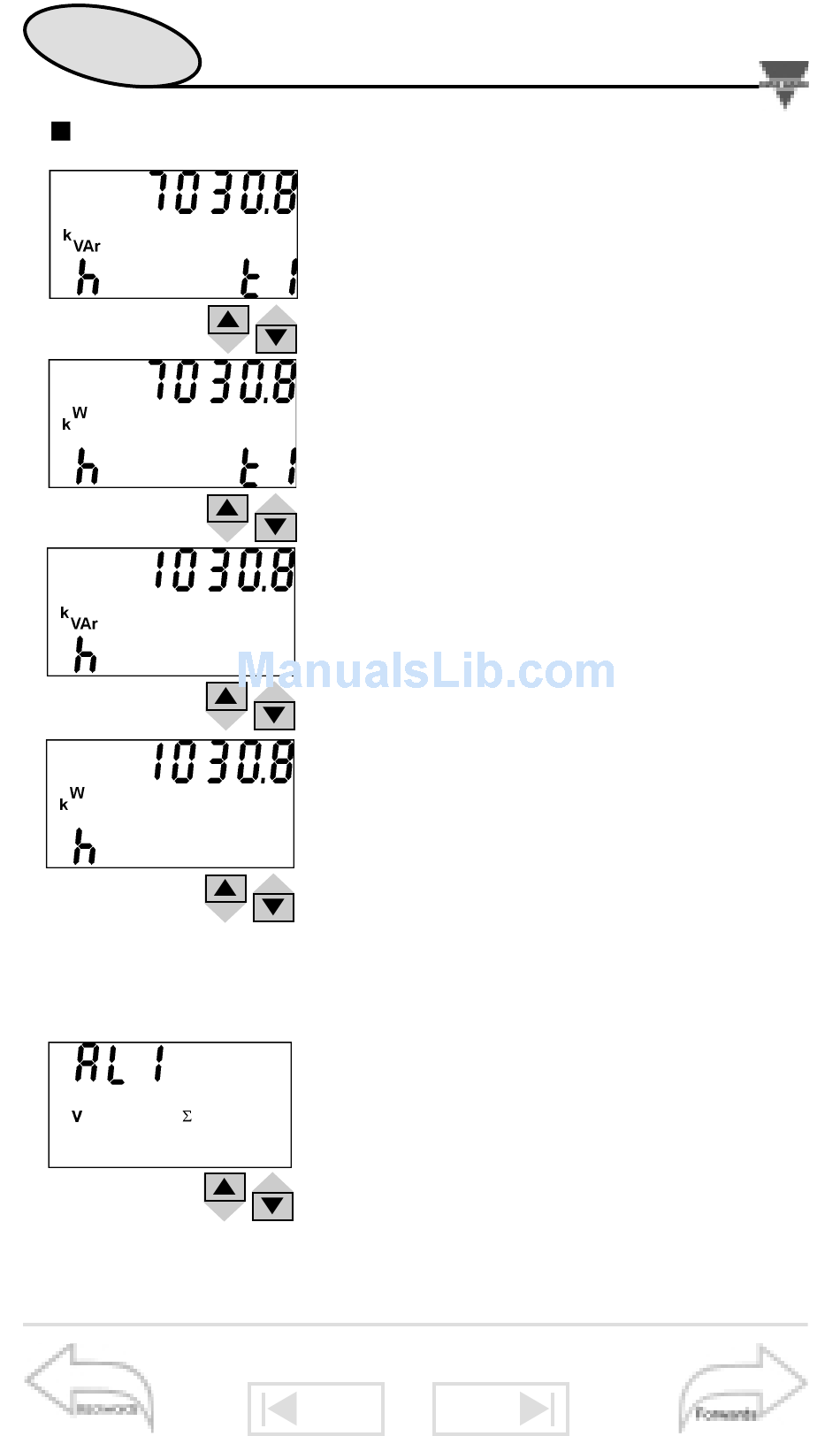

Reactive energy consumed dur-
ing tariff 1: integration of the sys-
tem active power only if positive
(same is also for tariff 2, 3 and 4).
Active energy consumed during
tariff 1: integration of the system
active power only if positive
(same is for tariff 2, 3 and 4).
Consumed total reactive energy:
integration of the system reactive
power only if positive.
Consumed total active energy:
integration of the system active
power only if positive.
Display of alarm settings (AL1 and
AL2 if both alarms have been set).
It displays the variable connected
to the alarm.
