32

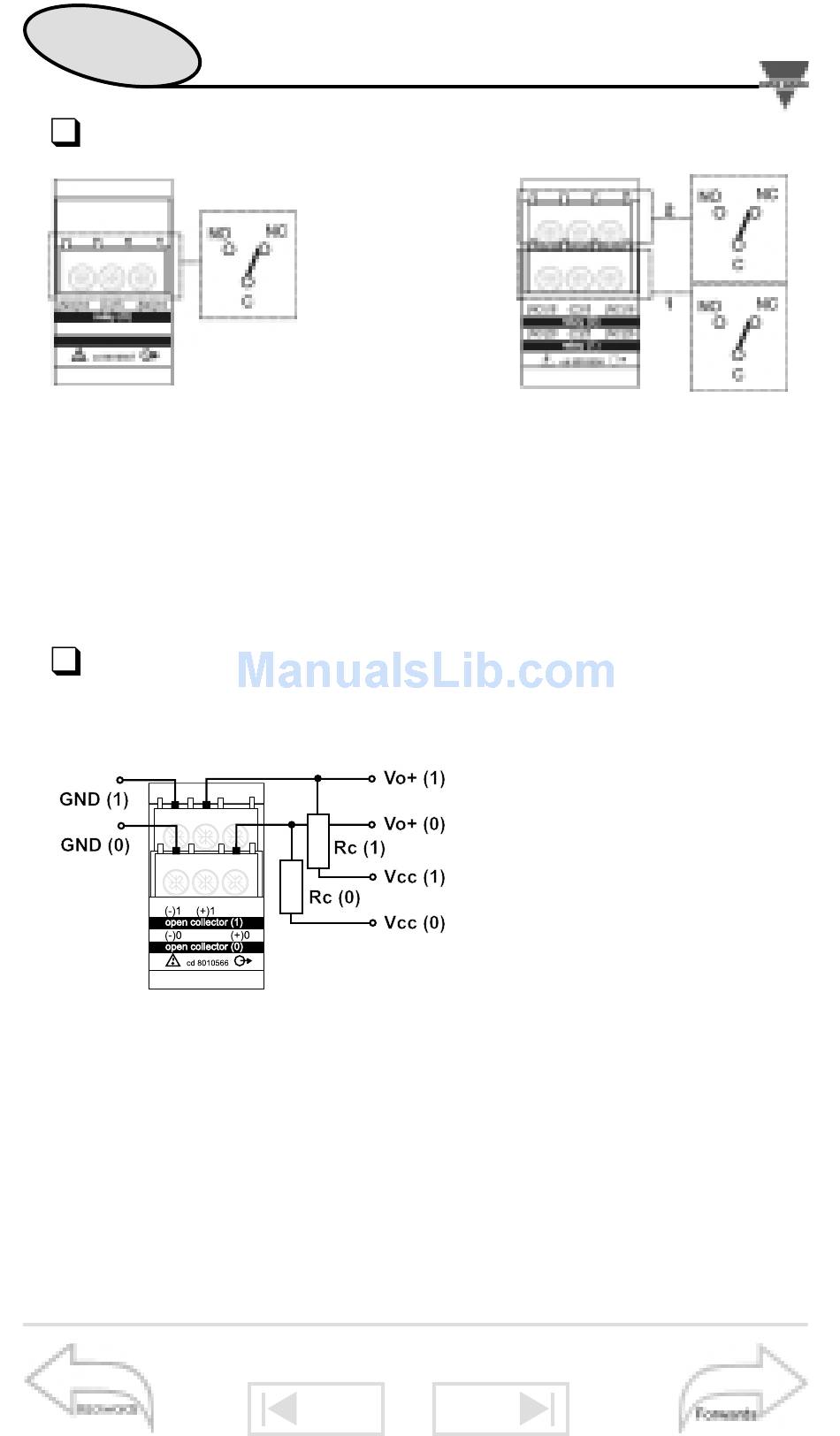

Relay output
AO1058
Single relay output
Open collector output
Single open collector output
Dual open collector output
Dimensions
27
Installation
AO1059
AO1036
26
AO1035
Dual relay output
This diagram is valid also
for the single output open
collector module.
The value of the load
resistances (Rc) must be
chosen so that the short-
circuit current is lower
than 100mA; the VDC
voltage must be lower
than or equal to 30 VDC.
Electrical diagrams
35
34
