Installation
Preliminary operations
Before switching the instrument on, make sure that the
power supply voltage corresponds to what is shown on the
side label of the relevant module.
Before mounting the modules
To know in which slot every module is to be mounted,
refer to the figure on page 28. For a correct mounting of the
instrument, insert the modules in the relevant slots, then, at
the end, enter the central module, which can be a blind type
module or an RS232 communication module. The central
module will help fixing also the other modules in the relevant

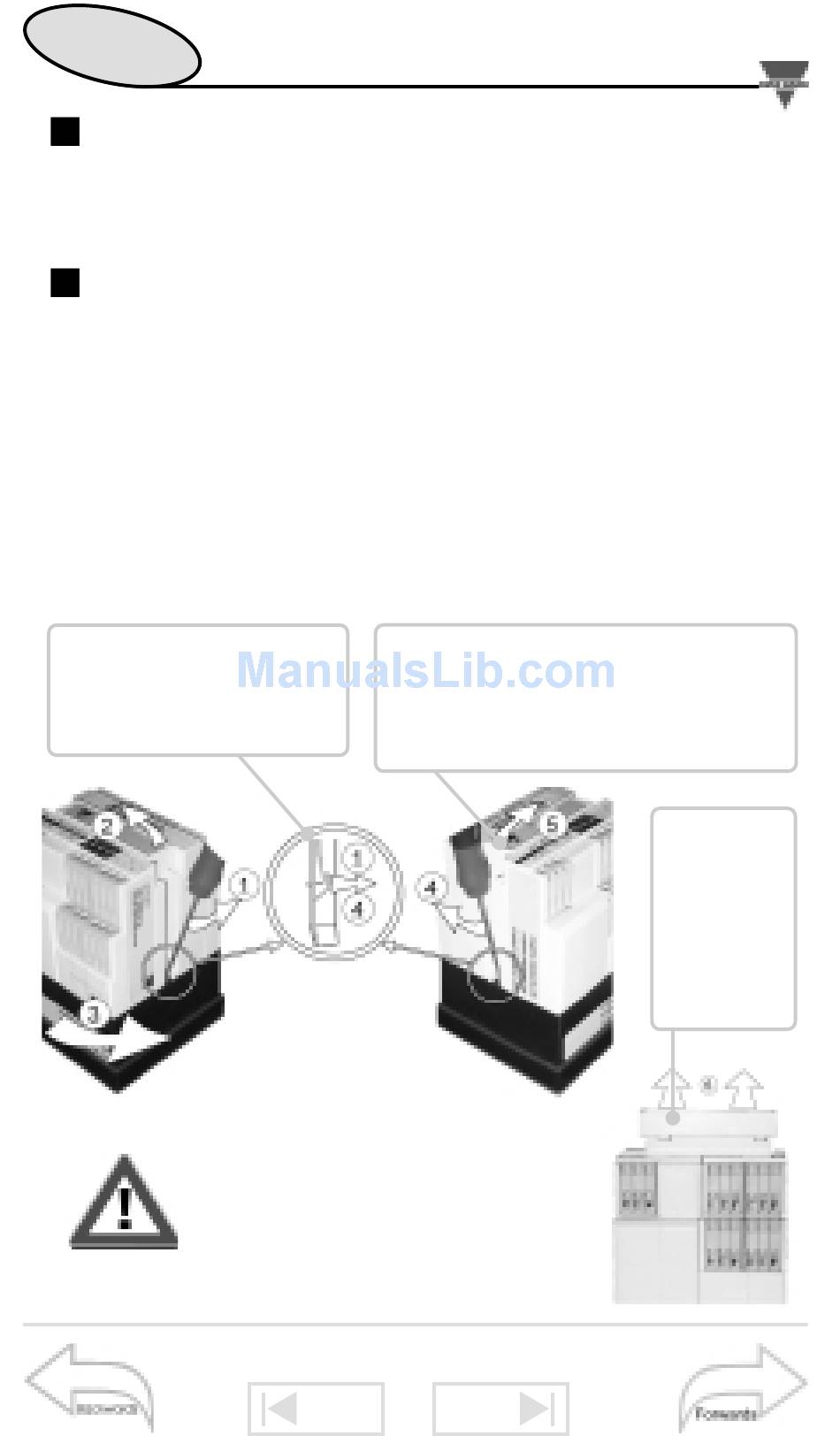

slots. To remove the modules use a screwdriver as shown in
the picture below.
Gently depress the
1
two fixing tabs.
Directions 1-4.
Any other slots that are not
used must be filled with the rel-
evant blind plug modules sup-
plied with the instrument.
End of Programming
21
Remove the central module
2
from its slot: press your
thumb towards points 2-5.
35
Extract the
c e n t r a l
module.
3
Position of Slot
