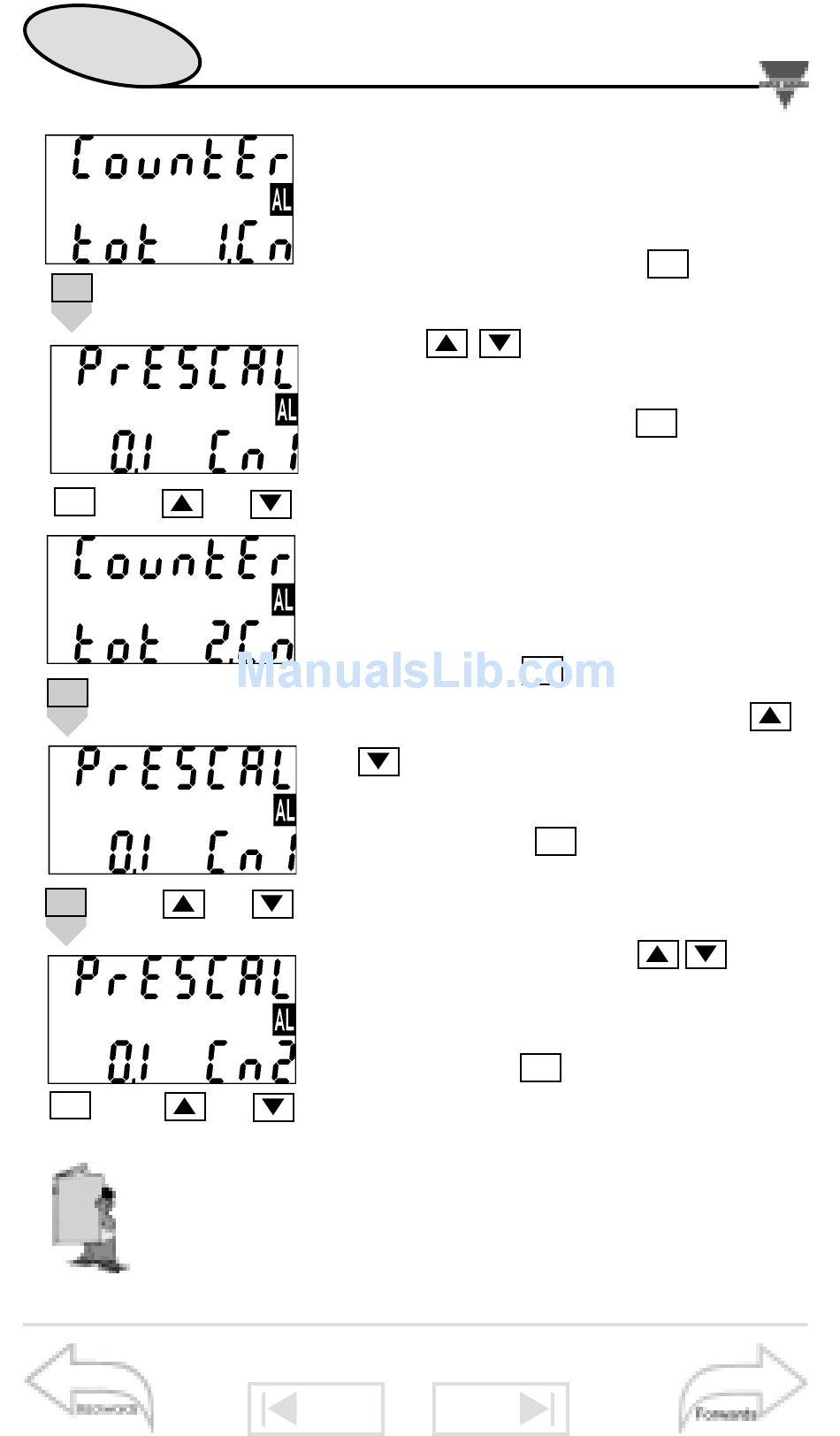

The prescaler (PrESCAL) sets the weight of the input
pulses of the digital input module; e.g.: by setting the
prescaler at 10, for each received pulse the meter
increases by 10 (10, 20, 30, etc.). The range of the
prescaler varies from 0.1 to 100.0.
Main Menu
9
tot 1.Cn: it enables the combination of
total en. meters and day-time and night-
time GAS meters (see also "Display
pages" on page 7). Press
"PrESCAL Cn1", then enter by means
of the
pulse of the IN2 digital input of the GAS
meters and confirm with
The same input IN2 increases alterna-
tively the day-time and night-time GAS
meters depending on the status of IN3.
tot 2.Cn: it enables the combination of
total energy meters and Water and Gas
meters (see also "Display pages" on
page 7). Press
Cn1" then enter by means of the
the IN3 digital input of the water meters,
confirm with
"PrESCAL Cn2" submenu.
Enter by means of the
the weight of every pulse of the IN2
digital input of the Gas meter, then
confirm with
