Installation

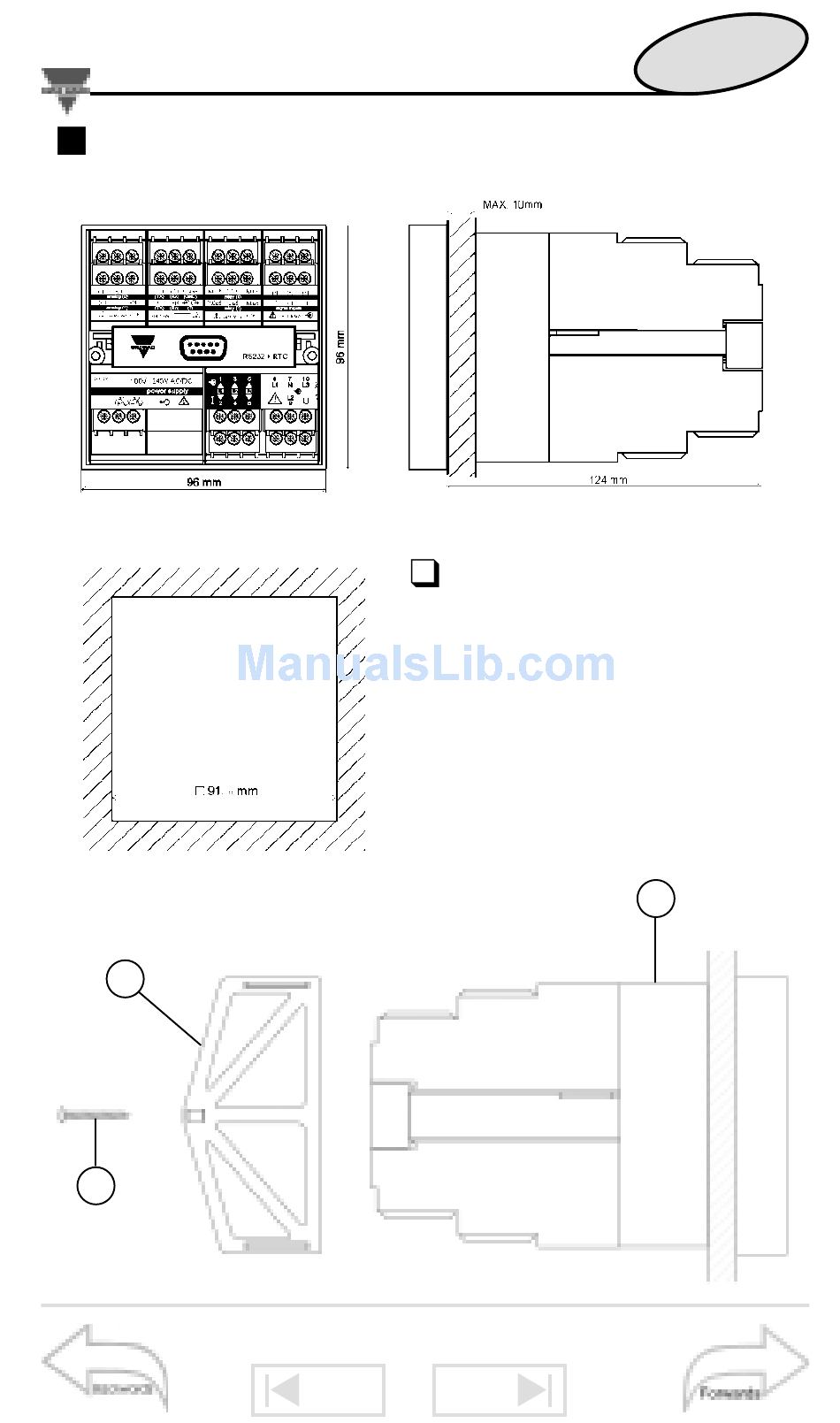

Overall dimensions and panel cut-out
Mounting
Insert the instrument (holding
its front) and fasten it (from the
back) by fixing the two lateral
brackets (1) (supplied with the
instrument) to the appropriate
location (2), using the two
screws (3) supplied with the
instrument.
2
1
3
