IP Camera Physical Details

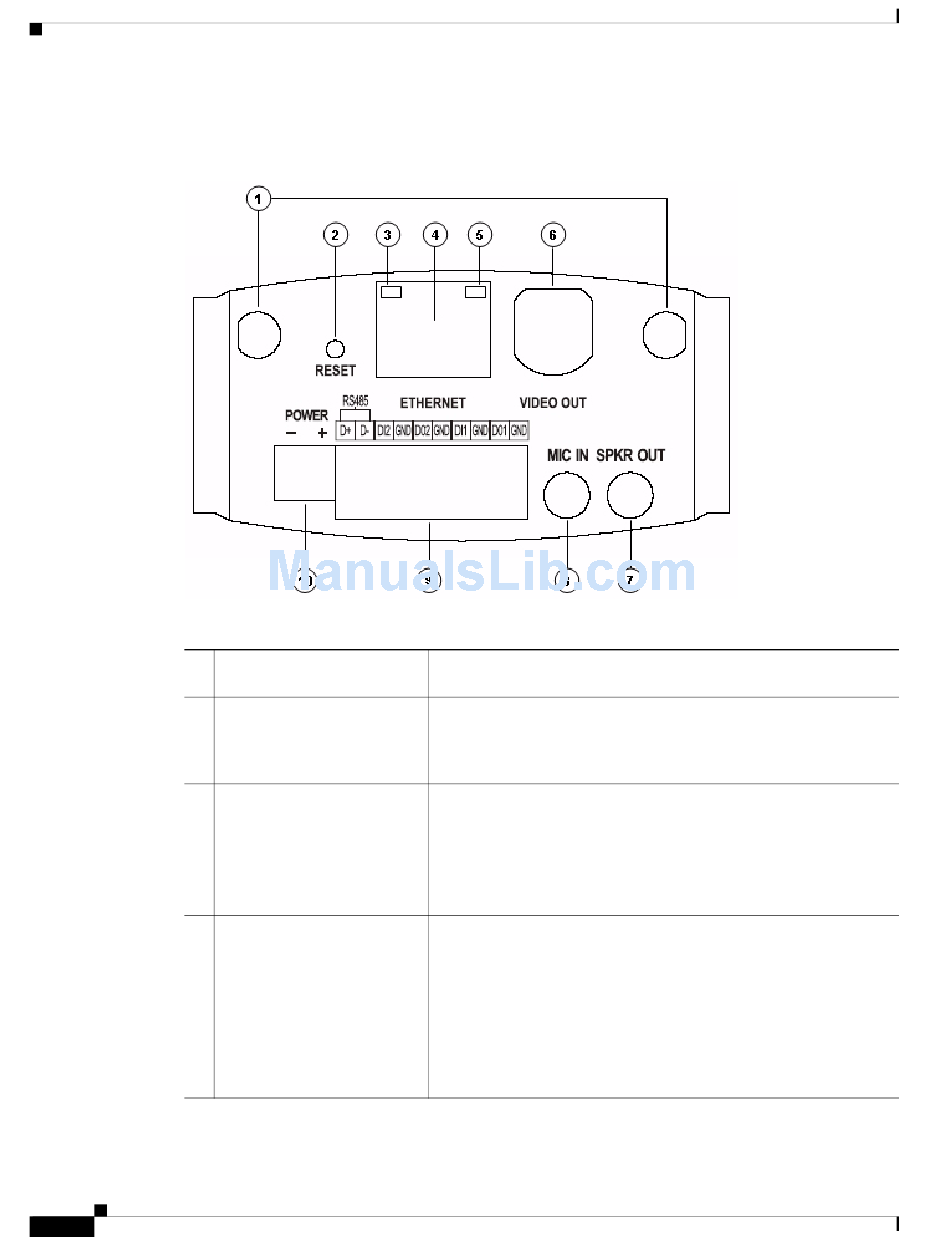

Figure 1-2
Figure 1-2
1 Antenna connectors (wireless
model only)
2
Reset button
3 Network LED (amber)
4
LAN port
Cisco Video Surveillance System IP Camera User Guide
1-4
and the table that follows describe the items on the rear of the IP camera.
Rear of IP Camera
Antennas screw into these connectors and are used for
communication in wireless networks.
Recessed button that reboots the IP camera or resets it to a default
state. You can use a pin or paper clip to depress it. It can be used
any time that the IP camera is on and can have various effects, as
described in the
Indicates information about the network connections as follows:
•
•
•
Accepts a standard LAN cable to connect the IP camera to a
10/100BASET hub, router, or switch.
On the wireless IP camera model, attaching a LAN cable disables
the wireless interface. Only 1 interface, wired or wireless, can be
active at a time.
Connect or disconnect the LAN cable only when the IP camera is
powered off. Doing so while the IP camera is powered on does not
switch the interface between wired and wireless.
"Resetting the IP Camera" section on page
On—Wireless or LAN connection is detected
Off—Wireless or LAN connection is not detected
Blinking—Data is being transmitted or received via the LAN
or wireless connection
Chapter 1 Overview
2-8.
