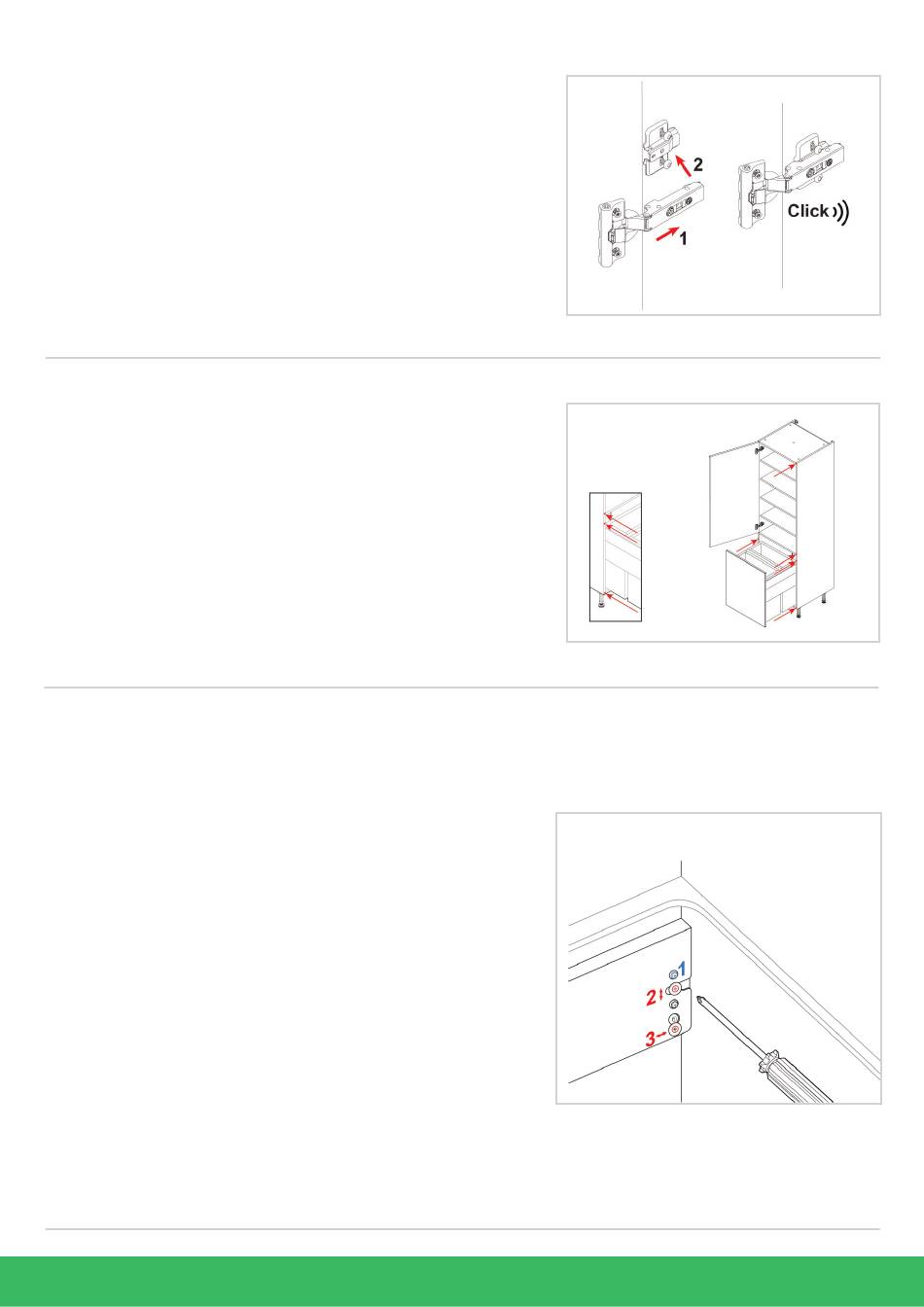

Attaching the frontal
The frontal should be re-attached to the unit
by clipping the hinges onto the hinge plates.
The bar of the hinge needs to be positioned
into the hooks on the hinge plate. Then the
rear of the hinge pushed to the hinge plate
until it clicks.
Adding the buffers
Position the door buffers at the sides of the
unit where the frontals meet the carcase, as
shown in the diagram.
Adjusting the frontal
To adjust the hinges, use a screwdriver as required
at points 1, 2, and 3.
Point 1 -Will secure the frontal in place.
Point 2 - Will adjust the height of the frontal.
Loosen the screw at point 1 and turn the screw at
point 2. To raise the door, turn the screw point 2
clockwise, to lower it, turn it anti-clockwise.
Point 3 - Will adjust the angle between the frontal
and the cabinet vertically.
Loosen the screw at point 1 to tilt the top of the
door outwards, turn the screw at point 3 clockwise.
To tilt the door inward, turn screw 2 anti-clockwise
(repeat evenly on both sides of the door).
