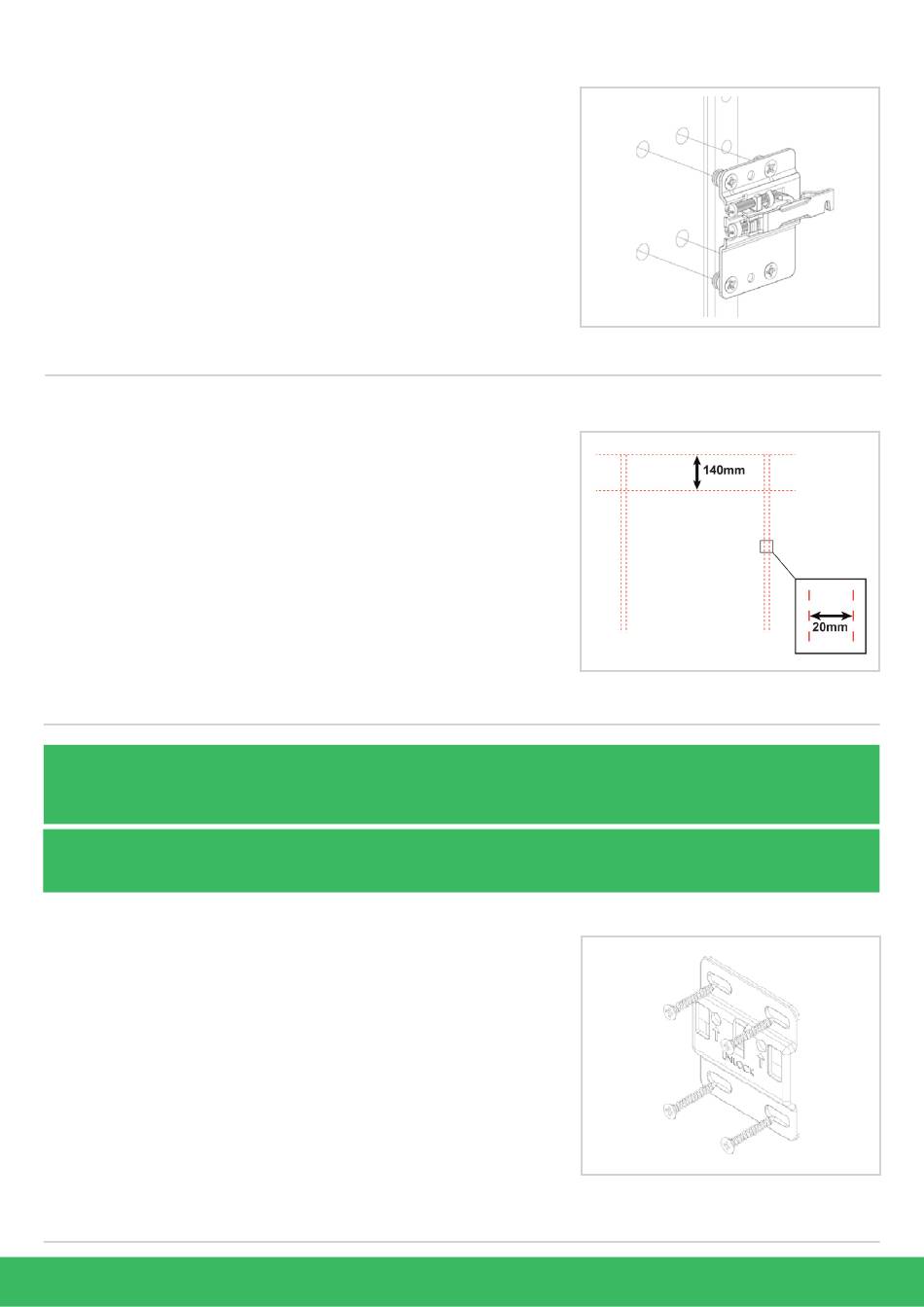

Installing the wall hanging bracket
Place the unit on its side for better access to
inserting and securing the hanging bracket.
Please note that the brackets are not
identical, ensure that the correct bracket is
placed on it's appropriate side of the unit.
Insert the hanging bracket into the pre-drilled
holes and secure using the screws provided
with the bracket.
Finding the fixing point for the wall
brackets
The fixing points for the wall hanging
brackets will be 140mm from the top of the
units to the bottom of the hanging bracket.
Draw a line on the wall 140mm below the top
line of the unit (already marked), this will be
where the bracket will sit.
Draw a vertical line 20mm inside either side of
the pre marked wall unit positions.
No screws or wall plugs are provided for attaching the unit to the wall.
Before drilling into the wall you MUST check for any hidden services or pipework within the walls.
Attaching the wall hanging bracket to the
wall
Position the 2x hanging brackets as shown
and mark the holes onto the wall.
Remove the hanging bracket, then drill
holes into the wall where the markings are
appropriate for the screws required.
Attach the hanging bracket onto the wall by
screwing through the holes on the hanging
bracket into the holes on the wall.
This is due to variations in wall construction.
