4. Use the Connection Mode drop-down list to set a connection behavior for this profile.
o Manual - When you select manual connection mode, the client does not try to restart the VPN
tunnel automatically if the VPN tunnel goes down. To restart the VPN tunnel, you must click the
Connect button in Connection Monitor or right-click the Mobile VPN icon on your Windows
desktop toolbar and click Connect.
o Automatic - When you select automatic connection mode, the client tries to start the
connection when your computer sends traffic to a destination that you can reach through the
VPN. The client also tries to restart the VPN tunnel automatically if the VPN tunnel goes down.
o Variable - When you select variable connection mode, the client tries to restart the VPN tunnel
automatically until you click Disconnect. The client does not try to restart the VPN tunnel again
until after the next time you click Connect.
5. Click OK.

Mobile User VPN client icon

The Mobile User VPN icon appears in the Windows desktop system tray to show the status of the full featured
desktop firewall, the link firewall, and the VPN network. You can right-click the icon to easily connect and
disconnect your Mobile VPN and see which profile is in use.

See Mobile VPN log messages

You can use the Mobile VPN client log file to troubleshoot problems with the negotiations that occur during
the VPN client connection.

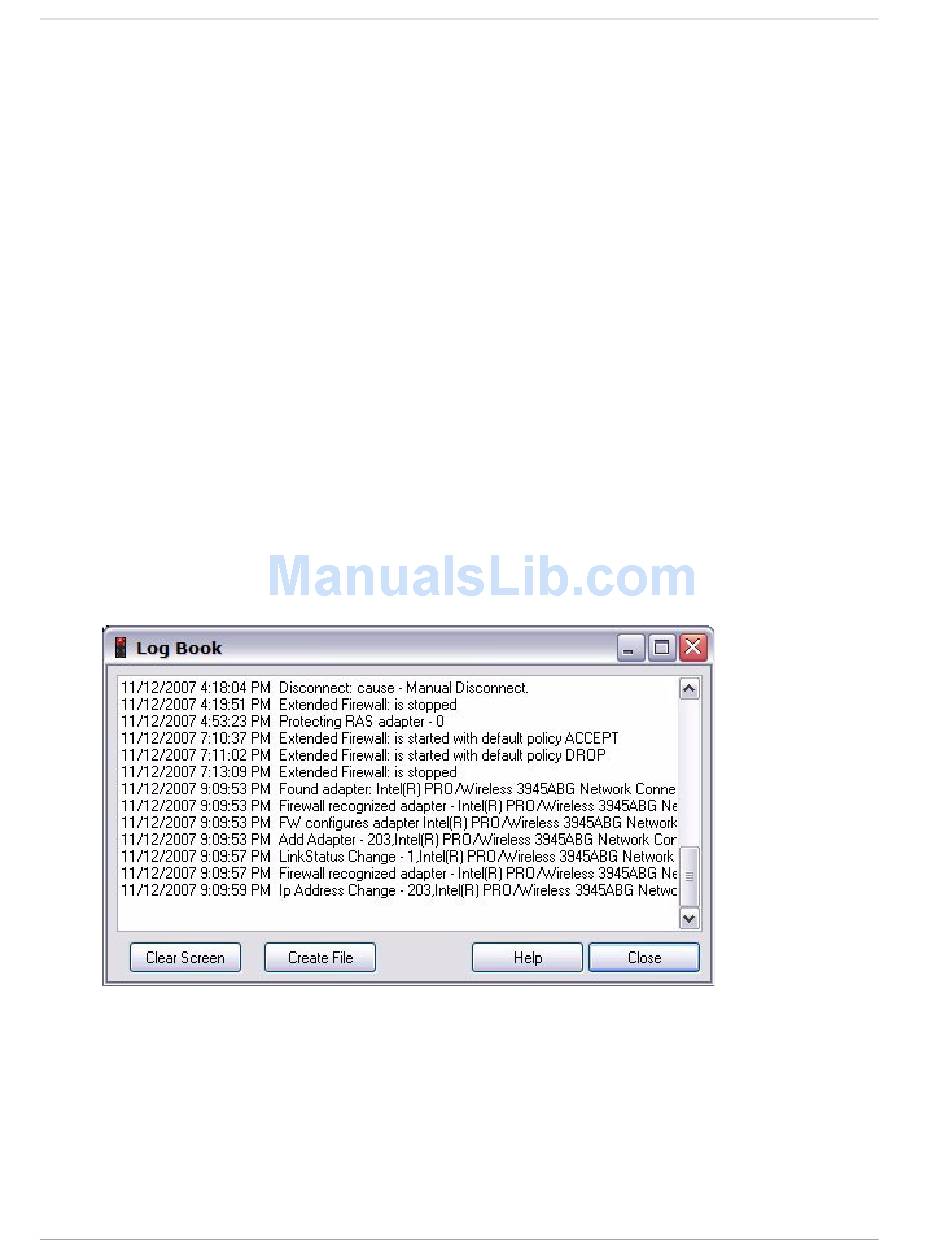

To access Mobile VPN log messages, select Log > Logbook from the Connection Monitor.
The Log Book dialog box appears.
