EXPLODED VIEWS

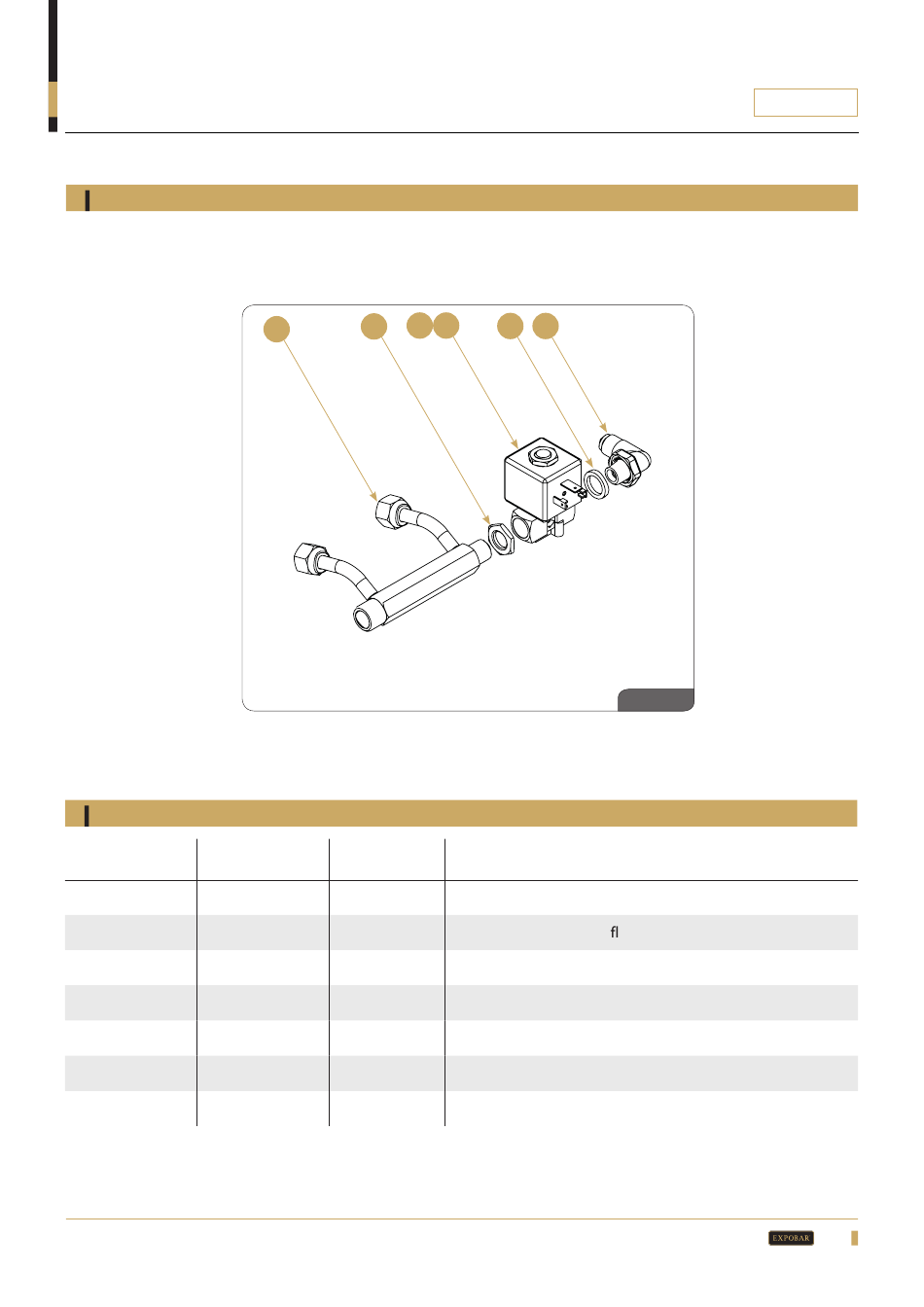

Water supply and drainage set_ZIRCON mini pulser 2Gr
Drawing
Spare parts list
POS.
01
02
03
04
05
06
--
04
05
06
PCS Part No.
1 C30000215
1 C50010020
1 C60000100
1 C60000103
1 C30100010
1 C35040101
- ESC00089
03 02 01
Description
Conical Bend Adaptor 1/4 X 1/4
13.2*18.2*2.5 1/4 Te on Gasket
1/4 X 1/4 Electrovalve Parker 220V
1/4 X 1/4 Electrovalve Parker 120V
Hexagonal Nut 1/4 Pressostat
Mini Brass Tube For Battery
Laberinto Minipulser 2 Gr
ZIRCON
ESC00089
