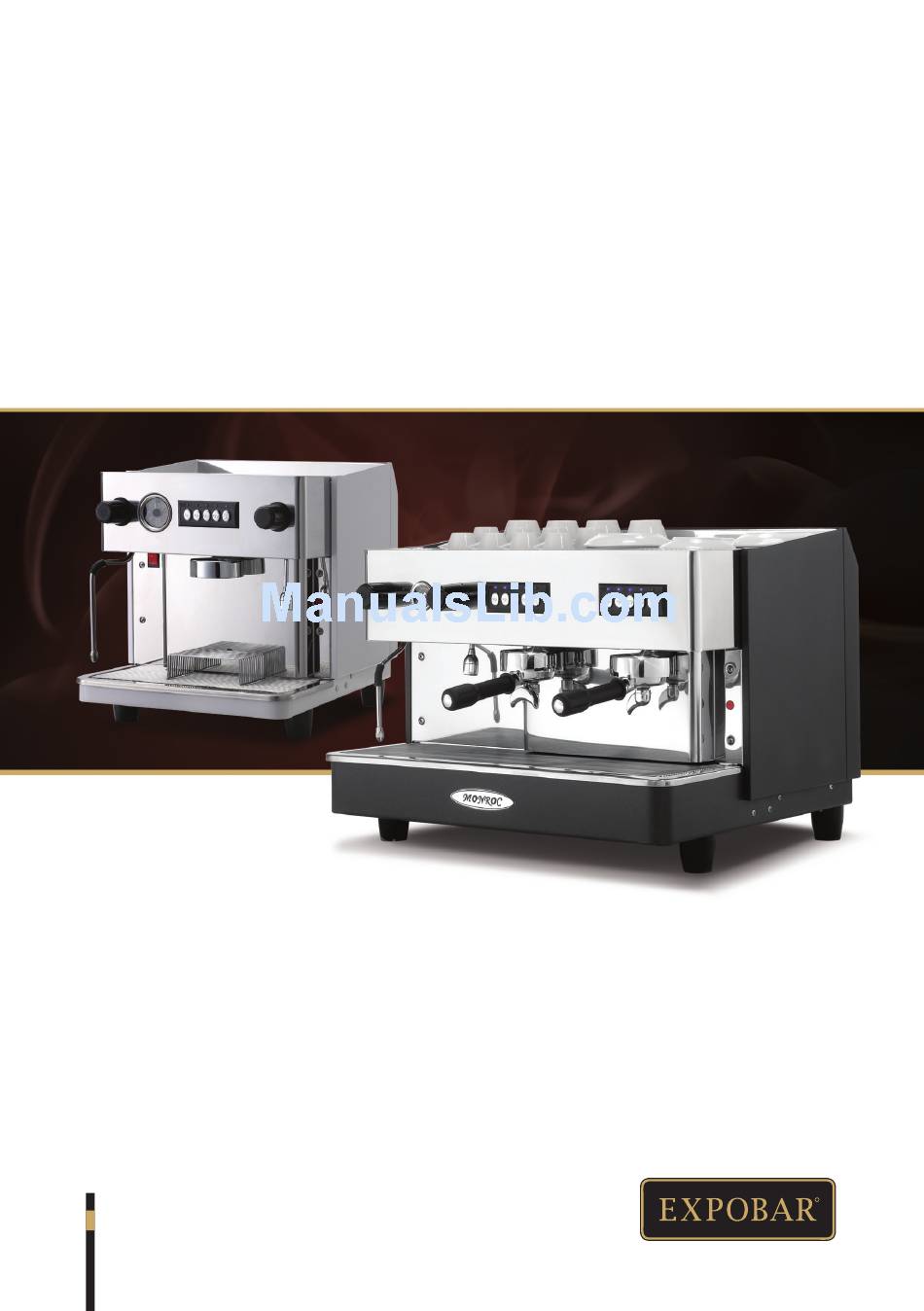

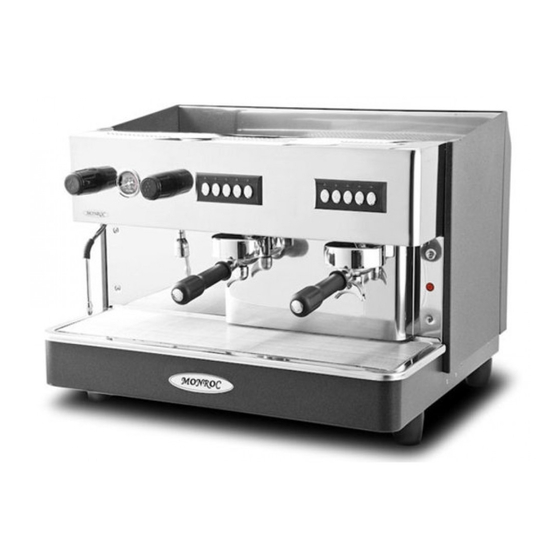

- Page 1 MONROC USER MANUAL UM_EN Date: 140324...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS ........................7 MONROC 1GR ..................................7 Accesories ....................................7 MONROC 2GR ..................................8 Accesories ....................................8 OVERVIEW OF COMPONENTS ........................9 MONROC 1GR ..................................9 MONROC control 2GR ..............................10 MONROC pulser 2GR ..............................10 DIMENSION SKETCH ............................11 TRANSPORT ................................12 Packaging ....................................12 Delivery inspection ................................12 INSTALLATION ................................12 Positioning ....................................12... - Page 3 CONTENT MONROC Cleaning the gasket and shower plate .......................... 21 Additional handling of the machine..........................22 STORAGE AND DISPOSAL OF MACHINE ..................22 How to store the machine .............................. 22 Disposal of machine ................................22 PROGRAMMING ..............................23 Buttons functions ................................23 Additonal button functions ..............................
-
Page 4: Symbol Description
SYMBOL DESCRIPTION MONROC Hazard intensity levels There are three different levels of hazard intensity, identified by signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Observe the statements to ensure safety, performance, prevent injury and machine damage. -
Page 5: General
GENERAL MONROC Introduction Thank you for choosing a MARKUS espresso machine. We hope you enjoy it ! Read the user manual before using the machine. Keep this manual close to hand for future This manual contains important instructions on reference. If damaged or lost, request a copy intended and safe use of the coffee machine. -
Page 6: Precautions
GENERAL MONROC In case of emergency, (e.g. the machine catches to three units of the same model. Do not place fire or becomes unusually hot or noisy), other heavier packages on top of the box. disconnect the power immediately and close The machine is likely to be exposed to the water inlet tap. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MONROC MONROC 1GR MODEL SPECIFICATIONS MINI 1GR CONTROL MINI 1GR PULSER Steam wand 1 unit Hot water outlet 1 unit Temperature control PID regulation Pressure switch Temperature control by group Programmed via display Dispensing system for tall cups... -
Page 8: Monroc 2Gr
TECHNICAL SPECIFICATIONS MONROC MONROC 2GR MODEL SPECIFICATIONS PULSER 2GR CONTROL 2GR EBEE-D32B-12AI Machine model, Standard 220-240V 1N~ 3350W EBEE-D32B-22AI Machine model, Take Away 220-240V 1N~ 3350W Steam wand 1 unit Hot water outlet 1 unit Temperature control Pressure switch PID regulation... -
Page 9: Overview Of Components
OVERVIEW OF COMPONENTS MONROC Front view of the machine MONROC 1GR... -
Page 10: Monroc Control 2Gr
OVERVIEW OF COMPONENTS MONROC Front view of the machine MONROC control 2GR Dispense buttons Boiler Water tap manometer Steam tap Power switch Steam wand Element light Porta-filter Hot water Brewing Brewing outlet group group MONROC pulser 2GR Boiler Water tap... -
Page 11: Dimension Sketch
DIMENSION SKETCH MONROC MONROC 2GR Model D(Min) D(Max) MONROC control 2Gr 480 mm 660 mm 540 mm 74 mm 124 mm MONROC pulser 2Gr 480 mm 660 mm 540 mm 74 mm 124 mm... -
Page 12: Transport
TRANSPORT MONROC Packaging The machine is shipped in a unique carton box which uses expanded polystyrene paddings. The machine box is provided with conventional symbols that can be perfectly visible during the handling and storage tasks. The machine box must stay in a vertical position during the transport. Do not tip or try to place the box tilted sideways in any way. -
Page 13: Electrical Installation
INSTALLATION MONROC Electrical installation The coffee machine should only be connected to the power supply by qualified personnel. The following safety instructions should be followed at all times: Check that the electrical specifications on the ratings plate match the specifications of the power supply at the point of installation. -
Page 14: Water Connection
INSTALLATION MONROC Water connection The Installation of the machine to a water mains connection must be done by a qualified person. Rinse around 20 liters of water from the main water supply before connecting the machine to the water connection. -
Page 15: The Porta-Filter Set
INSTALLATION MONROC The porta-filter set Lock-in spring (filter basket) Filter basket Placing porta-filter spring Porta-filter and filter basket for single espresso (7g) Porta-filter & filter basket for double espresso (14g) Inserting the porta-filter in the group Align the porta-filter's two lateral Insert the porta-filter and rotate it anti-clockwise until flanges with the slots in the group. -
Page 16: Operation
OPERATION MONROC Espresso brewing Important: Always keep the porta-filter inserted in the group to keep it warm. This is very important to maintain an optimal temperature to get the best espresso. Unlock and remove the porta-filter Fill the filter basket of the from the group head. -
Page 17: Steaming And Frothing Milk
OPERATION MONROC Steaming and frothing milk Steaming Frothing Place the steam wand over the drip Immerse the steam wand into the jug containing the tray and open the steam tap for a few milk, make sure the wand tip is submerged. -
Page 18: Hot Water Dispensing
OPERATION MONROC Hot water dispensing Machines with manual water tap Place a jug (or similar) under the hot water outlet Open the hot water tap. Close the tap as soon as the machine has dispensed the desired amount of water. -
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE MONROC Coffee machine cleaning Important: To obtain the best efficiency, quality and performance of the machine, you should always follow the cleaning and care instructions provided in this manual. Turn off the power switch when cleaning the exterior of the machine. -
Page 20: Cleaning The Brewing Group And Porta-Filter
CLEANING AND MAINTENANCE MONROC Cleaning the Brewing group and porta-filter Unlock and remove the porta-filter from the group head. Place the cleaning membrane in the filter basket. Fill the filter basket with professional cleaning powder for espresso coffee machines. Lock the porta-filter into the group head. -
Page 21: Cleaning The Gasket And Shower Plate
CLEANING AND MAINTENANCE MONROC Cleaning the gasket and shower plate Cleaning the gasket When placing the porta-filter filled with grinded coffee into the brewing group, left overs will accumulate in the closing surface. If these remains are excessive it can prevent a good closing between the porta-filter and the group head.Moreover, these remains can even block the dispensing of water... -
Page 22: Additional Handling Of The Machine
CLEANING AND MAINTENANCE MONROC Additional handling of the machine Important: Avoid placing wet cups directly on the cup shelf, it may drip into the machine and cause machine damage. Remove and insert the porta-filter gently. Never use excessive force to try to close the porta-filter. -
Page 23: Programming
PROGRAMMING MONROC Buttons functions Here is some of the additional functions that the electronics offers: Volume control of four different espresso drinks per brewing group. Time-controlled hot water dispensing. (if available) Automatic filling and level control of the boiler. Automatic switch off of the heating element if not enough water. -
Page 24: Programming The Coffee Dosage
PROGRAMMING MONROC Programming the coffee dosage This section explains how to program the doses dispensed automatically by the drink buttons. Important: Use a porta-filter filled with fresh coffee for every new dose you program. On machines not equipped with a display, hold down the Continuous Dispensing button for 4 seconds. -
Page 25: Programming Using The Display
PROGRAMMING USING THE DISPLAY MONROC Machine status Machines equipped with a display include the following additional functions: Automatic daily on/off timer (stand-by function). Clock settings (current time and date). Promotional display. Number of coffees/infusions dispensed. Digital boiler-temperature display and control. -
Page 26: Accessing The Second Menu Level
PROGRAMMING USING THE DISPLAY MONROC Accessing the second menu level Doses setting With the machine on, press the Continuous Dispensing button Select within 30s the Left-hand drink buttons and hold it down (for over 8 seconds) until the dose-programming menu is displayed. All the drink buttons lights fig. -
Page 27: Auto On/Off
PROGRAMMING USING THE DISPLAY MONROC Auto On/Off After accepting the changes made in the “set clock” menu, pressing the 2 Auto On/Off Short Espressos button accesses the coffee machine’s auto on/off hh.mm programming menu (see fig. 09). fig. 9 To change the auto on/off time, increase/decrease the values (hours) using... -
Page 28: Multiboiler Models Temperature Control
MULTIBOILER MODELS TEMPERATURE CONTROL MONROC Digital thermostat status If you have a multi-boiler machine, it will have a digital temperature control which is independent for each brewing group. There are following types of multi-boiler machines: 2 groups with 3 boilers. -
Page 29: Adjusting Group Temperature
MULTIBOILER MODELS TEMPERATURE CONTROL MONROC Adjusting group temperature To adjust the temperature for each group, proceed as follows: With the main switch on and the thermostat in normal mode: Press briefly the button “ ”. The thermostat will show the message “PrG”... -
Page 30: Messages And Alarms
MESSAGES AND ALARMS MONROC Flow meter Fault in flow meter X / Gr. X Flow fault detected in counter X Time-out alarm Check that the machine is receiving water. Boiler filling up Probe unconnect Temperature sensor fault Service the machine. -
Page 31: Troubleshooting
TROUBLESHOOTING MONROC The following checks can be carried out by users once the machine has been turned off and disconnected from the power supply. For all other non-specified machine faults, disconnect the machine from the power supply and immediately contact authorised and qualified service personnel. - Page 32 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
