Expobar ZIRCON MINI 1GR CONTROL Service Manual page 82

EXPLODED VIEWS
Water supply and drainage set_ZIRCON mini pulser 1Gr

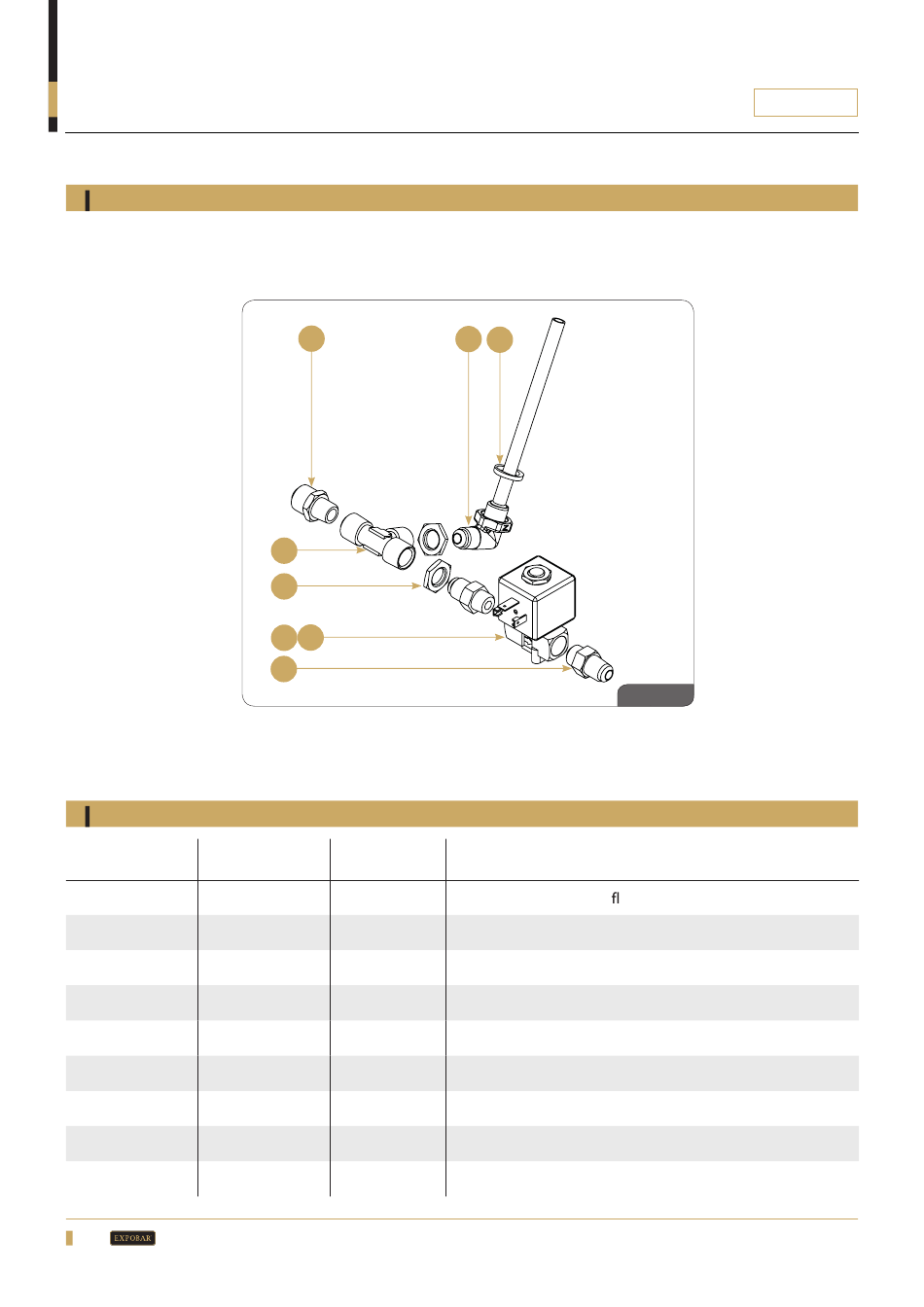

Drawing
Spare parts list
POS.
01
02
03
04
05
06
07
08
--
82
R
03
04
05
06 07
08
PCS Part No.
1 C50010020
1 C30000220
1 C30000002
1 C30000000
2 C30100010
1 C60000100
1 C60000103
2 C30000510
- ESC00094
02 01
ESC00094
Description
13.2*18.2*2.5 1/4 Te on Gasket
Cone Injector 1/4
Buttress 1/4-3/8 Mini
T H-H-H-1/4 Mini
Hexagonal Nut 1/4 Pressostat
1/4 X 1/4 Electrovalve Parker 220V
1/4 X 1/4 Electrovalve Parker 120V
Conical Adaptor 1/4*1/4 Electron
Laberinto Minipulser 1 Gr
ZIRCON
