14

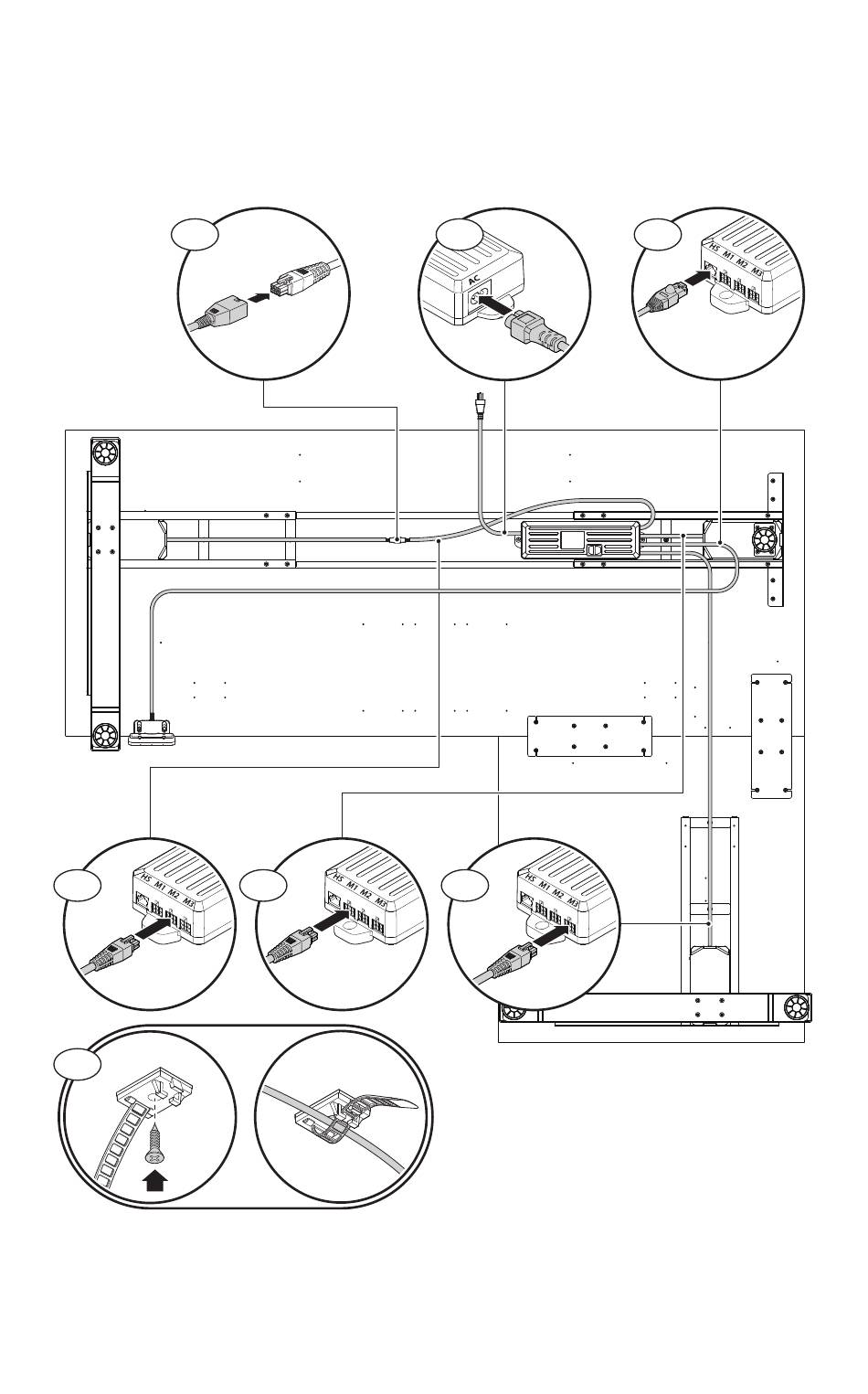

Plug the Hand Switch into the Control Box (14a). Connect the three legs to the Control Box
(10b), using the Connecting Cable (14c) for the leg furthest away from the Control Box. Plug
the Power Cord into the Control Box (14d). .
Note: As an option, use the provided (15) Cable Ties to secure cables to underside of
worksurface (10e), with either double sided tape or the (15) #8-3/4"Flat Head Wood Screws.
14b
14e
15
Flip your table right side up and plug into outlet. Reset the desk per instructions in following
section.
YOU MUST RESET THE DESK BEFORE USE. FOLLOW INSTRUCTIONS ON INITIAL SETUP/
42
14c
14b
RESET UNDER HAND SWITCH (SEE PG.43or 44)
14d
14b
14a
