Summary of Contents for Humanscale efloat one

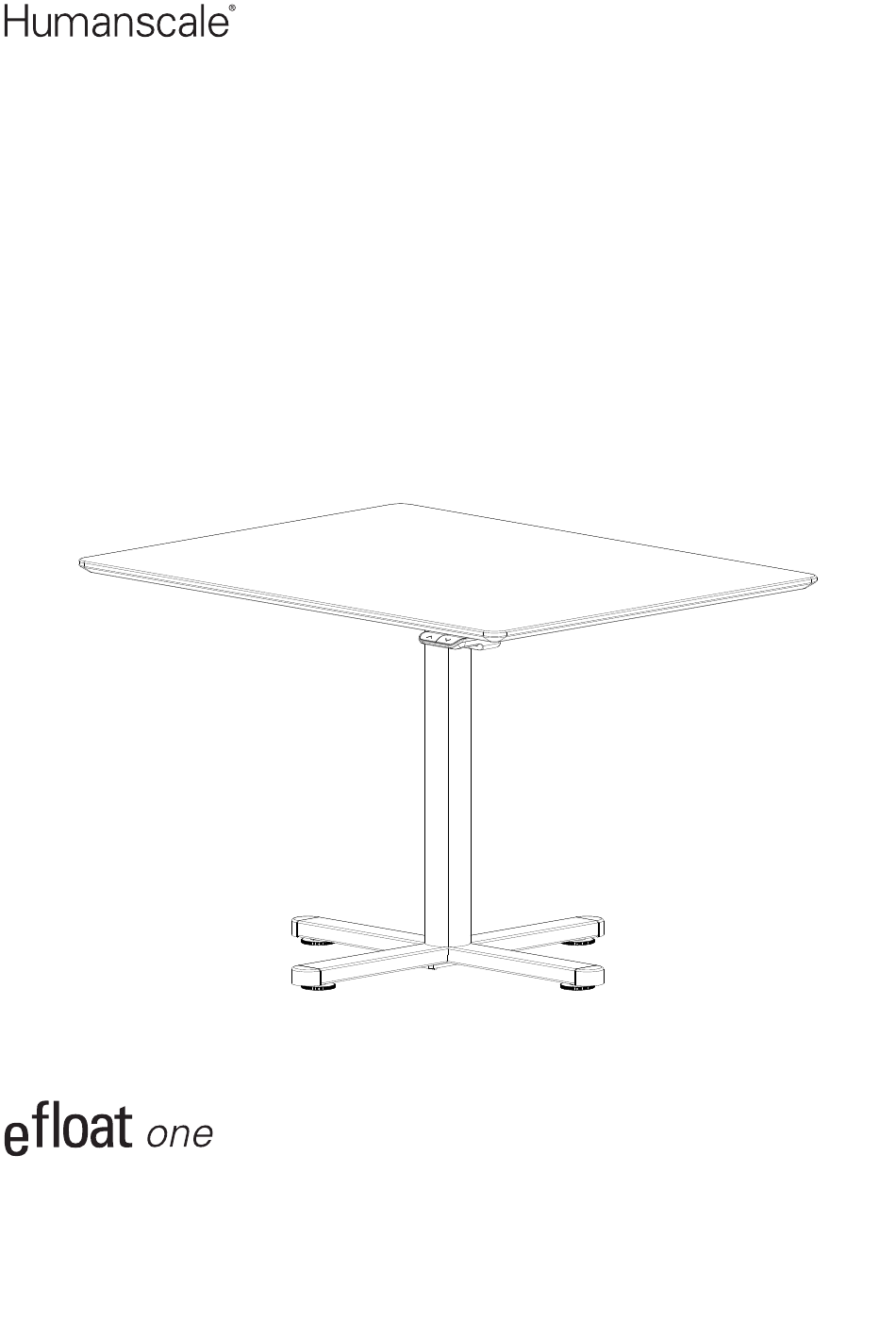

- Page 1 Assembly Instructions North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +8522581 0570...
- Page 2 DESIGNING HEALTHIER WORKPLACES...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ���������������������������������������������������������������������������������� 4 Before Getting Started ��������������������������������������������������������������������������������������������� 6 Parts Included ���������������������������������������������������������������������������������������������������������� 6 Assembly Instructions ��������������������������������������������������������������������������������������������� 8 Hand Switch ���������� ����������������������������������������������������������������������������������������������� 10 Trouble Shooting ���� ����������������������������������������������������������������������������������������������� 11 Technical Data �������� ����������������������������������������������������������������������������������������������� 11... -
Page 4: Important Safety Instructions
Important Safety Instructions WHEN USING AN ELECTRICAL FURNISHING, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING). HUMANSCALE CANNOT BE HELD LIABLE FOR INJURY OR DAMAGE CAUSED BY NON-COMPLIANCE WITH THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS AND PASS THEM ON TO ANY FUTURE USER. - Page 5 • Make sure no obstacles are in the desk’s path and that the desk is not touching walls or neighboring objects� • Items taller than 20” in height should not be placed or stored under the desk� • Keep Table Frame dry� Keep all electrical components away from water and high humidity� Do not spray cleaning solutions directly onto table frame�...
-
Page 6: Before Getting Started
Before Getting Started • If using a power drill, use a low torque setting� • Do assemble product on a protective surface� • 2 or more people maybe required to maneuver the table� • After assembly the table will need to have initial set up/reset performed before table can be used�... - Page 7 Hardware Included (4) M6 X 14 Machine Screws (4) M6 X 10 Machine Screws (6) ST5 X 20 Wood Screws (4) M6 X 40 Machine Screws (2) ST5 X 18 Wood Screws (4) ST3�5 X 16 Wood Screws (5) ST5 X 16 Wood Screws...
-
Page 8: Assembly Instructions
Assembly Instructions Attach the Wing Brackets to Leg Column using the (4) M4 X 10 screws and 4mm Allen Key� Secure the Leg to the worksurface using the (6) ST5 X 20mm screws, ensuring that the cords are at the rear of the worksurface� FRONT Secure the feet to the Leg�... - Page 9 Secure the hand switch to the worksurface in your desired location using the (2) ST5 X 18, screw along the front edge of worksurface� Pilot holes are positioned on the left/right hand side of the worksurface in our recommended location(s)� Secure the Power Supply to the worksurface in your desired location using the provided Cable Straps�...
-
Page 10: Hand Switch
Hand Switch DOWN Initial Setup / Reset IMPORTANT: You must RESET the desk prior to use. 1� Press the DOWN button, moving the desk to its lowest position, then release� 2� Hold the DOWN button while the desk clicks lower, slightly rises and stops� Your desk is now ready to use�... -
Page 11: Trouble Shooting
Trouble Shooting Error Solution Ensure all cords are fully secured and the outlet your table is plugged into has Table does not move power� Table moves at a Reset table� slow rate Ensure all cables are fully secured� Follow the steps to Reset your table� If you Hand Switch LED Red are still encountering an error please call customer care�... - Page 12 For our terms and conditions please go to https://www�humanscale�com/about/legal-information/terms-conditions�cfm © 2021 Humanscale Corporation� The text and artwork are copyrighted materials� All rights reserved� The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries�...
