Humanscale efloat next Assembly Instructions Manual page 35

A - Humanscale Worksurface

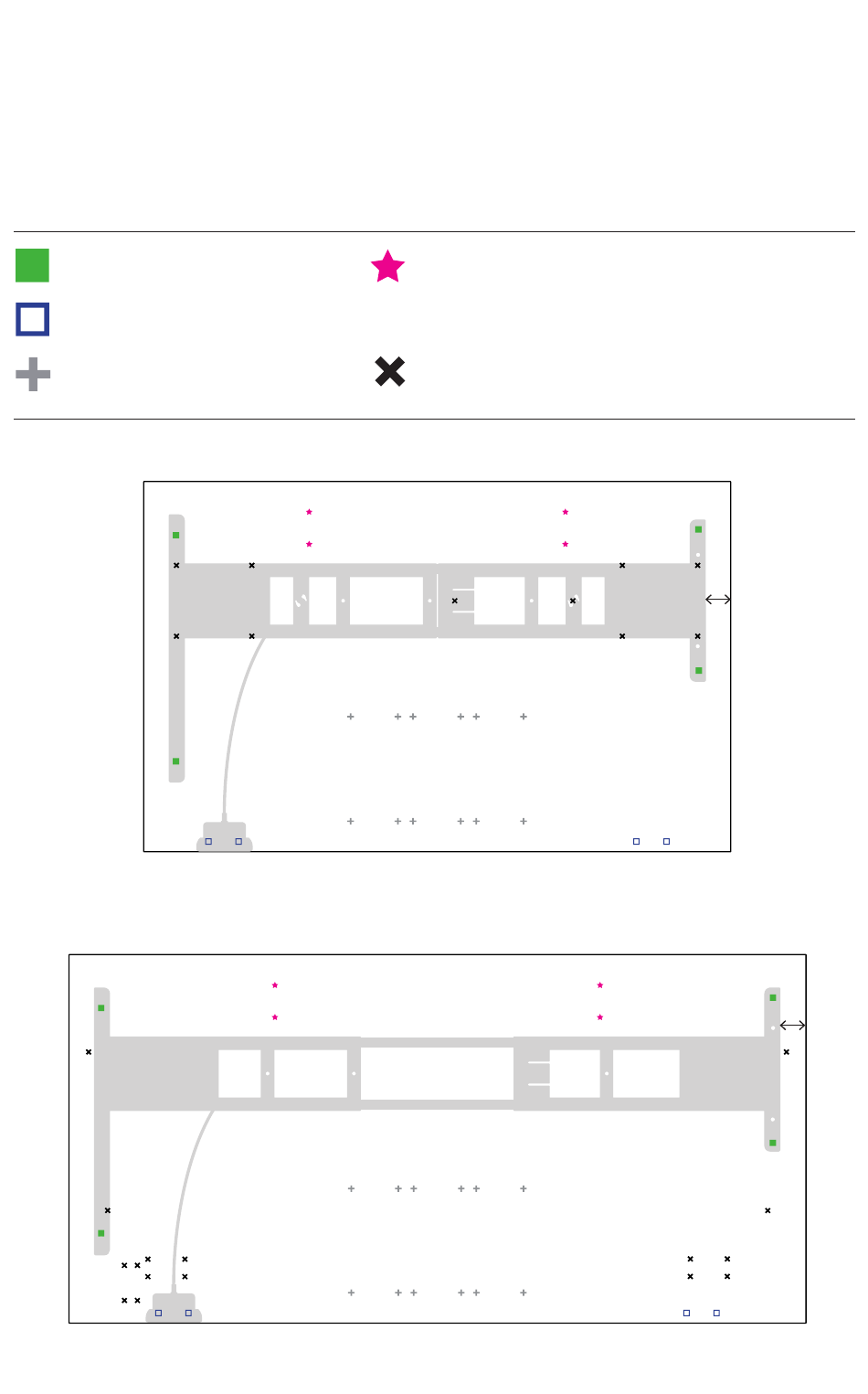

If using a Humanscale Worksurface, align the frame to the following pilot holes highlighted below.
Pilot holes are only included for the outer corner holes of the Left and Right Wing brackets. The
middle bracket will need to be measured from the edge of the worksurface.
Pilot Note: Only the outer corner pilot holes are included for alignment.
Legend
eFloat Next Base
eFloat Next Hand Switch
Keyboard Tray
46" Wide Worksurface
52-70" Wide Worksurfaces
NeatTech Small for a 48"-54" wide worksurfaces
NeatTech Large for a 60"-72" wide worksurfaces
(30" Deep Worksurfaces only)
Not applicable with this table
FRONT
FRONT
2"
2"
35
