Assembly Instructions
North America: +1 800 400 0625
Europe: +353 (0)1 858 0910
Asia Pacific: +8522581 0570

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efloat GO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humanscale efloat GO

Summary of Contents for Humanscale efloat GO

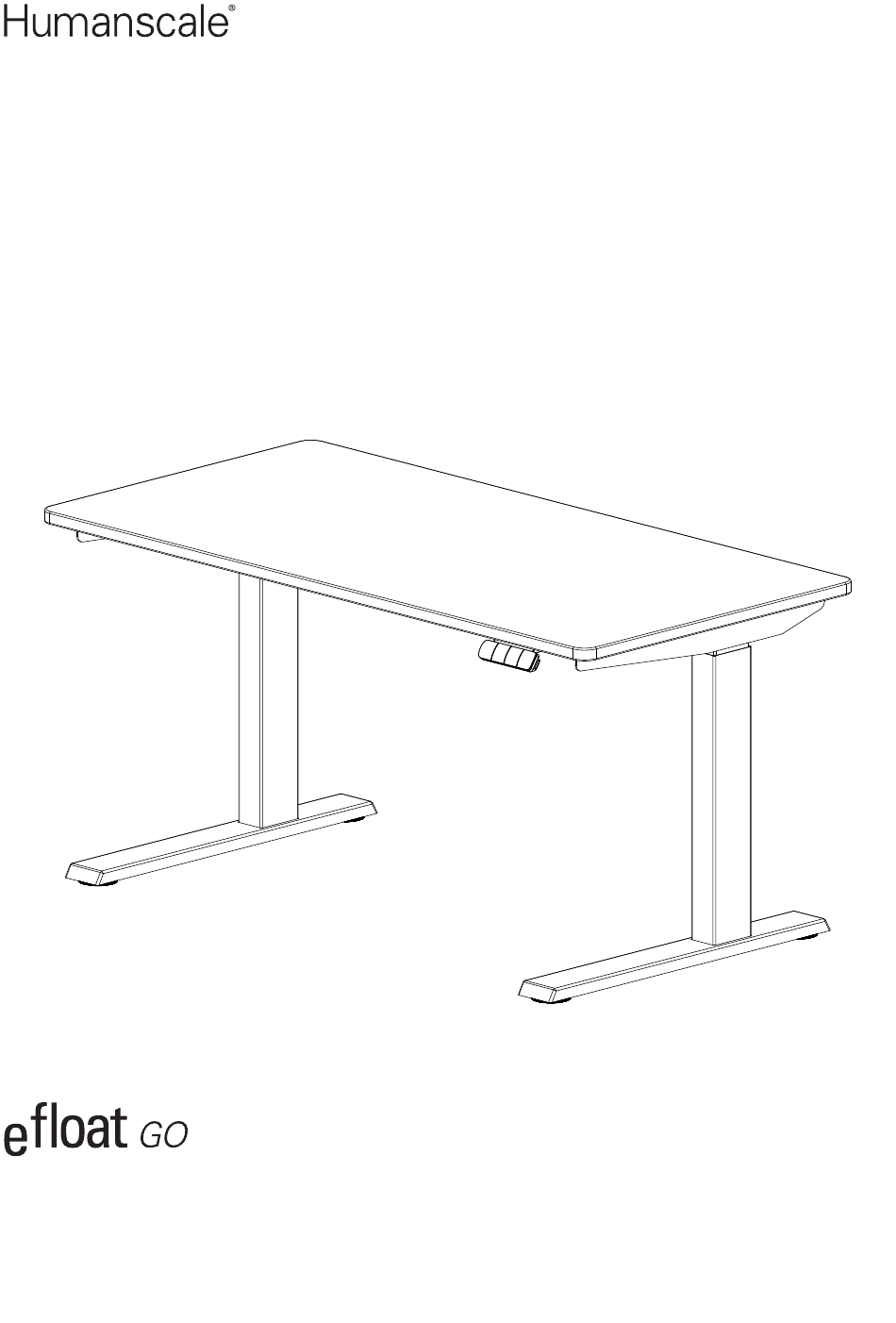

  • Page 1 Assembly Instructions North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Asia Pacific: +8522581 0570...
  • Page 2 DESIGNING HEALTHIER WORKPLACES...

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions ���������������������������������������������������������������������������������� 4 Before Getting Started ��������������������������������������������������������������������������������������������� 6 Parts Included ���������������������������������������������������������������������������������������������������������� 6 Assembly Instructions Two Column (Standard/Extended Range) ��������������������������������������������������� 8 Two Column Beamless (Standard/Extended Range) �������������������������������� 13 Hand Switch Initial Setup / Reset ����������������������������������������������������������������������������������� 16 Programming ��������������������������������������������������������������������������������������������...

  • Page 4: Important Safety Instructions

    Important Safety Instructions WHEN USING AN ELECTRICAL FURNISHING, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING). HUMANSCALE CANNOT BE HELD LIABLE FOR INJURY OR DAMAGE CAUSED BY NON-COMPLIANCE WITH THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS AND PASS THEM ON TO ANY FUTURE USER.
  • Page 5 • Do not exceed maximum load including weight of worksurface of 250lbs (113kg) for two column kits and 350lbs (158kg) for three column kits� • For loading, always put heavier items in the center and distribute the load� • Do not sit or stand on table� USE CARE WHEN OPERATING DESK: •...

  • Page 6: Before Getting Started

    Before Getting Started • If using a power drill, use a low torque setting� • Do assemble product on a protective surface� • 2 or more people may be required to maneuver the table� • After assembly, the table will need to have an initial set up/reset performed before table can be used�...
  • Page 7 Two Column Beamless (Standard/Extended Range) (2) Feet (2) Brackets (2) Legs Universal Worksurface (CONFIGURATION SPECIFIC, PACKAGED Power Supply Hand Switch Control Box SEPARATELY) Connecting Cable (10) Cable Ties (10) Adhesive Pads 4mm Allen Key Hardware Included (8) M6 x 10 Machine Screw (12) ST5 x 20 wood screws (8) M6 x 14 machine screws (2) ST4 X 16 Wood Screws...

  • Page 8: Assembly Instructions

    Assembly Instructions Two Column (Standard/Extended Range) Insert the 2 Wing Brackets into either side of the Frame� Ensure the buckle is raised� Raise the Leg perpendicular to the frame, placing steadily into pocket� Insert the Assembly Handle into the buckle and rotate until handle is in line with frame� Ensure cables are clear of any moving parts�...
  • Page 9 Place your worksurface upside down on a protective surface� Lift and place the frame on top of the worksurface� Adjust the width and position the frame on the worksurface per the following sections: A - Humanscale Universal Worksurface B - Using Your Own Work-surface�...
  • Page 10 A - Humanscale Universal Worksurface If using one of our Universal Worksurfaces, align the frame to the following pilot holes highlighted below� Note: Only the four outer corner pilot holes are included for alignment� FRONT HS NEAT TECH (ACCESSORY) EFLOAT GO FRAME HOLES HAND SWITCH PILOT HOLES L&R...
  • Page 11 Using the (9) ST5 X 20 Wood screws secure the frame to the work surface� If using a power drill ensure it is set to low torque� If using a Humanscale Universal Worksurface please note only the four outer pilot holes are included to assist in aligning your worksurface to table base�...
  • Page 12 Secure the hand switch to the worksurface in your desired location using the (2) ST4 X 16, screw along the front edge of worksurface� If using a Humanscale Universal Worksurface, Pilot holes are positioned on the left/right hand side of the worksurface in our recommended location(s)�...

  • Page 13: Two Column Beamless (Standard/Extended Range)

    Place your worksurface upside down on a protective surface� Lift and place the legs on top of the worksurface� Position the leg assembly on the worksurface per the following sections: A - Humanscale Universal Worksurface� B - Using Your Own Work-surface� Lift and place the legs on top of the worksurface� Position A - Humanscale Universal Worksurface If using one of our Universal Worksurfaces, align the legs to the following pilot holes highlighted below�...
  • Page 14 B - Your Own Worksurface If using your own top, locate the legs using the measurements listed below� Do not use tops larger than the size noted in the Important Safety Instructions section� FRONT MAX DISTANCE 54” WORKSURFACE DEPTH 23” 12”...
  • Page 15 Secure the hand switch to the worksurface in your desired location using the (2) ST4 X 16, screw along the front edge of worksurface� If using a Humanscale Universal Worksurface, Pilot holes are positioned on the left/right hand side of the worksurface in our recommended location(s)�...

  • Page 16: Hand Switch

    Hand Switch 29.8 LED DISPLAY UP/DOWN PRESETS MEMORY Initial Setup / Reset IMPORTANT: You must RESET the desk before use� 1� Press the DOWN button, moving the desk to its lowest position, then release� 2� Hold the DOWN button until again, the LED display reads “ “...
  • Page 17 5� Hold the DOWN button down while the desk lowers a little bit more, slightly rises and stops� One-Touch / Constant-Touch Follow the steps below to change between One-Touch and Constant - Touch� One-Touch requires only a single touch of the “1, 2 or 3” button to move the worksurface to a preset memory location� One- Touch is the default setting.
  • Page 18 automatically return to the selected height� The new upper limit is now set� To Set the LOWER-Limit Position: 1� Use the UP /DOWN buttons to move the base to the desired minimum-height position� 2� Press the “M” button� 3� Press the DOWN button and release� The LED display will flash “S -” � 4�...

  • Page 19: Troubleshooting

    Troubleshooting Error Solution Ensure all cords are fully secured and the outlet your table is plugged into has Table does not move power� Table moves at a Reset table� slow rate Hand Switch Ensure all cables are fully secured� Follow the steps to Reset your table� If you Error Codes: are still encountering an error please call customer care�...
  • Page 20 For our terms and conditions please go to https://www�humanscale�com/about/legal-information/terms-conditions�cfm © 2021 Humanscale Corporation� The text and artwork are copyrighted materials� All rights reserved� The Humanscale mark and logo are trademarks of Humanscale Corporation and are registered in the United States and certain other countries�...
