Labels
Overview
The 4100 Programming Unit is used to program the coder devices so they are seen by the 4100
panel as Style B Monitor ZAM (MBZAM) points of any type (Alarm, Waterflow, and so on). The
Programming Unit is used to enter any desired custom labels for these points. It is recommended
that the custom label reflect each device's code and/or physical location, as this custom label will
be displayed on the operator Interface Panel LCD should an Alarm or Trouble Condition occur.
Each decoder module is supplied with a set of labels that identify both the decoder's place in the
system, and each coded station's assigned MAPNET II address. A coded station usually has a
metal plate affixed to it which is stamped with the station code. Place the adhesive MAPNET II
address label next to this metal plate. Figure 13 shows the various labels associated with the
decoder.
Note: To match the Operator Interface Panel display, the Channel 10 label reads "MO".

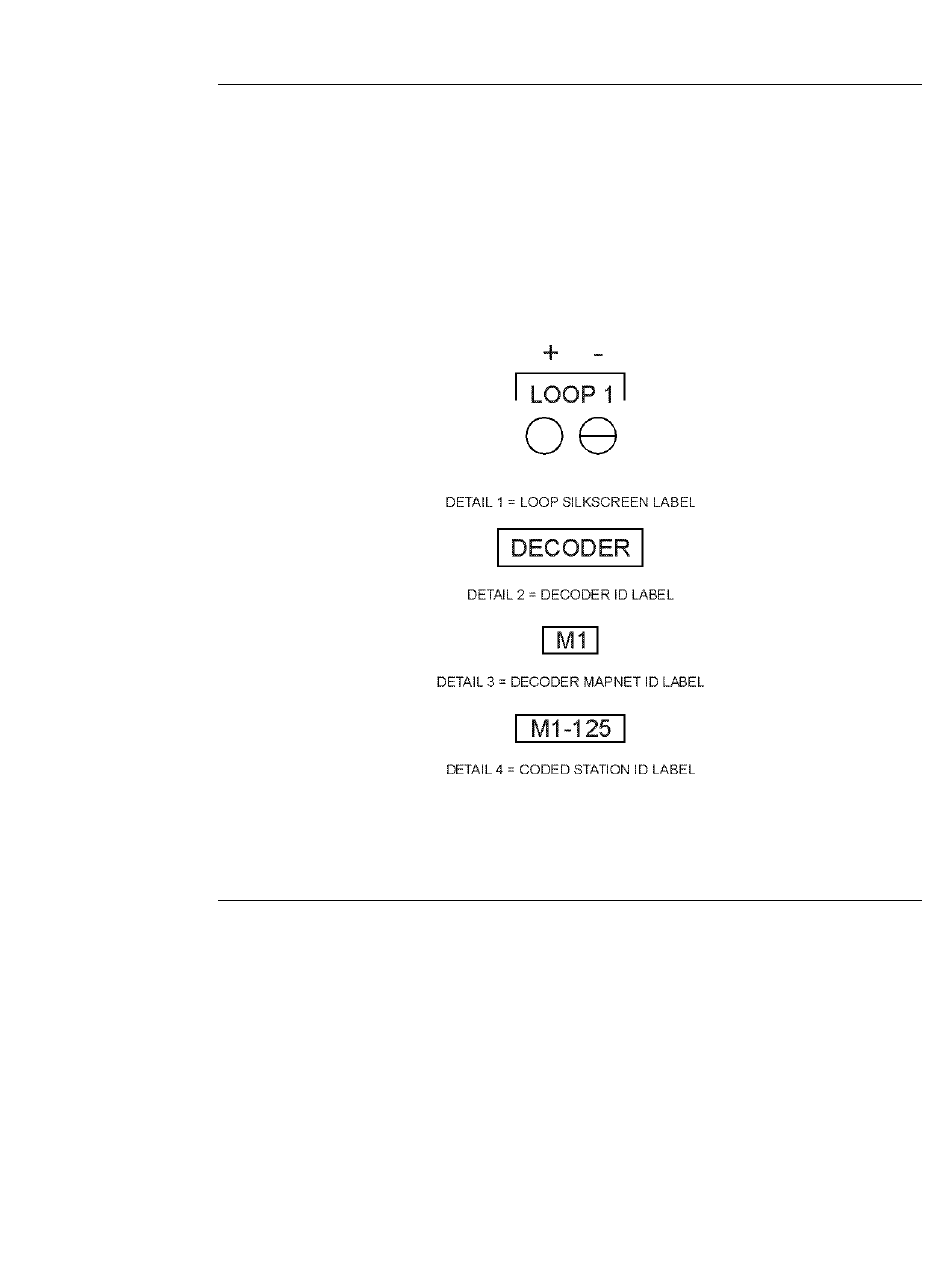

Figure 13. Decoder Labels
