Simplex 4100-0136 Installation Instructions Manual page 17

Wiring Guidelines,
Power-Limited
Guidelines
CONDUIT ENTRANCE
FOR POWER-LIMITED
Continued
Make sure these guidelines are accounted for before wiring for power-limited systems:
•
Non-power limited field wiring (AC power, batteries, City connection) must be installed
and routed in the shaded areas shown in Figure 8.
•
Power-limited field wiring must be installed and routed in the non-shaded areas shown in
Figure 8, with the exception of City wiring.
•
Excess slack should be kept to a minimum inside the back box enclosure. The wiring
should be neatly dressed and bundled together using the wire ties provided with the
equipment. Anchor power-limited wiring to tie points, as shown in Figure 8.
WIRING
POWER-LIMITED
WIRING
•
Tie the wiring located between bays to the internal wiring troughs, if applicable.
•
When powering remote units or switching power through relay contacts, power for these
circuits must be provided by a UPS-style power supply, the 4100-1108 Power Supply
(8A), or a power-limited power supply that listed for fire-protective signaling use.

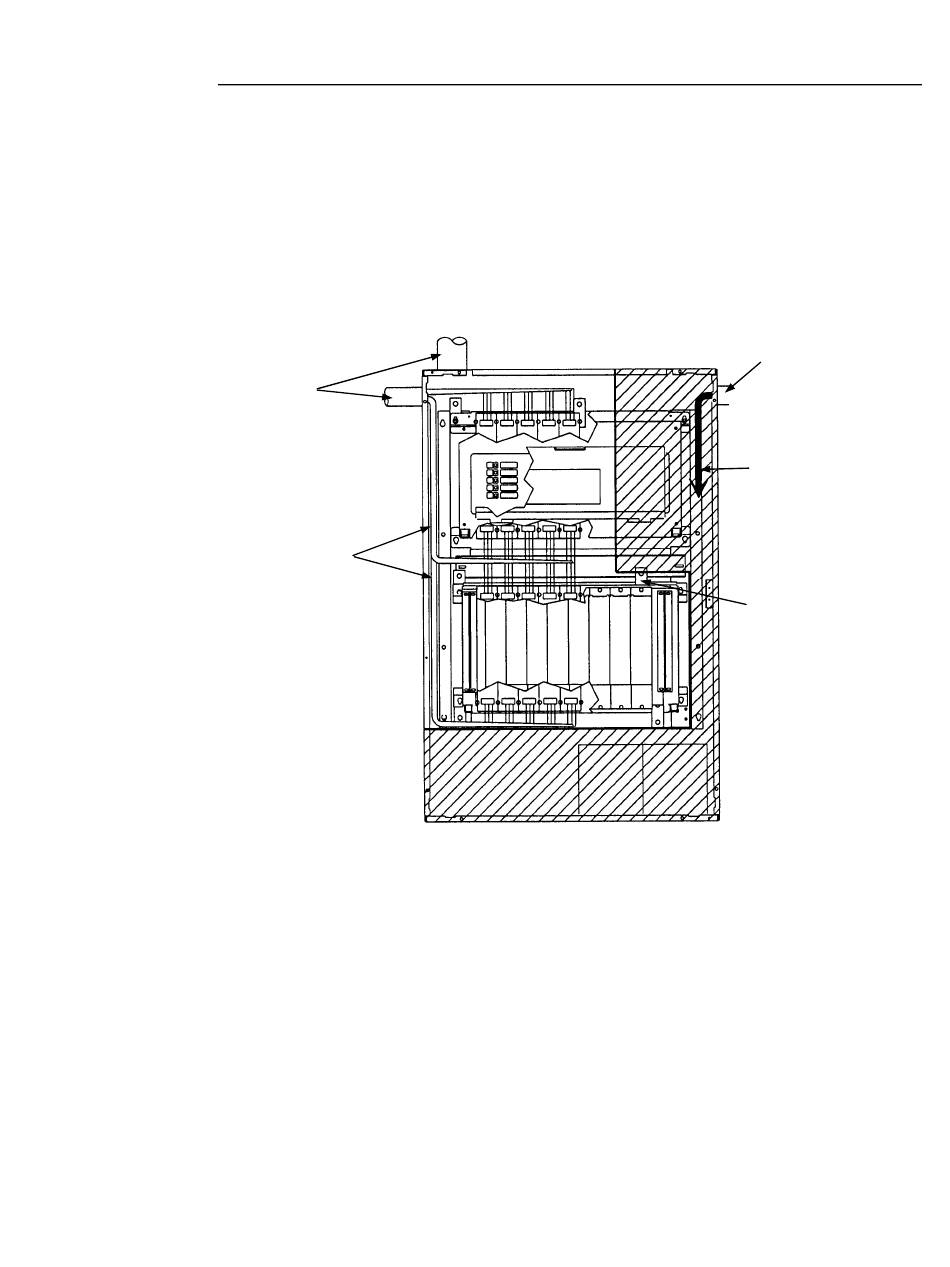

Figure 8. Power-Limited Wiring
17
CONDUIT ENTRANCE
FOR NON-POWER
LIMITED WIRING
NON-POWER LIMITED
WIRING
TIE POINT
(LOCATION MAY VARY)
