Wiring Guidelines,
General Guidelines
Continued
•
Contacts must be dry (no external voltage present) and suitable for use at 28.5 VDC,
8.8 mA supervisory, and at 75 mA when shorted across the initiating circuit.
•
While only three devices are shown in the reference diagrams (Figure 7), the maximum
number allowed is determined by circuit resistance and decoding requirements.
•
Exact wiring depends on the specific coding device in the circuit. Inspect the device and/or
the device wiring instructions for proper connections.

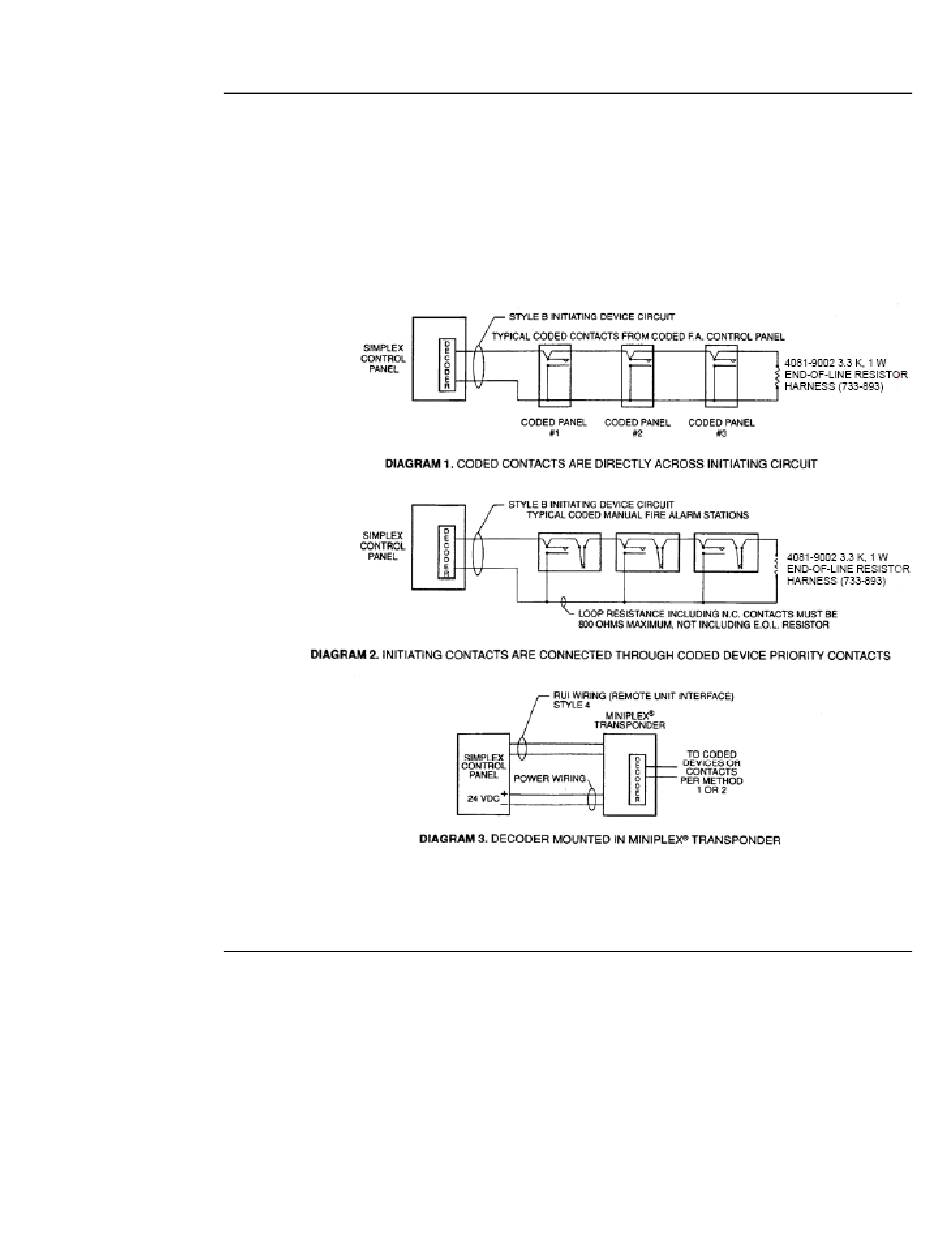

Figure 7. Decoder Installation Reference Diagrams
16
Continued on next page
