Configuring the Module,
Setting the Device
Address and Baud
Rate
4100 Comm. Baud Rate.
Continued
SW8
The decoder takes two addresses on the 4100 bus. The first address is set with the decoder's 8-bit
base address DIP switch, SW8. The second address is automatically set one higher than the first
address. All coded station alarm and trouble messages are reported to the panel as MAPNET II
device states.
Switch SW8 on the 4100 decoder is a bank of eight DIP switches. From left to right (see Figure
11, below) these switches are designated as SW1-1 through SW1-8. The function of these
switches is as follows:
•
SW8-1. This switch sets the baud rate for the internal 4100 communications line running
between the card and the 4100 CPU. Set this switch to ON.
•
SW8-2 through SW8-8. These switches set the card's address within the 4100 FACP.
Refer to Table 2 for a complete list of the switch settings for all of the possible card addresses.
Note: You must set these switches to the value assigned to the card by the 4100
Programmer.

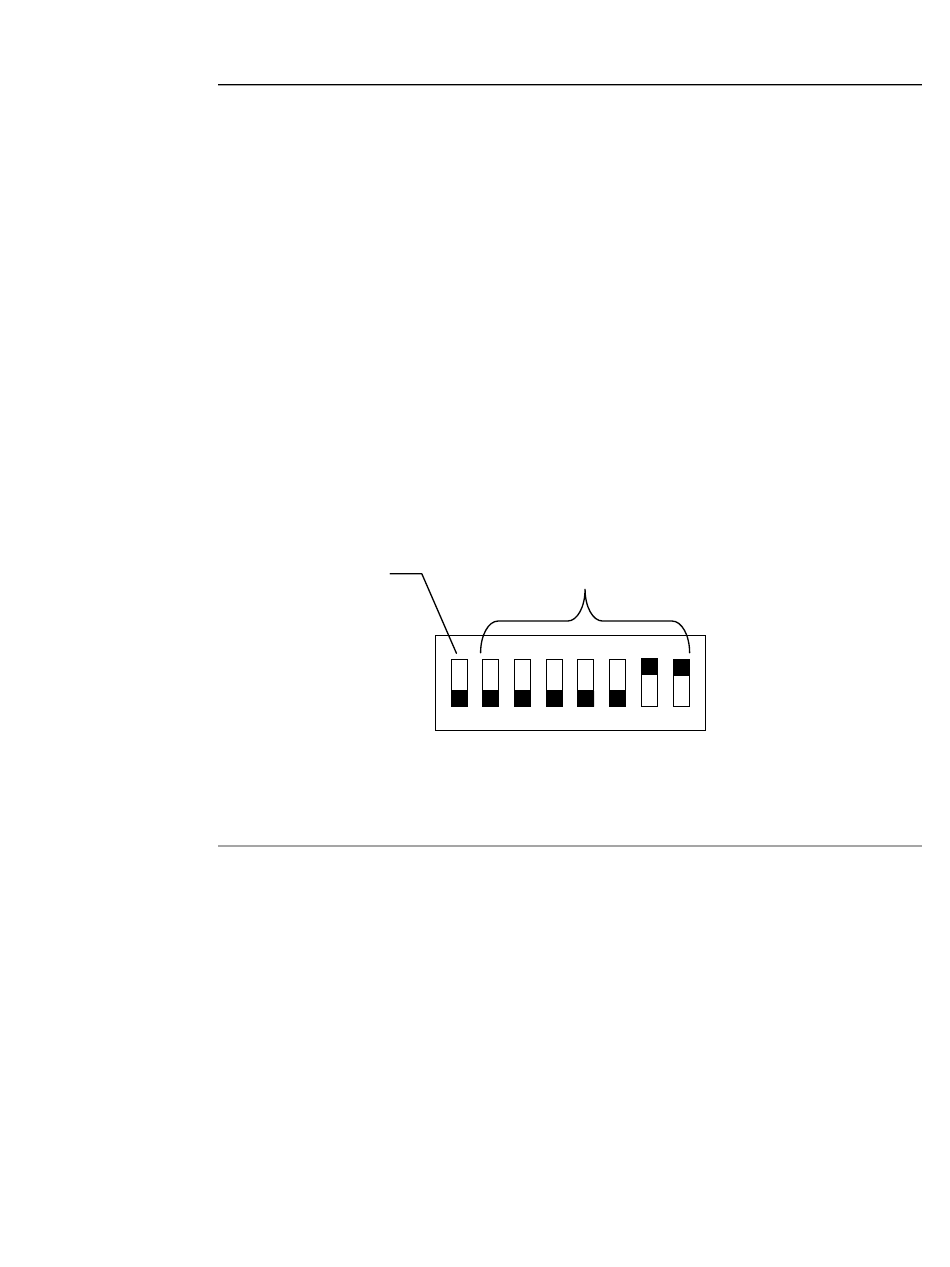

FigureTag FD4-037-01
Switch (SW8-1)
Must Be Set to ON
OFF
ON
DIP Switches SW8-2 through
SW8-8 set the Card Address.
Figure shows an Address of 3.
1
2
3
4
5
6
Figure 6. DIP Switch SW8
11
7
8
Continued on next page
