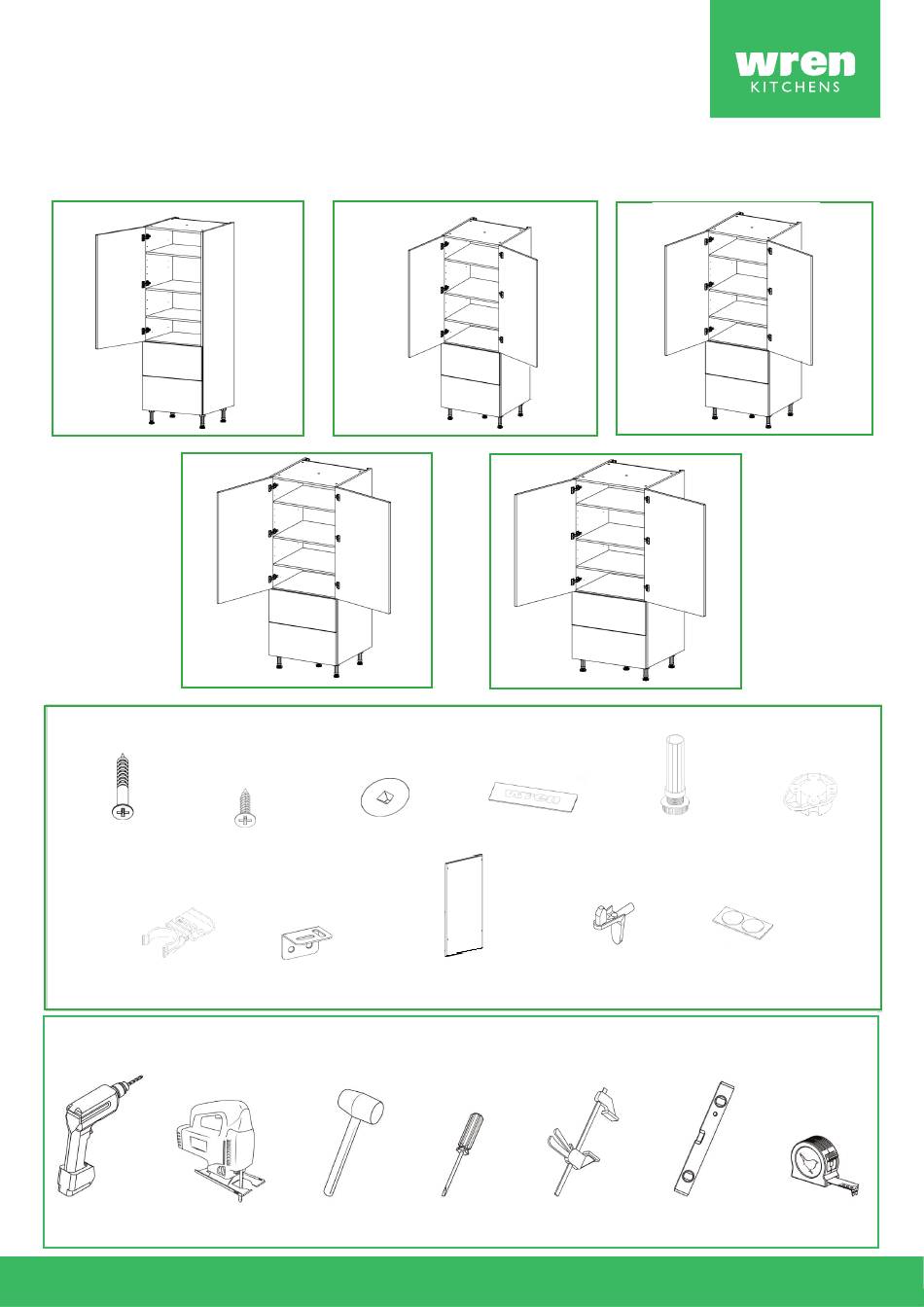

I N F I N I T Y P L U S
Tower Unit

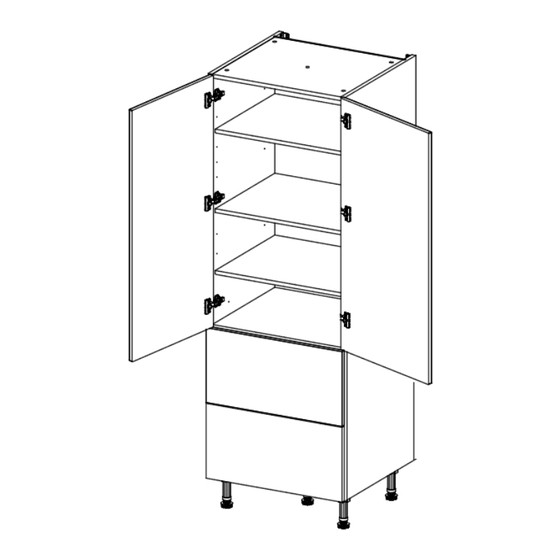

600- 1000 Tower (Door, Drawer, Solid Top, 5 Legs) - Fitting Guide
600
900
Units Parts
6X30mm
screws
2x Plinth
Clips
Tools Required
Drill
Jigsaw
700
18x Cover
30x15mm
Caps
screws
2x L Bracket
Mallet
1000
4x Drawer Cover
Cap
3x Shelf
Clamp
Screwdriver
800
5x Legs
5x Door Buffer
12x Shelf
Pegs
Spirit Level
5x Leg
Brackets
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens INFINITY PLUS 600
Summary of Contents for Wren Kitchens INFINITY PLUS 600
- Page 1 I N F I N I T Y P L U S Tower Unit 600- 1000 Tower (Door, Drawer, Solid Top, 5 Legs) - Fitting Guide 1000 Units Parts 5x Leg 5x Legs 4x Drawer Cover Brackets 18x Cover 6X30mm 30x15mm Caps screws...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brakets into place with 4x15mm screws per bracket.
- Page 4 Securing the L-bracket Secure each of the L-brackets to the upper rear of the unit using 2x15mm screws at each side. Notching out the side panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out.
- Page 5 No screws or wall plugs are provided for attaching the unit to the wall. This is due to variations in wall construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Attaching the base unit to the wall Fix the unit to the wall through the L-brackets as shown in the image (these fixings are not provided).
- Page 6 Inserting the drawers Slide the drawer onto the runners, make sure the runner mechanism and the drawer sides’ groove line up. Push the drawer back into the unit after it has been positioned on the runners; you should hear a click. Attaching the frontal The frontal should be re-attached to the unit by clipping the hinges onto the hinge plates.
- Page 7 Adjusting the drawer frontal horizontally Use the fixing clips, which are found under the drawer’s front, to adjust the drawers. Step 1 - Press the fixing clips half way to meet the runners on the underside of the drawer. Step 2 - Slide the drawer to the left or right to adjust.
- Page 8 Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right. Point 2 - Will adjust the frontals in and out. To move the hinges up or down, loosen the screws A and B.
